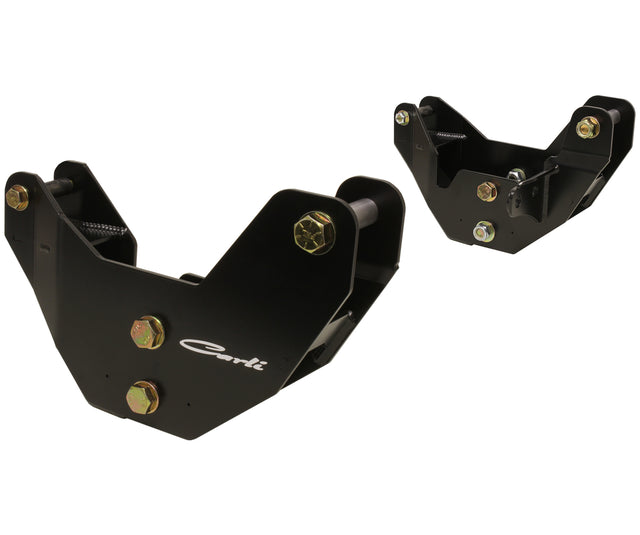

2014-2024 Ram HD Radius Arm Drop Brackets for 3.25" Lift (CS-DRAD-14)

Description

Part Number: CS-DRAD-14

These radius arm drop brackets are a bolt-on installation that maintains critical geometries with 2.5-4" front lift. They are constructed out of 1/4″ Cold Rolled Steel and CNC formed, and rotate your axle back to OEM settings.

Features

• Maintains critical geometries with 2.5-4" Front Lift
• Heavy-Duty Construction
• Bolt-On installation, no welding required
• Constructed out of 1/4″ Cold Rolled Steel and CNC formed
• Rotates your axle back to OEM settings

Notes

• Requires CS-DCM-20-HK to fit 2020+ Rams (NOT Included).
• When using with the Hemi 2.5″ Level System, you NEED to order the ACTIVE TUNED MASS MODULE RELOCATION PN: CS-DVDBRKT-19.

From Carli Suspension

One of the most important components to be included in our systems, Carli’s Radius Arm Drops maintain your vehicle’s critical caster and coil geometry. RAM’s new suspension setup has proven itself to be quite complex in its idiosyncrasies, and as a result we have engineered a simple solution to overcome the less-desired nuances of the new trucks. Using Chrysler CAD files, we developed a simple-to-install Drop that is truly bolt-on with no welding required. Due to their unique design, the vehicle chassis and powertrain can be serviced or replaced without removal of the Radius Arm Drops.

Constructed out of 1/4″ Cold Rolled Steel and CNC formed, these precision components rotate your axle back to OEM settings, locating your lower coil perch angles where they were intentionally designed; this also alleviates the coil bowing that is encountered when you lift the front and don’t address the coil bow issue, something that will never be truly addressed with a “coil only” approach. Carli Radius Arm Drops for 2013 RAM trucks will keep your investment driving like the day it left the showroom floor.
