2014-2025 Ram 2500 4x4 Diesel 3.25" Lift Backcountry System (CS-D3-BC-CS-1419-D)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$6,508.80 CAD
R1 or R2 Coils
Special Order - Average 2-4 Weeks for Fulfillment

Build Your Kit

The perfect lift kit for those wanting optimal performance on highways and off-road, this Backcountry lift kit includes Carli custom-tuned 2.0 remote reservoir shocks built with 6063 Aluminum, 5/8″ hardened steel chrome plated shaft, and 6061 billet rod ends. The options of R1 or R2 Rear Multi-Rate Coil Springs provide a slightly softer, more compliant ride at low compression, and become firmer as more force is applied.

Sway Bar Options

Required

Rear Track Bar

Required

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer replacing the OEM unit in the factory location. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.

High-Mount Steering Stabilizer

Optional

Bolt in compliment to the Carli Low-Mount Steering Stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains. This is NOT a primary stabilizer and MUST be run with either a Carli or OEM lower stabilizer in the factory location.

Fabricated Radius Arms

Optional

Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, and Serviceable 3" - 17-4 Stainless Steel Spherical Bearings.

Front Differential Guard

Optional

Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, and Serviceable 3" - 17-4 Stainless Steel Spherical Bearings.

Lifetime Ball Joints

Optional

Subtotal

Part Specs
Warranty
Description

The perfect lift kit for those wanting optimal performance on highways and off-road, this Backcountry lift kit includes Carli custom-tuned 2.0 remote reservoir shocks built with 6063 Aluminum, 5/8" hardened steel chrome plated shaft, and 6061 billet rod ends. The options of R1 or R2 Rear Multi-Rate Coil Springs provide a slightly softer, more compliant ride at low compression, and become firmer as more force is applied.

Part Number: CS-D3-BC-CS-1419-D / CS-D3-BC-CS-1419-D-R2

Features

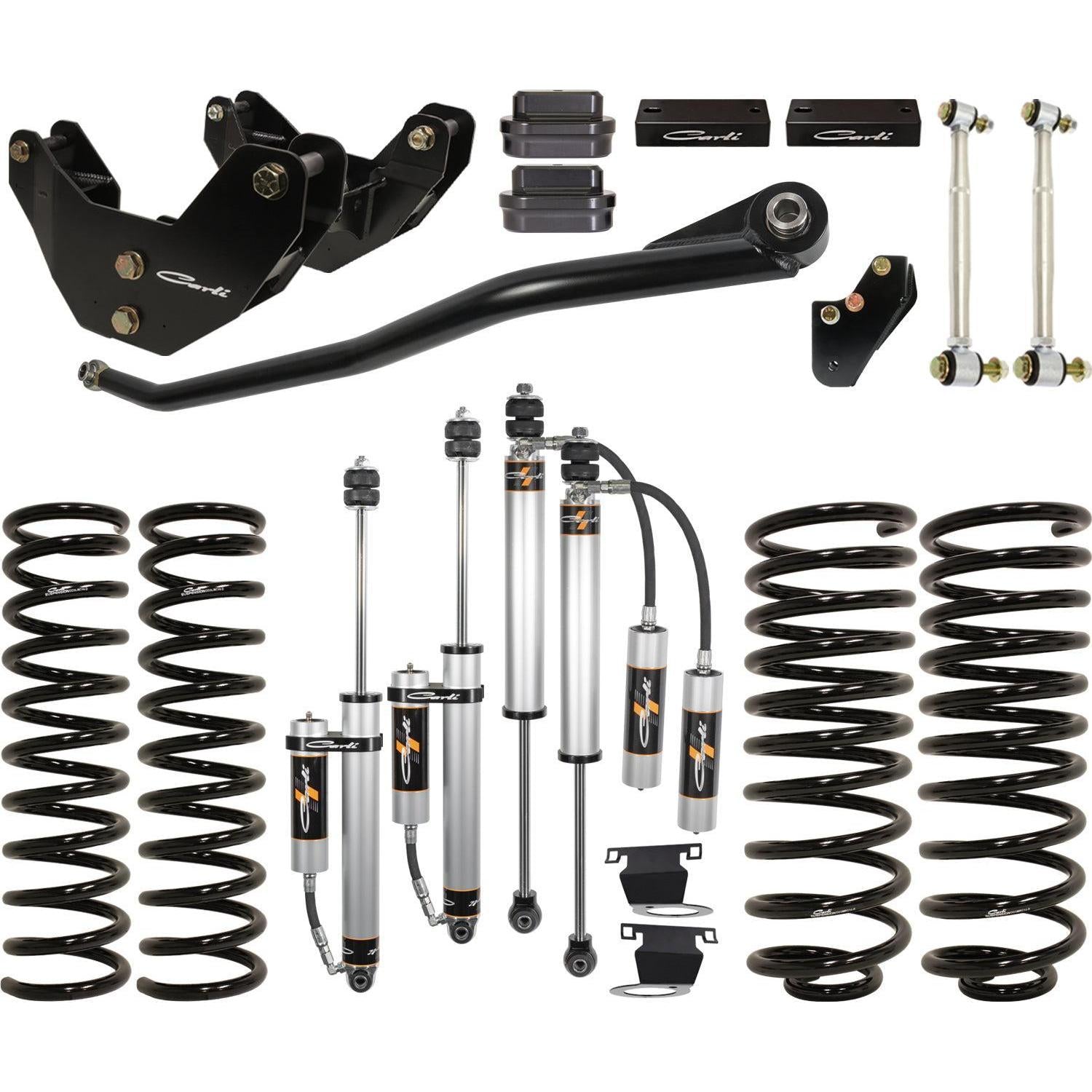

  • System includes multi-rate rear HD coils, front linear coils, front and rear shock package, radius arm drop brackets, adjustable track bar, front and rear bump stop drops, rear sway bar end links, and rear track bar drop
  • Increases wheel travel to 9.6" front and 11" rear
  • Allows for the fitment of 37" tires
  • Included HD rear coil springs provide 2" of rear lift, giving the truck a slight rake when unloaded and maintaining factory payload. Ideal for overlanding setups, tool boxes, etc.
Notes
  • Not compatible with factory rear air ride trucks. There are differentiating factors between R1 & R2 Coil Springs. Be sure to select the appropriate coil springs best suited to your application

Warranty
Limited 1 (One) Year Warranty

Vehicle Fitment

Part Specifications

  • Part No.
    CS-D3-BC-CS-1419-D
  • Vendor
    Carli Suspension
  • Shipping Weight
    114.51 lb
