2014-2025 Ram 2500 4x4 Diesel 3.25" Lift Pintop System (CS-DPT25-1419-D)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$8,714.88 CAD
1" Lift R1 or 2" Lift R2 Coils
Special Order - Average 2-4 Weeks for Fulfillment

Build Your Kit

There are differentiating factors between R1 & R2 Coil Springs. Be sure to select the appropriate coil springs best suited to your application - See 'Notes' tab

Sway Bar Options

Required

Rear Track Bar

Required

The rear axle of the Ram 2500 shifts laterally as it cycles through suspension travel. This rear side-to-side movement, referred to as "yaw", is felt in-cab at the least-opportune times. We offer two options, a drop bracket to minimize the rear yaw as much as is possible with the short factory track bar, or the Carli Extended Rear Track Bar can be optioned offering a massive increase in length, and reduction in angle, to effectively eliminate this yaw, resulting in far more composed and predictable handling.

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer replacing the OEM unit in the factory location. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.

High-Mount Steering Stabilizer

Optional

Bolt in compliment to the Carli Low-Mount Steering Stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains. This is NOT a primary stabilizer and MUST be run with either a Carli or OEM lower stabilizer in the factory location.

Fabricated Radius Arms

Optional

Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, and Serviceable 3" - 17-4 Stainless Steel Spherical Bearings.

Front Differential Guard

Optional

Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, and Serviceable 3" - 17-4 Stainless Steel Spherical Bearings.

Lifetime Ball Joints

Optional

Subtotal

Part Specs
Warranty
Description

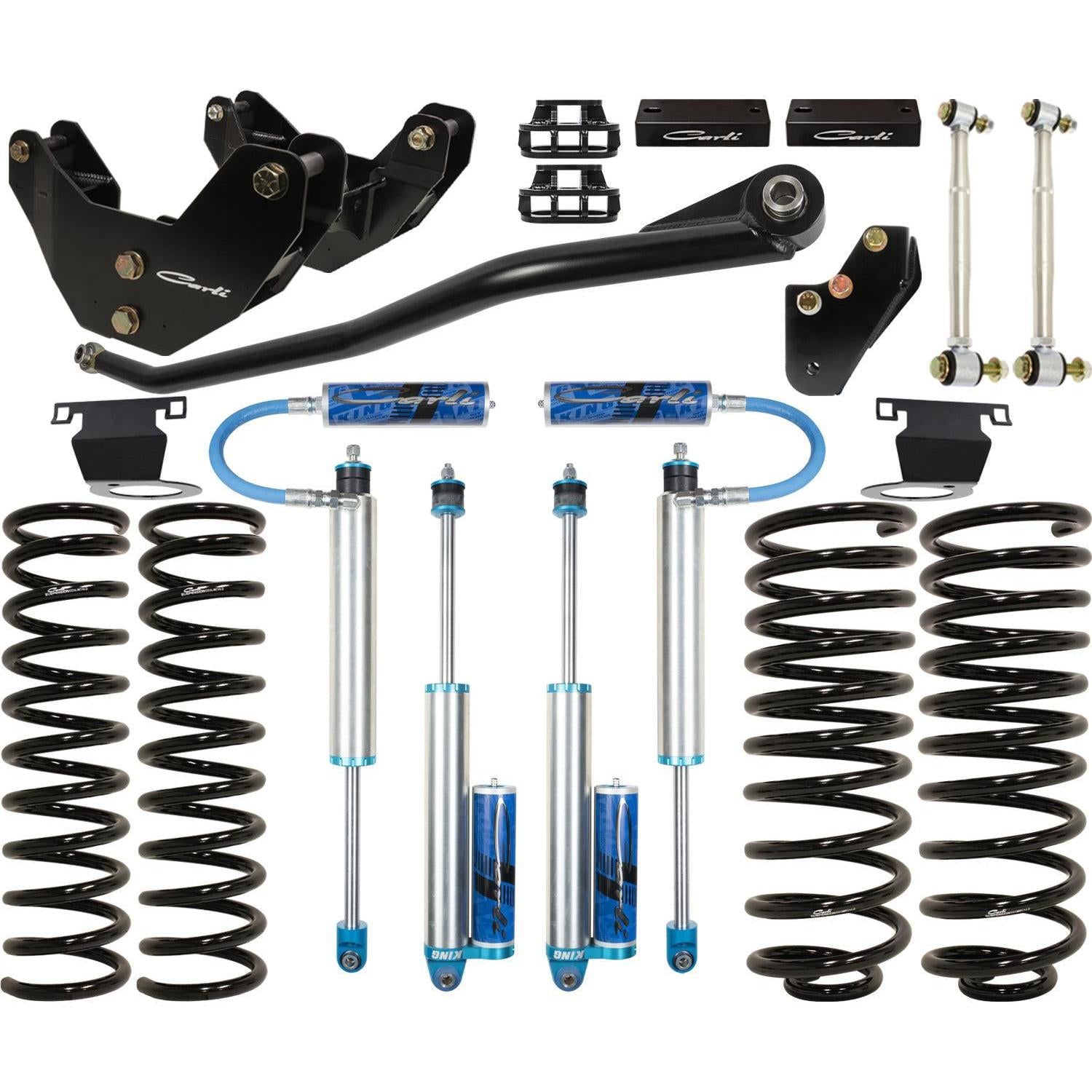

One of the best off-road suspension systems Carli offers, the Pintop 3.25" lift kit provides you with an all-around terrific ride over any terrain. No compromises were made with the development of this kit. Featuring Carli-specific, blueprinted, King 2.5" shocks that provide 55% more piston surface area and are the pinnacle of performance and capability. These pintop 2.5 remote reservoir shocks provide more fluid volume and piston movement, which results in improved heat dissipation, consistent damping, and a smoother, more comfortable ride. Fully rebuildable, serviceable, and tuneable for whatever your preference is.

Part Number: CS-DPT25-1419-D

Features
  • Multi-rate rear HD coils, front and rear shock package, radius arm drop brackets, adjustable track bar, front and rear bump stop drops, rear sway bar end links, and rear track bar drop
  • Increases wheel travel to 9.3" front and 11" rear
  • Allows for the fitment of 37" tires
  • HD rear coil springs provide 2" of rear lift, giving the truck a slight rake when unloaded and maintaining factory payload. Ideal for overlanding setups, tool boxes, etc.
Notes
  • There are differentiating factors between R1 & R2 Coil Springs. Be sure to select the appropriate coil springs best suited to your application - See 'Notes' tab
  • Not compatible with factory rear air ride trucks

IMPORTANT - R1 & R2 Coil Springs:

Be sure to select the lift kit package with the appropriate coil springs best suited to your application

  • R1: The perfect complement to an unloaded truck with custom-tuned Carli shocks. Ideal for customers desiring a level appearance and the BEST ride with capability up to 1,500lbs of bed-load
  • R2: Suited to the customer wanting to maintain the payload capacity and factory rake (unloaded), willing to accept a slightly firmer ride vs. the R1 (it is still softer than OEM rear springs). OR - The customer looking for the best ride and level appearance when loaded with a constant 800lbs (i.e. Overlanders)

Warranty
Limited 1 (One) Year Warranty

Vehicle Fitment

Part Specifications
