2014-2025 Ram 2500 Diesel Air Ride 2.5" Lift Leveling Pintop System (CS-DPT25-LVL-1419-D-AR)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$7,090.56 CAD
Special Order - Average 2-4 Weeks for Fulfillment

Build Your Kit

Review 'Additional Info' for required and optional components

Torsion Sway Bar

Optional

Rear Track Bar

Optional

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer replacing the OEM unit in the factory location. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.

High Mount Steering Stabilizer

Optional

Radius Arm Drop Bracket

Optional

The Radius Arm Drop Brackets are NOT required. A 2.5" Front lift is able to be caster corrected by adjusting the caster-cams all the way to the rear of the truck. If you'd like to correct spring pressure and eliminate potential coil spring bow and maintain full use of your caster adjustment, these Radius Arm Drops should be added.

Radius Arm

Optional

Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, and Serviceable 3" - 17-4 Stainless Steel Spherical Bearings.

Front Differential Guard

Optional

Better to have it and not need it than need it and not have it.

Lifetime Ball Joints

Optional

Subtotal

Part Specs
Warranty
Description

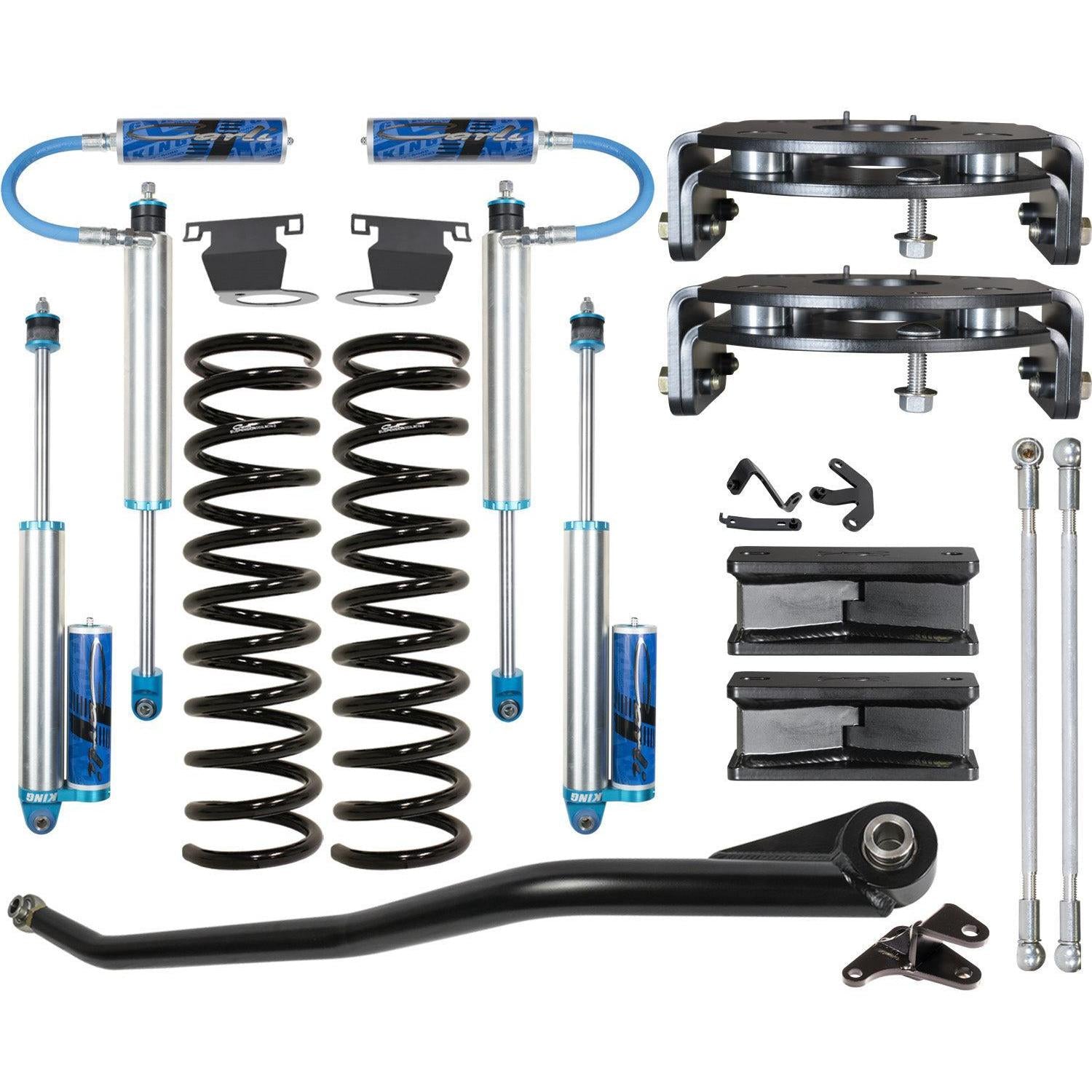

One of the best off-road suspension systems Carli offers, the Pintop 2.5" leveling kit provides you with an all-around terrific ride over any terrain. No compromises were made with the development of this kit. Featuring Carli-specific, blueprinted, King 2.5" shocks that provide 55% more piston surface area and are the pinnacle of performance and capability. These pintop 2.5 remote reservoir shocks provide more fluid volume and piston movement, which results in improved heat dissipation, consistent damping, and a smoother, more comfortable ride. Fully rebuildable, serviceable, and tuneable for whatever your preference is.

Part Number: CS-DPT25-LVL-1419-D-AR

Features
  • Multi-rate front coil springs, front and rear shock package, rear air ride components, and adjustable track bar
  • For those who love the way their Ram tows from the factory but don't want to be limited to a crawl when leaving the pavement, this is the perfect kit
  • Increases wheel travel to 8.3" front and 9" rear
Notes
  • Compatible with Factory Rear Air Suspension ONLY

Warranty
Limited 1 (One) Year Warranty

Vehicle Fitment

Part Specifications

  • Part No.
    CS-DPT25-LVL-1419-D-AR
  • Vendor
    Carli Suspension
  • Shipping Weight
    164.0 lb
  • Prop 65
    ⚠️ Warning: Cancer & Reproductive Harm
