2014-2025 Ram HD 2.5" Leveling Kit (CS-DLVL-CS-1419-H)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$1,952.64 CAD

Ships from

  • CanadaEst. 14 weeks · Secure yours today
    Special order
  • United States Duties & Brokerage may apply
    10+ available

Build Your Kit

Review 'Additional Info' for required and optional components

Step 1 of 9 · Optional

Track Bar

Step 2 of 9 · Optional

Rear Track Bar

The rear axle of the Ram 2500 shifts laterally as it cycles through suspension travel. This rear side-to-side movement, referred to as "yaw", is felt in-cab at the least-opportune times. Our Carli Extended Rear Track Bar can be optioned offering a massive increase in length, and reduction in angle, to effectively eliminate this yaw, resulting in far more composed and predictable handling. Note, with the Leveling Systems, a 1” rear bump drop is required.

Step 3 of 9 · Optional

Torsion Sway Bar

Step 4 of 9 · Optional

Low Mount Steering Stabilizer

Bolt in steering stabilizer replacing the OEM unit in the factory location. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers

Step 5 of 9 · Optional

High-Mount Steering Stabilizer

Bolt in stabilizer adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains. ** Note: Original 14-18 Drag Links will have 2 jam-nuts and large adjustment collar - order DHMSS-14 stabilizer. If the truck has been updated to the 19+ drag link, order the DHMSS-19.

Step 6 of 9 · Optional

Fabricated Radius Arms

Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, and Serviceable 3" - 17-4 Stainless Steel Spherical Bearings.

Step 7 of 9 · Optional

Radius Arm Drop Bracket

The 2.5 Inch Carli Systems DO NOT require these. Lifting the front 2.5" and maxing the caster correction (adjusting the cam-bolts to the rear of their adjustment) will provide sufficient caster to reach the Ram recommended alignment spec. This may cause a slightly coil bow but it's perfectly operable. If you'd prefer to achieve a proper caster spec with the cam-bolt in the middle of its range and want to guarantee a straight, non-bowing coil, these Radius Arm Drop Brackets are the answer.

Step 8 of 9 · Optional

Front Diff Guard

Better to have it and not need it than need it and not have it.

Step 9 of 9 · Optional

Lifetime Ball Joints
Your Build
2014-2025 Ram HD 2.5" Leveling Kit (CS-DLVL-CS-1419-H)
$1,952.64
Part Specs
Description

Note: NOT compatible with diesel models

Part Number: CS-DLVL-CS-1419-H

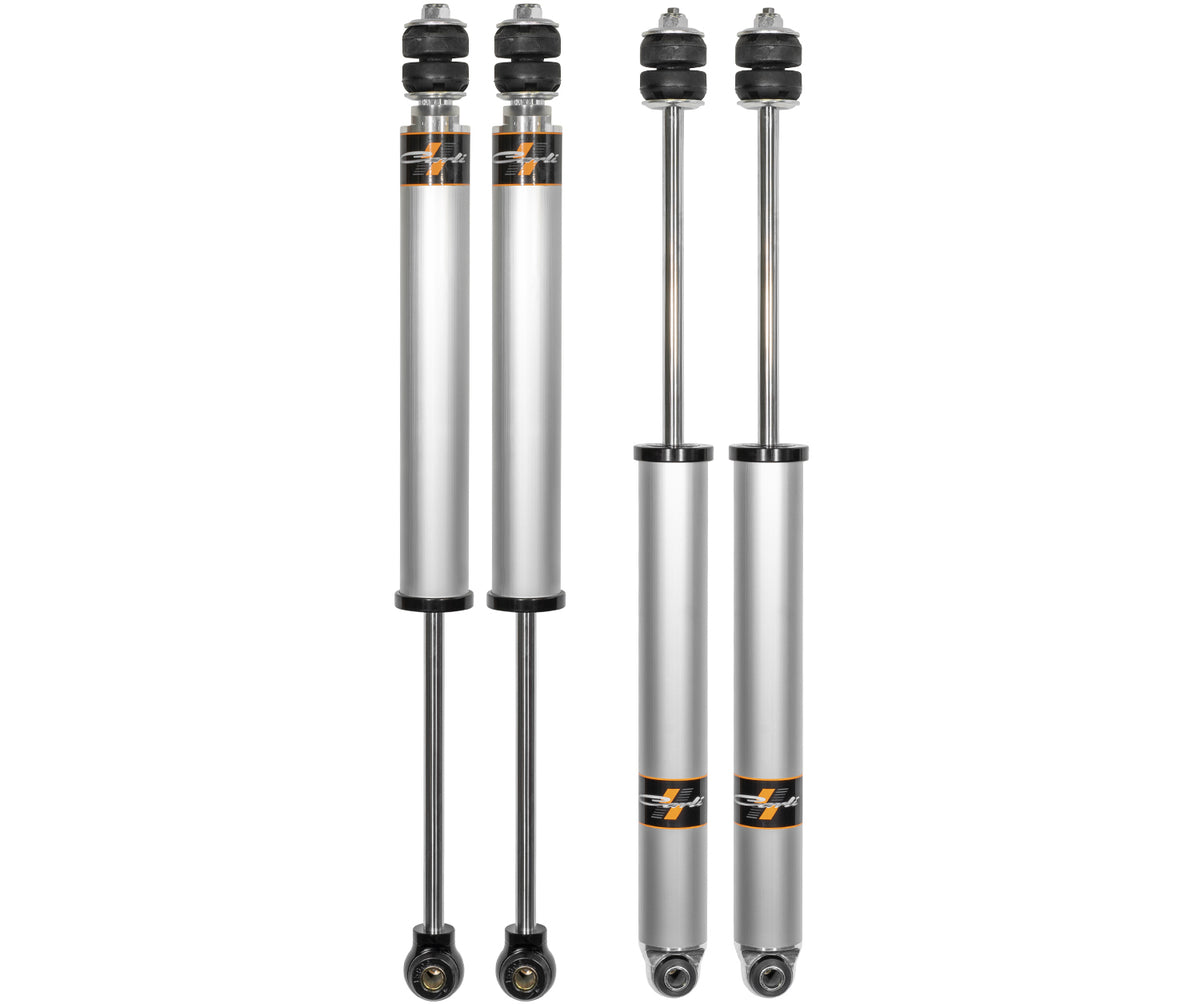

Designed for all-around comfort for city streets and highways, these specially tuned internal reservoir commuter shocks are perfect for those who want optimal comfort and ride quality for the paved roads.

Features
  • Custom-tuned for all-around comfort during highway use, around town, and towing/hauling
  • The corrosion-resistant aluminum bodies
  • Custom shock valving and coil rate specifically tuned for the lighter front end of the HEMI-equipped trucks

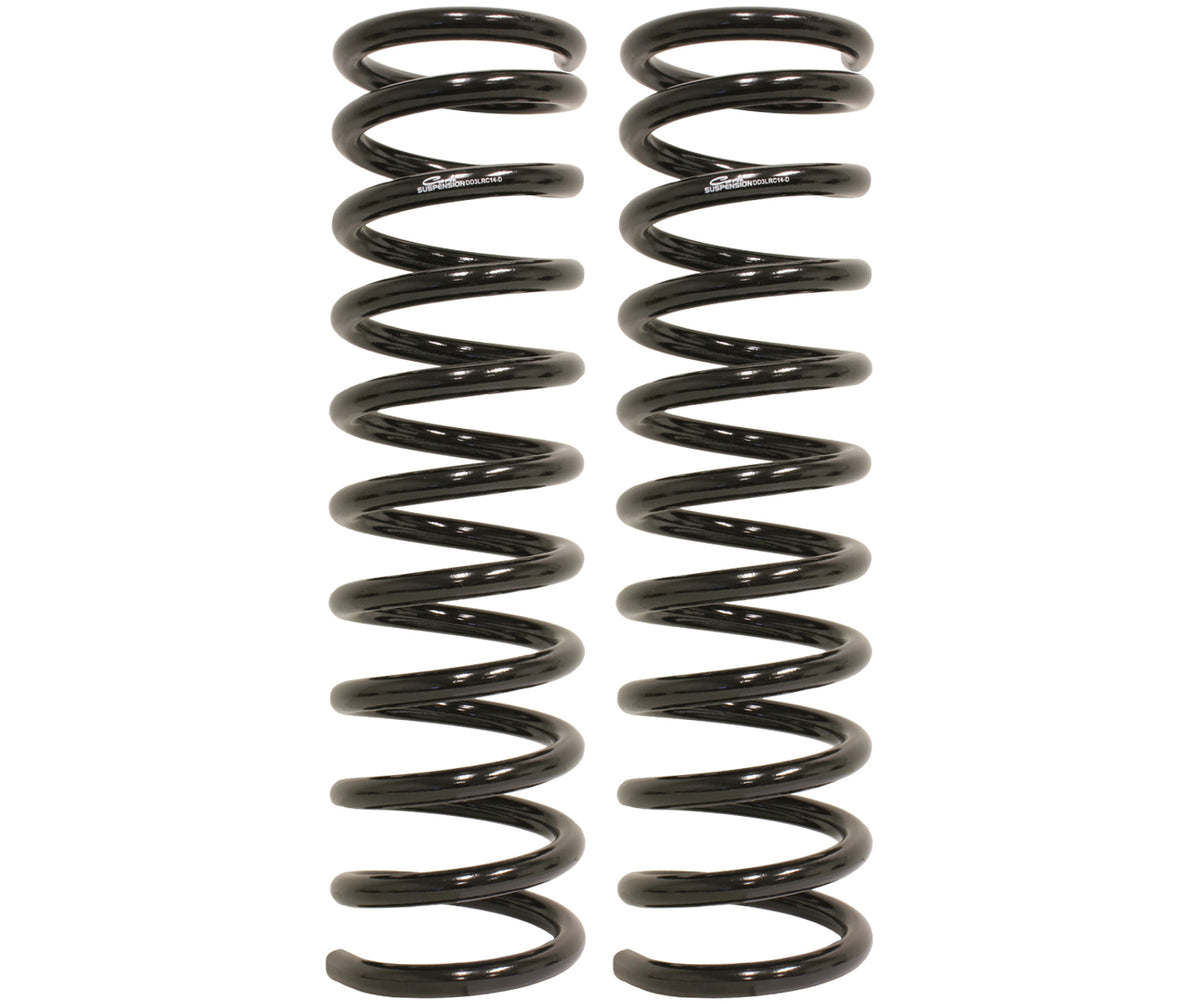

  • Linear-rate front coil springs, front and rear shock package, and adjustable track bar
  • Increases wheel travel to 9.5" front and 9.5" rear
Notes
  • These shocks are NOT tuned for off-roading.
  • Does not work with rear auto-level air suspension.
  • Nothing additional to this "Base" kit is needed but we highly recommend customers purchase the adjustable track bar.

Vehicle Fitment

Part Specifications

  • Part No.
    CS-DLVL-CS-1419-H
  • Vendor
    Carli Suspension
  • Shipping Weight
    69.999 lb
  • Placement
    • Front
  • Prop 65
