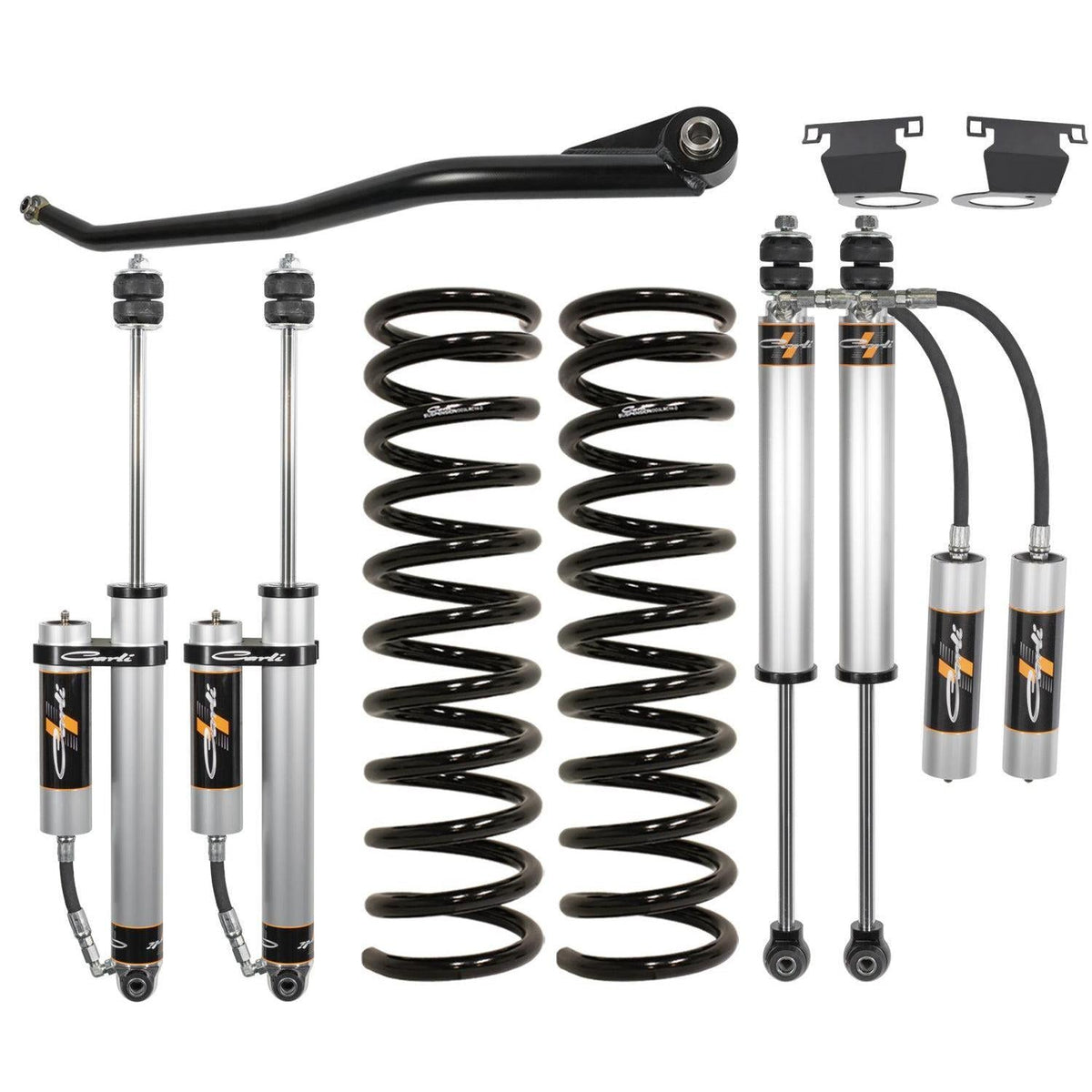

2014-2025 Ram HD Backcountry 2.5" Lift Kit (CS-DLVL-BC-CS-1419-H)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$3,790.08 CAD
In stock - Ships right away

Build Your Kit

Review 'Additional Info' for required and optional components

Torsion Sway Bar

Optional

Rear Track Bar

Optional

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer replacing the OEM unit in the factory location. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.

High Mount Steering Stabilizer

Optional

Radius Arm

Optional

Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, and Serviceable 3" - 17-4 Stainless Steel Spherical Bearings.

Radius Arm Drop Bracket

Optional

The 2.5 Inch Carli Systems DO NOT require these. Lifting the front 2.5" and maxing the caster correction (adjusting the cam-bolts to the rear of their adjustment) will provide sufficient caster to reach the Ram recommended alignment spec. This may cause a slightly coil bow but it's perfectly operable. If you'd prefer to achieve a proper caster spec with the cam-bolt in the middle of its range and want to guarantee a straight, non-bowing coil, these Radius Arm Drop Brackets are the answer.

Front Differential Guard

Optional

Better to have it and not need it than need it and not have it.

Lifetime Ball Joints

Optional

Subtotal

Part Specs
Warranty
Description

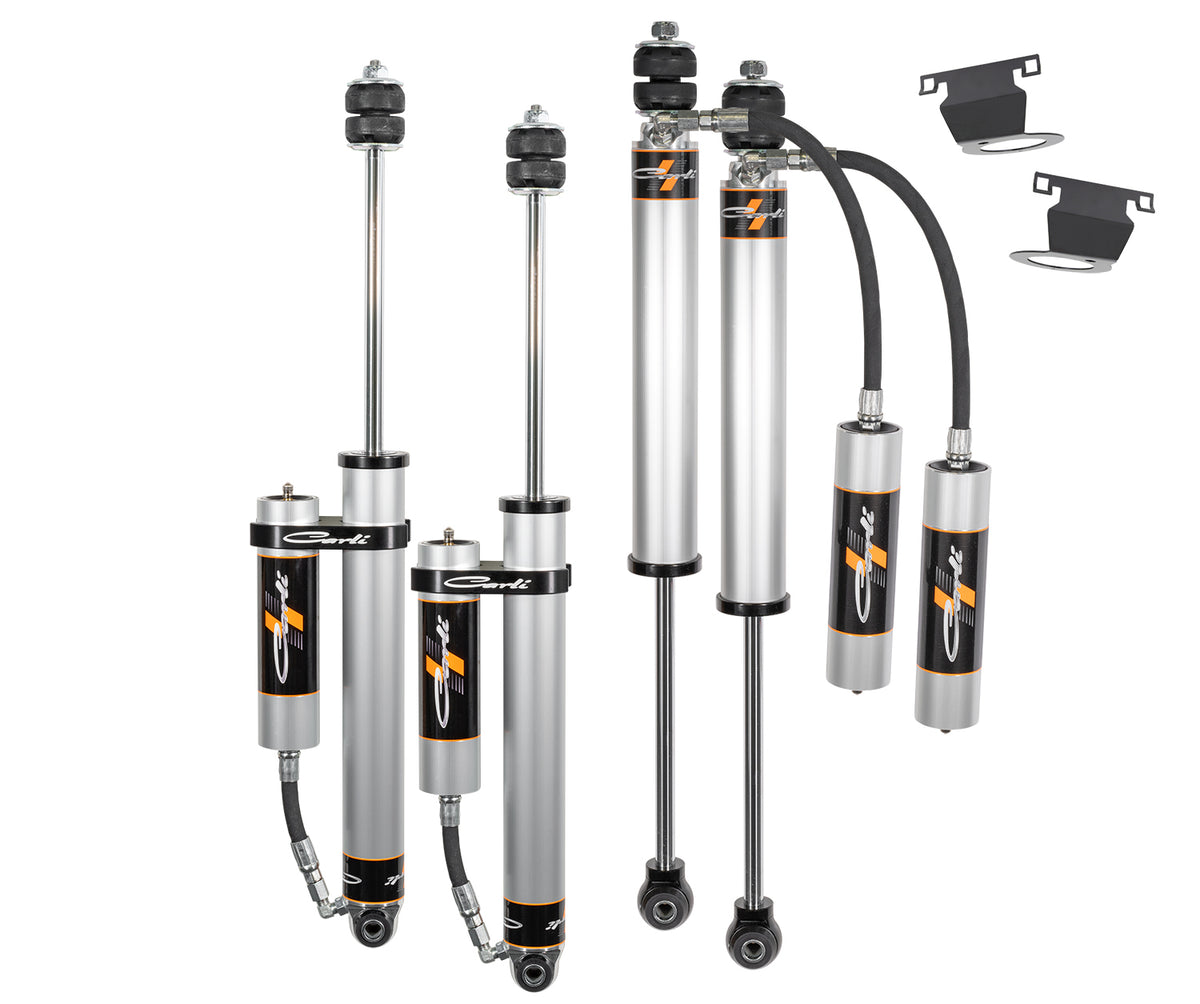

The perfect comprehensive suspension setup for your 2500, for the full-time highway driver and part-time off-roader. It features front and rear multi-rate coil springs that provide a slight rear rake and smooth, soft highway driving, as well as a stiffer, more controlled ride on rough terrain or hauling heavy loads. Paired with Carli's 2.0 remote reservoir shocks to further maintain stability, control, and provide superior bottom-out protection.

Part Number: CS-DLVL-BC-CS-1419-H

Features
  • The Bakcountry Leveling 2.0 System is designed for those seeking the best on and off-road performance on a budget, with no loss of towing capacity
  • Custom shock valving and coil rate specifically tuned for the lighter front end of the HEMI-equipped trucks
  • Multi-rate front coil springs, front and rear shock package, and adjustable track bar
  • Increases wheel travel to 9.5" front and 9.5" rear
  • Allows for the fitment of 35" tires
Notes
  • NOT compatible with factory air ride rear suspension
  • NOT compatible with diesel models

Warranty
Limited 1 (One) Year Warranty

Vehicle Fitment

Part Specifications

  • Part No.
    CS-DLVL-BC-CS-1419-H
  • Vendor
    Carli Suspension
  • Shipping Weight
    133.0 lb
  • Placement
    • Front
    • Rear
  • Lift Height
    2.5"
  • Rear Lift Height
    2.5"
  • Front Lift Height
    2.5"
  • Prop 65
    ⚠️ Warning: Cancer & Reproductive Harm
