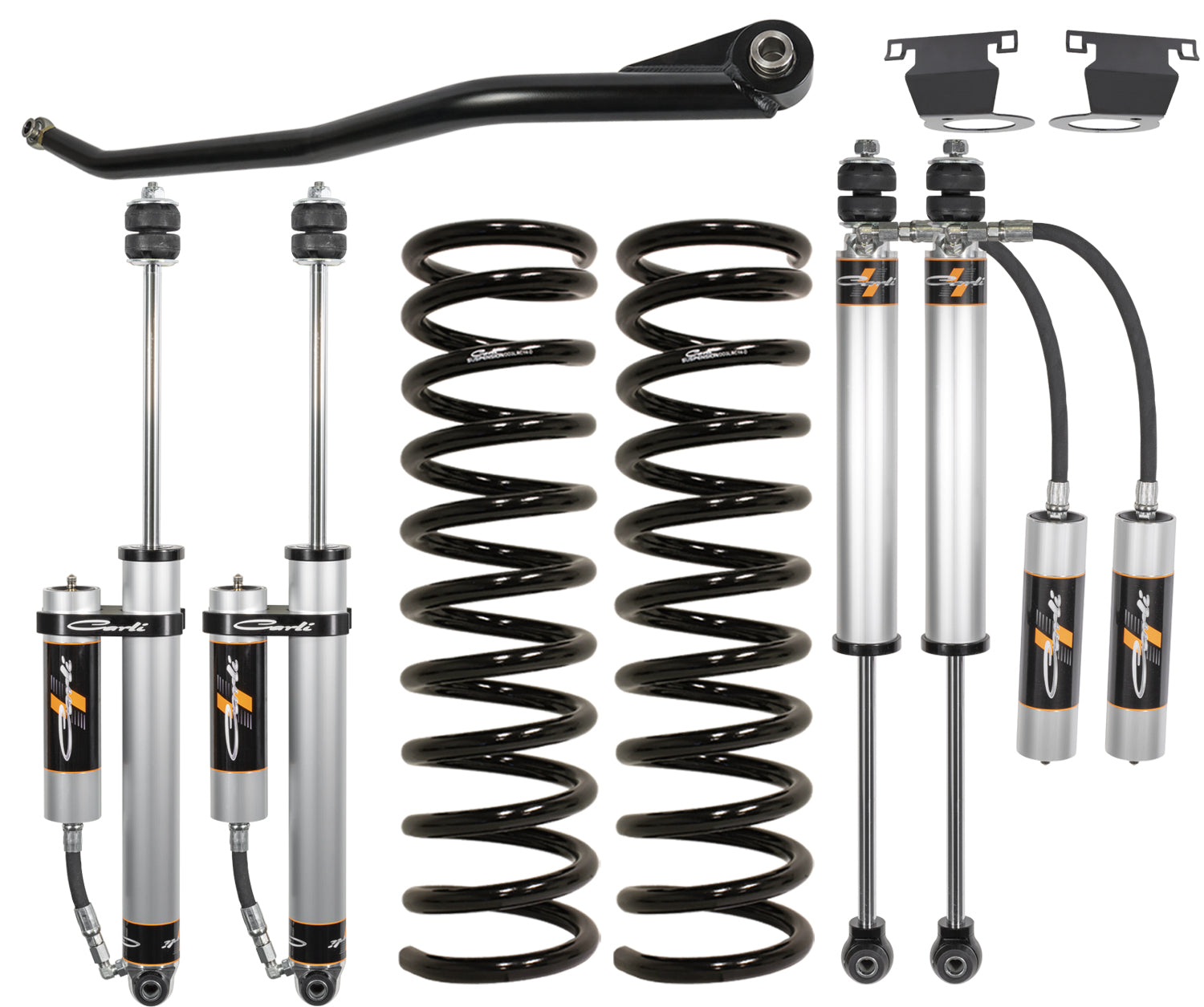

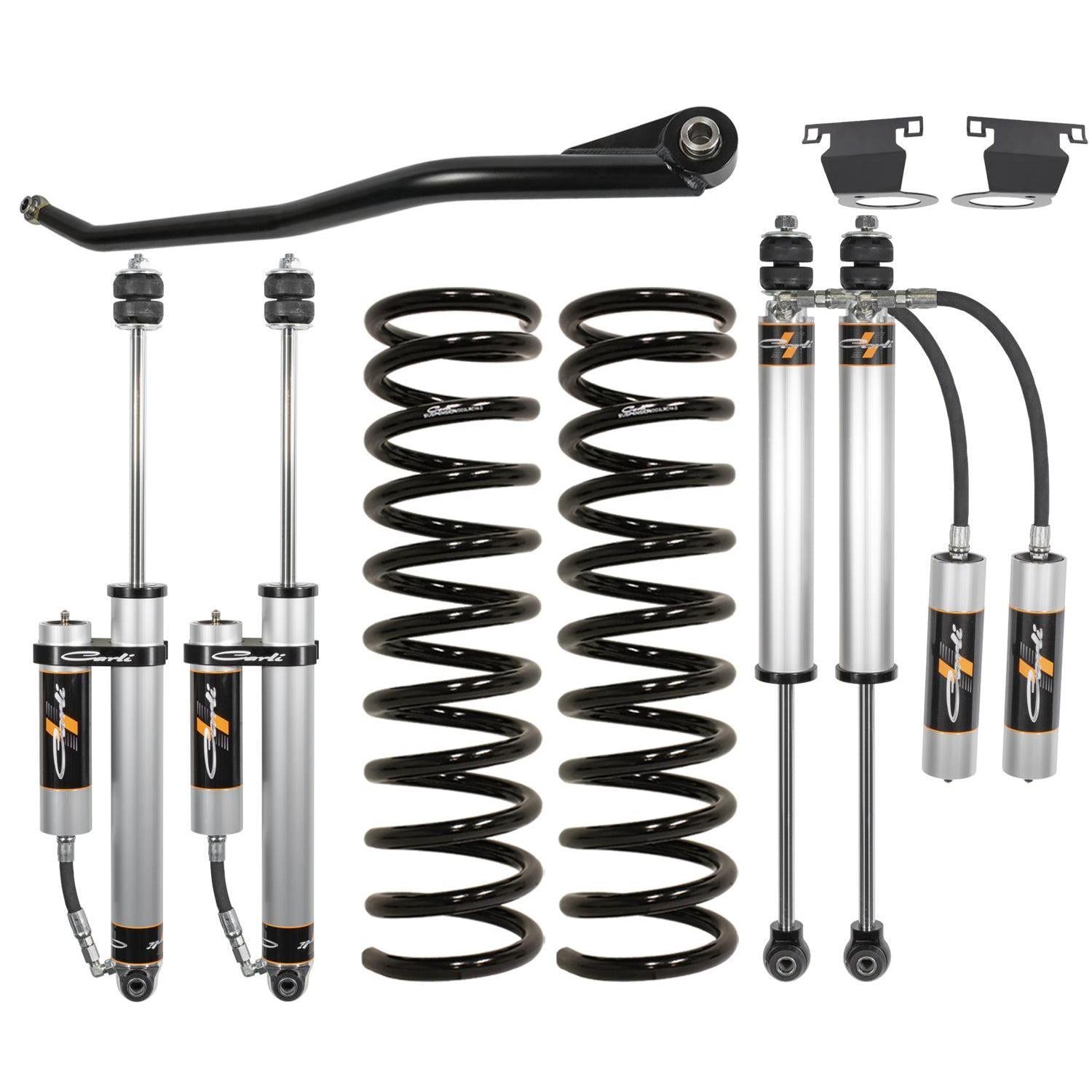

2014-2026 Ram 2500 2.5" Lift Leveling Backcountry System (CS-DLVL-BC-CS-1419-D)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$3,790.08 CAD
In stock - Ships right away

Build Your Kit

Configure your 2014-2026 Ram 2500 2.5" Lift Leveling Backcountry System (CS-DLVL-BC-CS-1419-D) below.

Sway Bar Option

Optional

The Leveling System will ride best with the Torsion Sway Bar. This upgraded sway bar lightens the spring rate of the front sway bar providing an independent suspension-like feel. Maintaining the factory sway bar is only recommended for customers with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.

Rear Track Bar

Optional

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer replacing the OEM unit in the factory location. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.

High Mount Steering Stabilizer

Optional

Radius Arm

Optional

Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, Serviceable 17-4 Stainless Spherical Bearings and maintain the factory caster adjustment.

Radius Arm Drop Bracket

Optional

The 2.5 Inch Carli Systems DO NOT require these. Lifting the front 2.5" and maxing the caster correction (adjusting the cam-bolts to the rear of their adjustment) will provide sufficient caster to reach the Ram recommended alignment spec. This may cause a slightly coil bow but it's perfectly operable. If you'd prefer to achieve a proper caster spec with the cam-bolt in the middle of its range and want to guarantee a straight, non-bowing coil, these Radius Arm Drop Brackets are the answer.

Front Differential Guard

Optional

Better to have it and not need it than need it and not have it.

Lifetime Ball Joints

Optional

Subtotal

Part Specs
Warranty
Description

The Backcountry 2.0 system is designed for people seeking the best ride on and off-road quality on a budget; basically, the Leveling Kit for those that want to have a little dirt-road fun in their 8,500lb truck without losing the on-road ride quality or usability. Utilizing Carli SPEC 2.0 Diameter, Remote Reservoir shocks, we've developed a tune that delivers all around comfort and ride quality designed for on-road, in town, highway, towing/hauling as well as slow to mid speed off road use.

Features

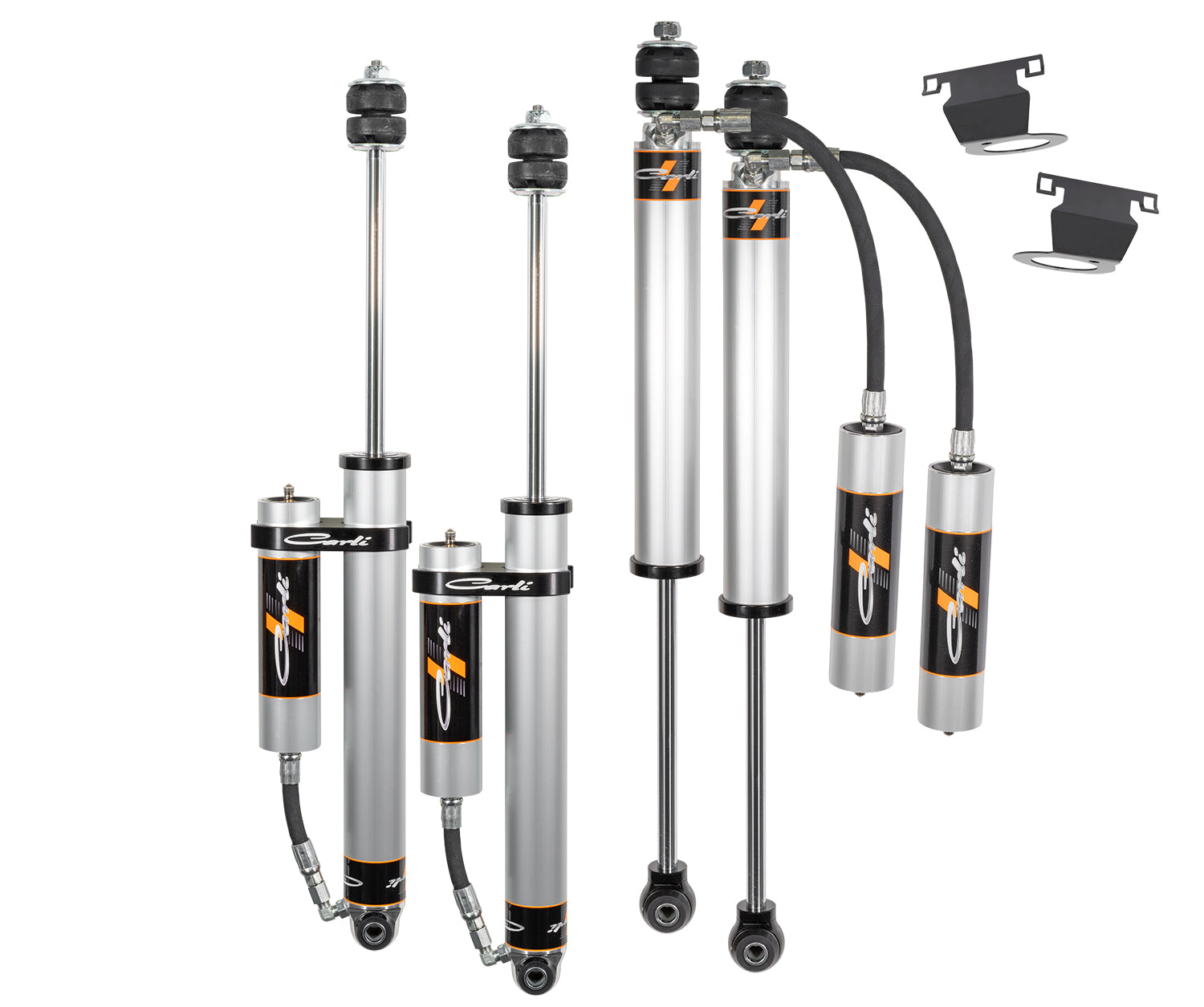

  • Features the Backcountry 2.0 Remote Reservoir Shock Package.
  • Includes 2.5-inch Leveling Front Coil Springs for a level stance.
  • Comes with an Adjustable Track Bar to perfectly center the front axle.
  • The 2.5-inch lift height does not require front or rear geometry correction.

Warranty
Limited 1 (One) Year Warranty

Vehicle Fitment

Part Specifications

  • Part No.
    CS-DLVL-BC-CS-1419-D
  • Vendor
    Carli Suspension
  • Shipping Weight
    133.0 lb
  • Length
    12 in
  • Width
    13 in
  • Height
    37 in
  • Placement
    • Front
  • Lift Height
    2.5"
  • Rear Lift Height
    2.5"
  • Front Lift Height
    2.5"
  • Prop 65
    ⚠️ Warning: Cancer & Reproductive Harm
  • Compatibility Notes
    Does not work with rear auto-level air suspension.
