2014-2024 Ram 2500 2.5" Lift Leveling System (CS-DLVL-CS-1419-D)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$1,952.64 CAD
In stock - Ships right away

Build Your Kit

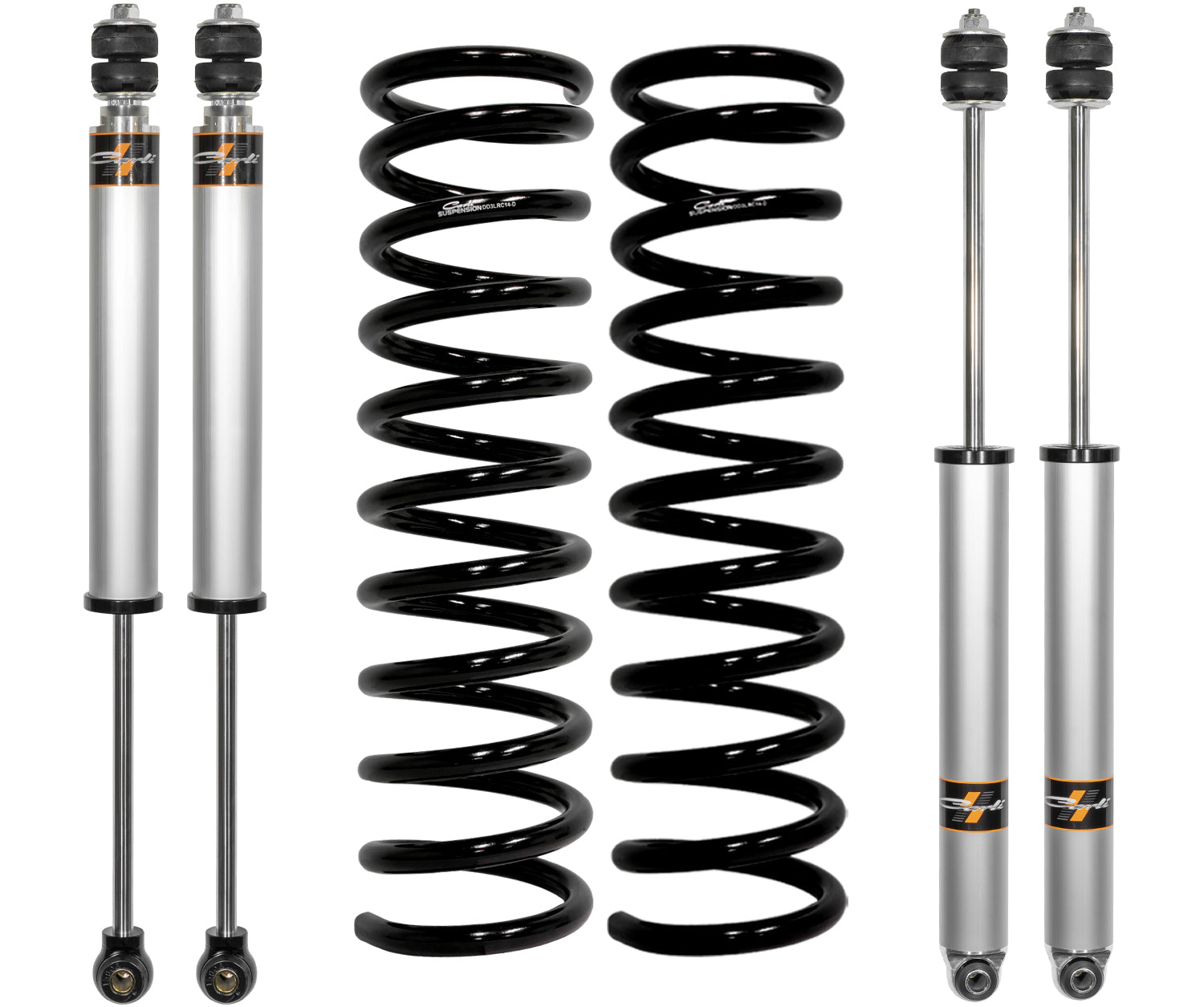

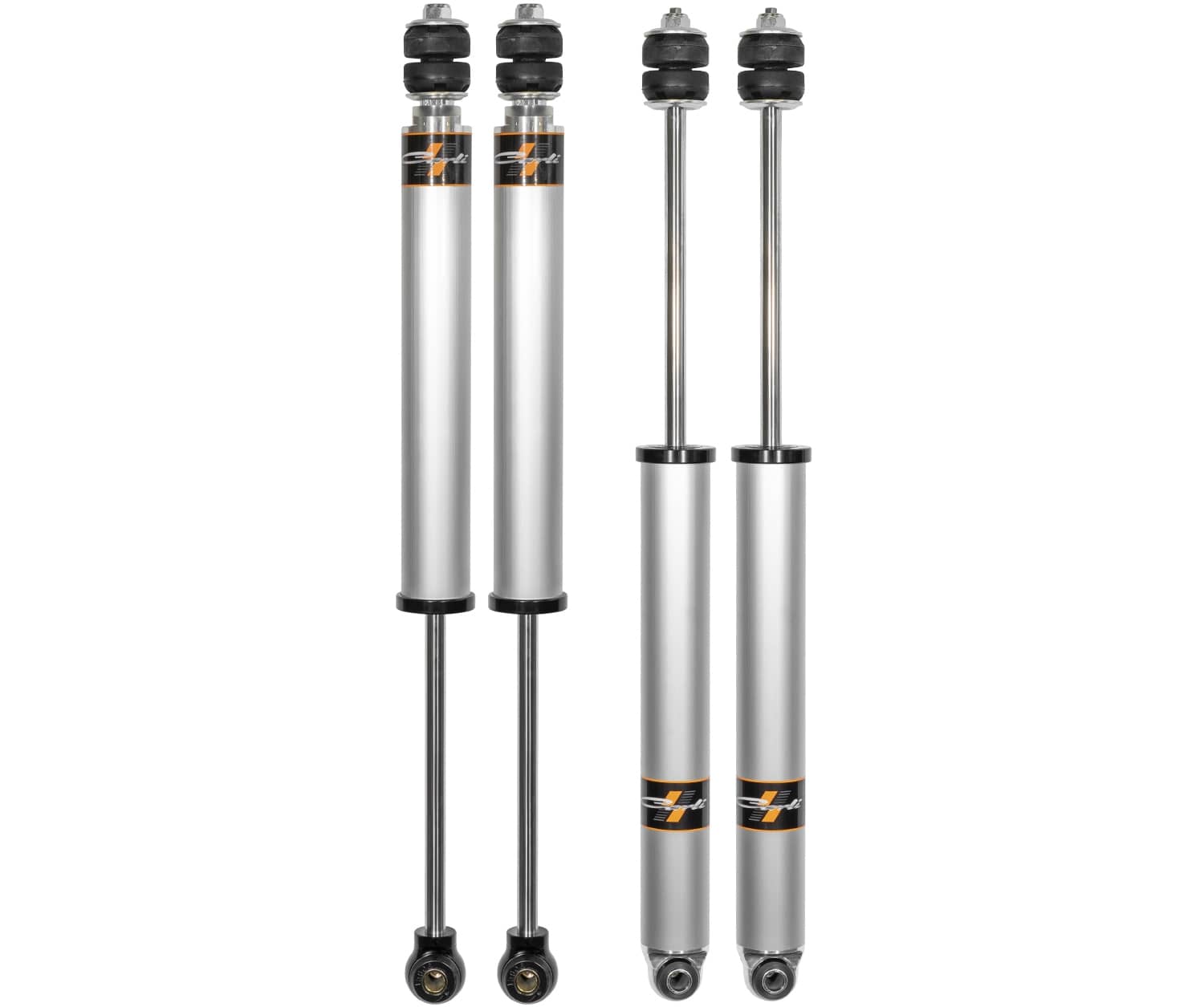

The biggest bang for your buck in terms of quality, designed for those who want a well-rounded kit for on-road, in-town, highway, and towing/hauling with no geometry correction required. Featuring Carli custom-tuned 2.0 remote reservoir shocks built with 6063 Aluminum, 5/8″ hardened steel chrome plated shaft, and 6061 billet rod ends. Linear Rate Coil Springs are also included to maintain a smooth and comfortable ride, they are tighter when cornering and react consistently throughout any compression range, making them more responsive and predictable.

Track Bar

Optional

Rear Track Bar

Optional

Torsion Sway Bar

Optional

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer replacing the OEM unit in the factory location. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.

High Mount Steering Stabilizer

Optional

Radius Arm

Optional

Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, and Serviceable 3" - 17-4 Stainless Steel Spherical Bearings.

Radius Arm Drop Bracket

Optional

The 2.5 Inch Carli Systems DO NOT require these. Lifting the front 2.5" and maxing the caster correction (adjusting the cam-bolts to the rear of their adjustment) will provide sufficient caster to reach the Ram recommended alignment spec. This may cause a slightly coil bow but it's perfectly operable. If you'd prefer to achieve a proper caster spec with the cam-bolt in the middle of its range and want to guarantee a straight, non-bowing coil, these Radius Arm Drop Brackets are the answer.

Front Differential Guard

Optional

Better to have it and not need it than need it and not have it.

Lifetime Ball Joints

Optional

Subtotal

Part Specs

Engineered as the foundational step in building a truly capable Ram 2500, our 2.5-inch Leveling System is the definitive answer to the harsh factory ride. This system provides a significant improvement in on-road comfort and unlocks a new level of off-road potential. At its core are our proven 2.5-inch linear-rate front coil springs, which provide a level stance and a smooth, predictable ride, paired with a track bar drop bracket to ensure proper geometry, resulting in a truck that is composed on the highway and confident when the pavement ends.

Features
  • Lifts the front 2.5 inches to achieve a perfectly level stance on your 2014+ Ram 2500.
  • Built around 2.5-inch linear rate front coil springs for a smooth and predictable ride.
  • Includes a track bar drop bracket to correct suspension geometry for proper handling.
  • Vastly improves comfort and control without sacrificing daily usability.

Vehicle Fitment

Part Specifications

  • Part No.
    CS-DLVL-CS-1419-D
  • Vendor
    Carli Suspension
  • Shipping Weight
    70.0 lb
  • Placement
    • Front
  • Lift Height
    2.5"
  • Rear Lift Height
    2.5"
  • Front Lift Height
    2.5"
