2014-2014 F-150 6" Lift Kit with NX2 Nitro Shocks (BDS1505H)

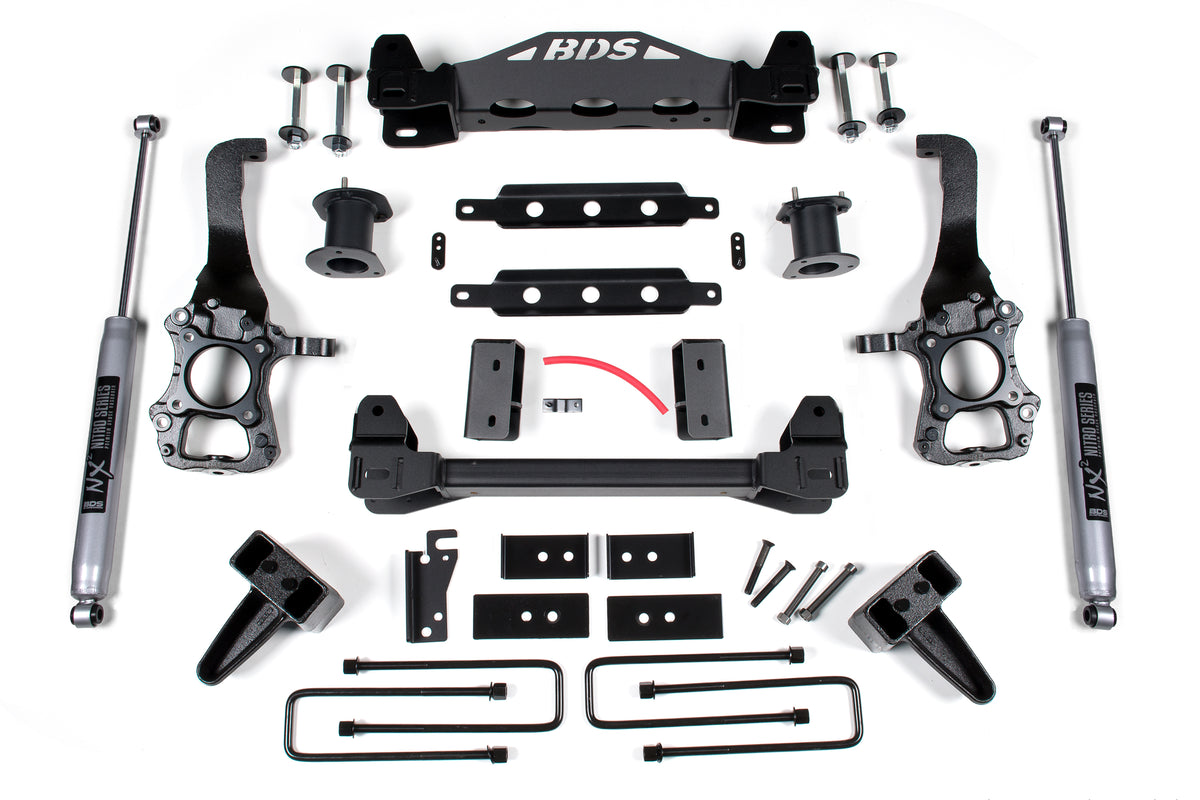

BDS Suspension leads the industry by developing a 2wd specific 6 inch lift kit suspension system for your 2014 Ford F150 2WD truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

Features

• The 4 inch blocks will net a level/tail LOW stance. The 5 inch blocks will net a level/tail HIGH stance.
• Will not fit HD models (7 lug).
• This kit is FMVSS No.126 Compliant
• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• Level to tail high appearance
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5.5

Notes

• 18 inch or larger diameter wheels required. Stock 17 inch & 18 inch wheels cannot be reinstalled. Stock 20 inch wheels can be used with up to a 305/60-20 Tires.
• E-brake bracket required for factory powersteps (123018) Block kits replace factory 1-1/4 inch block.
• Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406

Includes

• BDS013529, 2009-2016 Ford F150 Rear Box Kit (UPC 658848613656)
• BDS023605, 2014-15 F150 6 Inch Spacer Box Kit (UPC 658848615780)
• BDS023624, 09 Ford F150 2wd Front Box Kit (3of3) (UPC 658848615841)
• BDS023625, 2009-2014 Ford F150 4-6 Inch Box Kit (1of4) (UPC 658848615858)
• BDS023626, 2009-2014 Ford F150 4-6 Inch Box Kit (2of4) (UPC 658848615865)
• BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609693)
