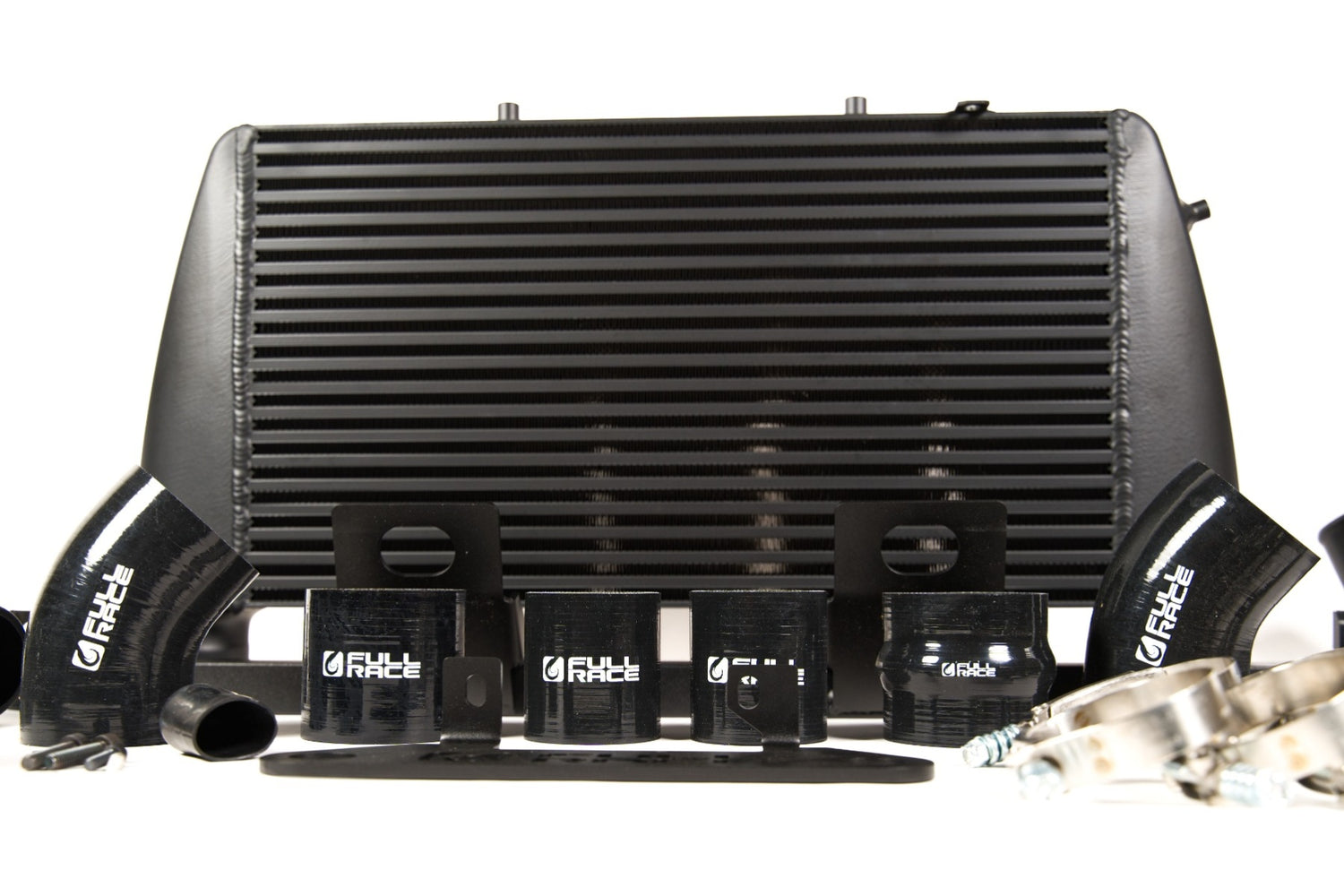

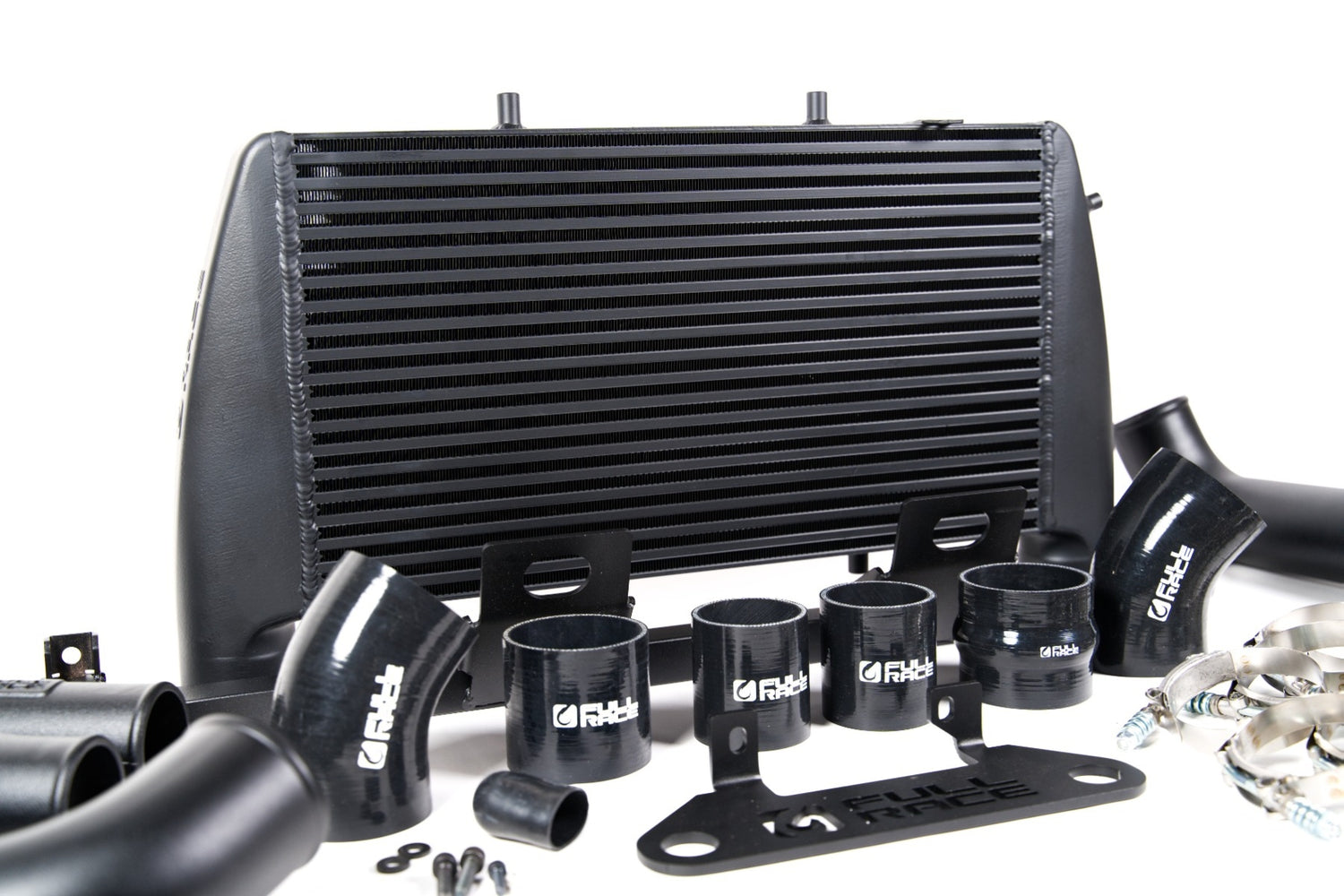

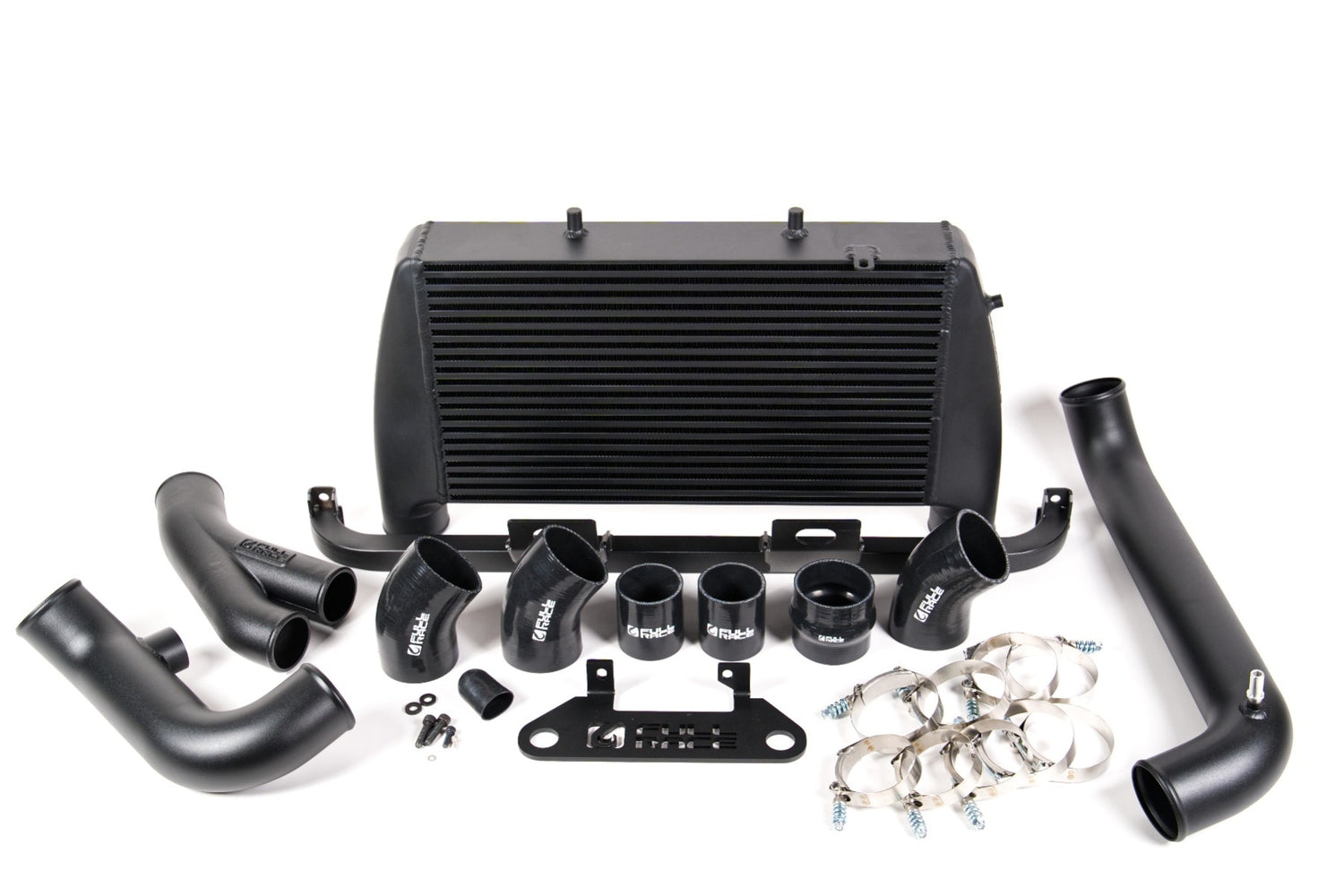

2015-2016 F-150/Raptor 3.5L Ecoboost Black-coated Intercooler Kit (A0211A)

The Full-Race V2 Intercooler is the highest flowing charge air cooler (CAC) developed for the 2015-2016 Ford F-150 3.5L EcoBoost. Featuring aerospace-grade construction, a high-quality 3.5-inch thick bar and plate core, and a stealthy black coating, this kit dramatically improves cooling efficiency. It supports over 700 horsepower airflow rates with minimal pressure drop, preventing engine knock and power loss from heat soak, thereby enhancing power output and throttle response for sustained performance.

Features

• Features a high-flow front mount intercooler core with over 1000cfm flow rate.
• Core boasts a 70 percent larger internal flow area than the OEM intercooler.
• Aerodynamically cast end tanks and internal flow dividers optimize airflow.

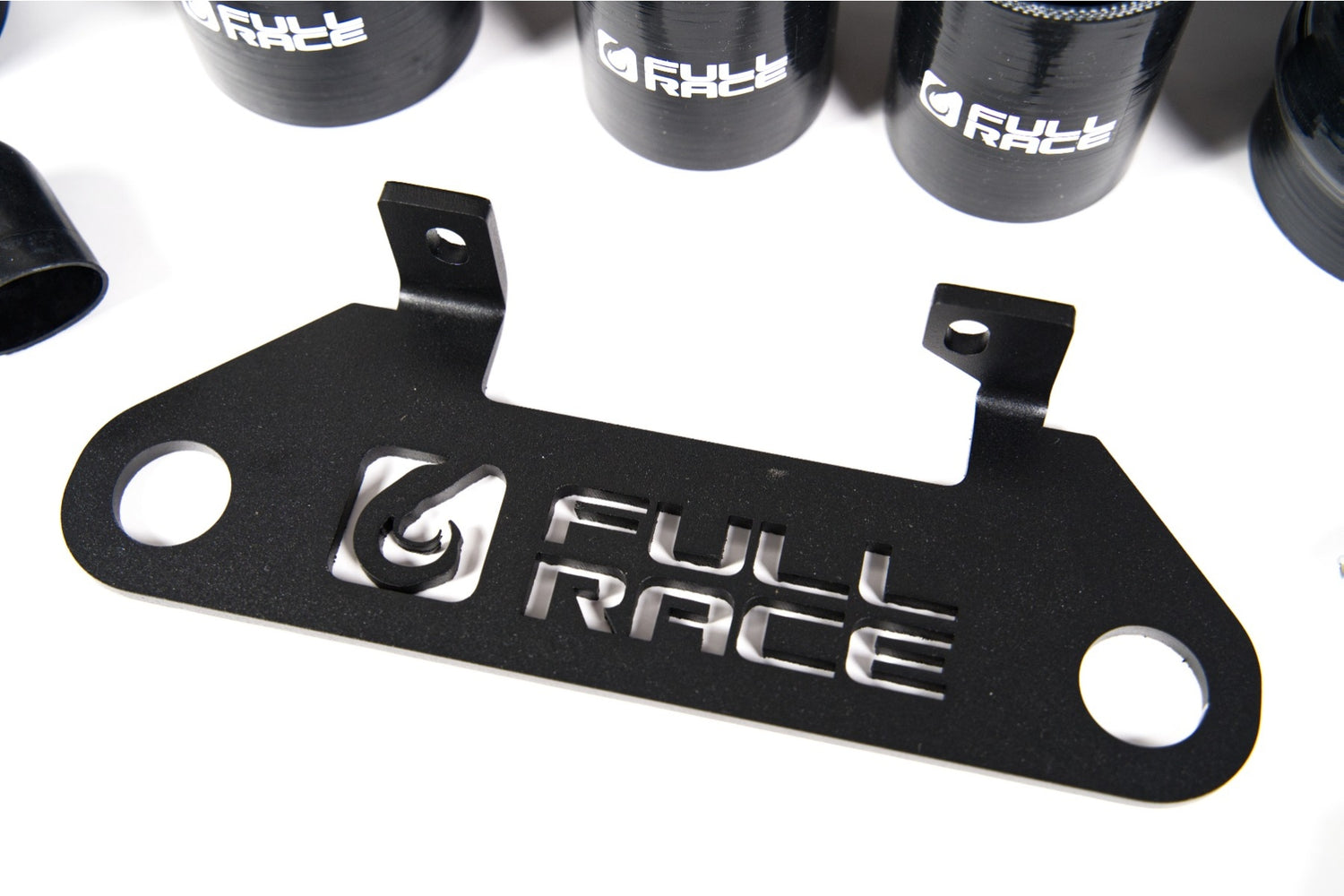

• Constructed with TIG-welded end tanks and a hand-fabricated steel lower support beam for durability.
• Includes Full-Race Aluminum Charge Piping for both hot and cold sides (3-inch diameter).
• Includes a cast aluminum Y-Pipe for a stronger, better-fitting intercooler upgrade.

Notes

• The black powder coating enhances durability and provides a discreet, uniform appearance.
• The upgraded intercooler lowers Inlet Air Temperatures (IAT) by over 90 degrees Fahrenheit compared to OEM at maximum load.
• Fully compatible with OEM Electronic Blow Off Valve and Turbosmart Vee Port EM BOV.
• The kit is compatible with various aftermarket front-end upgrades such as steel bumpers or bull bars.
• Professional installation is recommended.

Compatibility Notes

• Specifically compatible with 2015-2016 Ford F-150 EcoBoost 3.5L.

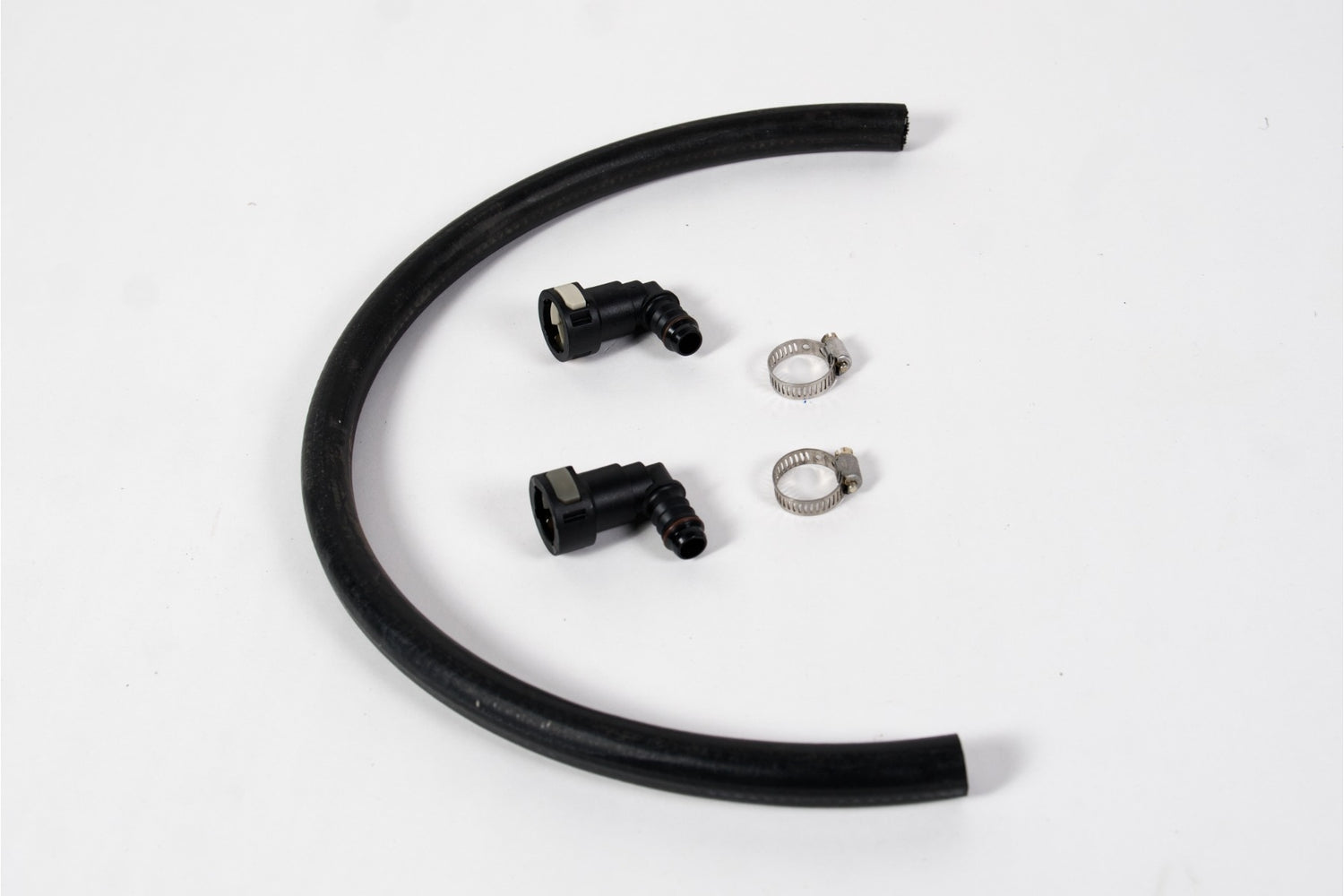

• Retains OEM sensors and purge solenoid fittings for easy installation.

Specs

• Intercooler Core Type: Bar and Plate
• Core Thickness: 3.5 inches
• Intercooler Coating: Black
• Maximum Supported Airflow: 700+ horsepower
