2015-2019 Yukon / Tahoe 6" Lift Kit (BDS737H)

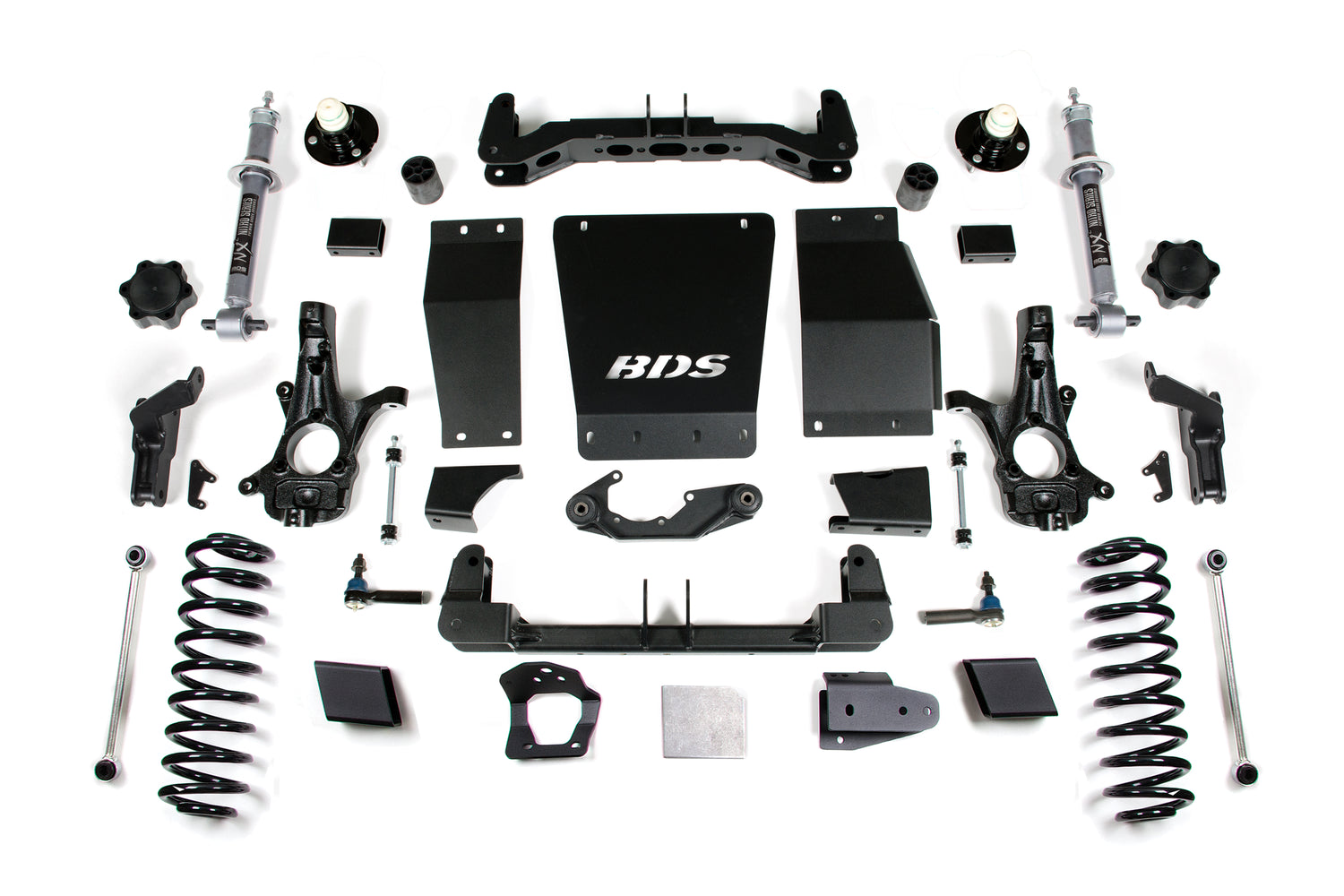

Take your 2015-2019 Chevy Suburban or Tahoe and GMC Yukon 1500 to new heights with this BDS 6" lift kit, with clearance for up to 35" tires. The high-clearance design improves ground clearance, strength, and offroad protection while correcting suspension and steering geometry. Up front it uses a full length NX2 nitrogen charged strut, 1/4" thick high-arched steel crossmembers, multipiece differential relocation brackets, and heavy duty skid plates, with CNC-machined ductile iron steering knuckles, sway bar drops, bump stop extensions, brake line brackets, and CV spacers. The rear uses new Pro-Ride coil springs, anti-sway bar links, a track bar relocation system, and adjustable upper control arms for pinion angle, with rear sensor relocation brackets and shock extensions to retain the factory electronic dampers.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• High-strength replacement upper control arms provide durability and serviceability
• HD skid plate system improves offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• Includes shock relocation brackets to maintain factory Autoride shocks

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Coil Springs
• Shocks Included: No
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 34x12.5, 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5.75

Notes

• Works only on Autoride equipped SUVs.
• Frame bracket modification and welding are required.
• 20 inch wheels with 5 inch to 5-3/4 inch backspacing are recommended to reduce trimming.
• AWD models may require front driveline modification.
• Factory 17 inch and 18 inch wheels cannot be reinstalled due to tie rod interference.
• GM produced several knuckle/control arm configurations in 2015-2016 (and 2014-2018) model trucks. Cast Steel control arm equipped models require the Cast Steel Control Arm kit; Stamped Steel and Aluminum control arm equipped models require the Aluminum Control Arm kit. Verify which factory control arms your truck has before ordering.

Includes

• BDS021518, 15-19 GM SUV AutoRide Rear 5in Box Kit (UPC 658848614752)
• BDS021660, 14-18 GM 1500 - 15-19 GM SUV Knuckle Box - Cast (UPC 658848615018)
• BDS021662, 14-18 GM 1500 - 15-19 GM SUV 1500 6 inch Frt Box Kit (1of2) (UPC 658848615032)
• BDS021663, 14-18 GM 1500 15-19 GM SUV 6 inch Frt Box Kit (2of2) (UPC 658848615049)
• BDS98166, 2014-2018 Chevy 1500 6 inch NX2 Strut Box Kit (UPC 711745610392)
