2015-2018 Sprinter 2500 4x4 Suspension Lift Kit (7057-UP)

This upgrade grouping is built specifically for owners with an existing Stage 4.3 kit who want to step up to 6.3 specifications (it also takes a Stage 3 to Stage 5). It pairs the front and rear lift components with three additional leaves to build out your existing rear mini pack. The result is the proven Striker 2" lift: more clearance for larger tires, more ground clearance to clear obstacles on the trail, all while retaining stock suspension geometry, payload rating and ride quality.

Features

• Upgrades an existing Stage 4.3 kit to 6.3 specifications (also Stage 3 to Stage 5)
• Adds three leaves to build out the existing rear mini leaf spring pack
• Provides a true 2" of lift front and rear for larger tires and added ground clearance
• Retains stock suspension geometry, payload rating and ride quality
• Components built in the USA, powder coated for durability and corrosion resistance

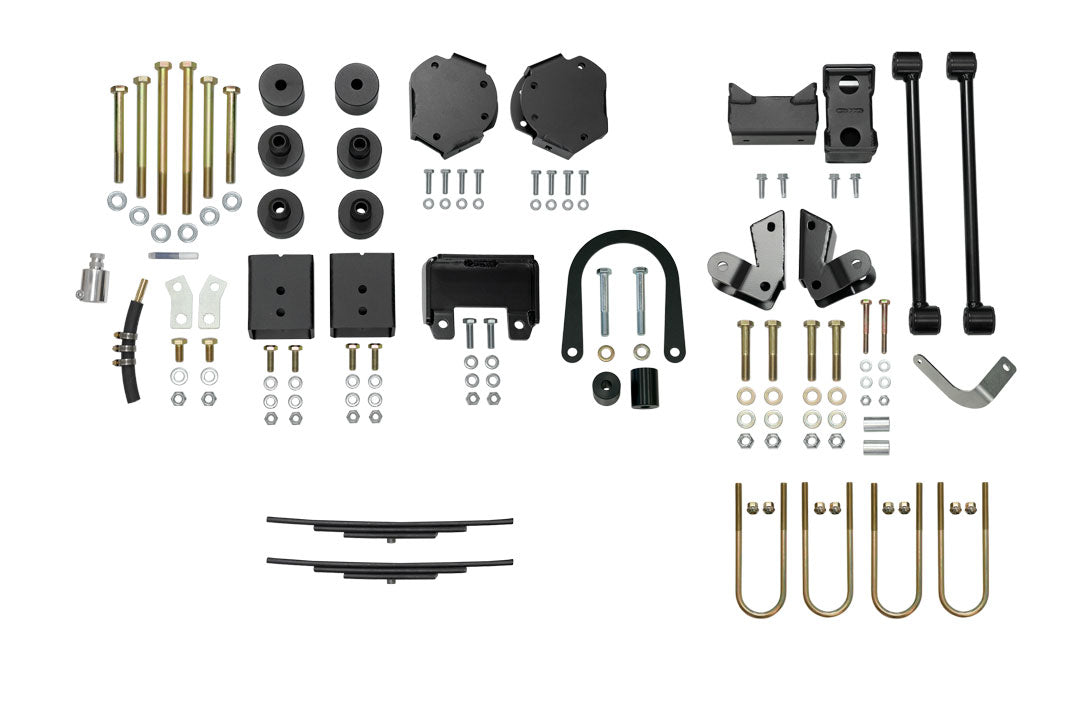

Included Components

• Front 2" strut spacers
• Front 2" subframe drop spacers
• Engine and transmission mount 2" lift spacers
• CNC Machined 2" steering shaft extension
• Low pressure power steering hose extension
• Front brake line relocation brackets
• 3 short leaves to convert 3-leaf Mini Leaf Spring pack to 6-leaf
• Extended rear sway bar links
• Rear lower shock relocation brackets
• Rear bump stop drop brackets
• Wind assist or headlight leveling sensor bracket
• All necessary hardware and detailed instructions

Important Notes

• Up to 35x12.50" Tire
• Raises Front 2"
• Raises Rear 2"

Installation Instructions

• 2015-2018 NCV3 4x4 Striker 2" Front Kit Installation Instructions
• 2019-2022 VS30 4x4 Striker 2" Front Kit Installation Instructions
• 2015-2018 NCV3 4x4 Striker 2" Rear Kit Installation Instructions
• 2019+ VS30 4x4 Striker 2" Rear Kit Installation Instructions

Labor Time

Recommended shop labor time: 12 hours.

Specifications

• Grade Type: Performance
• Maximum Lift: 2.0 IN
