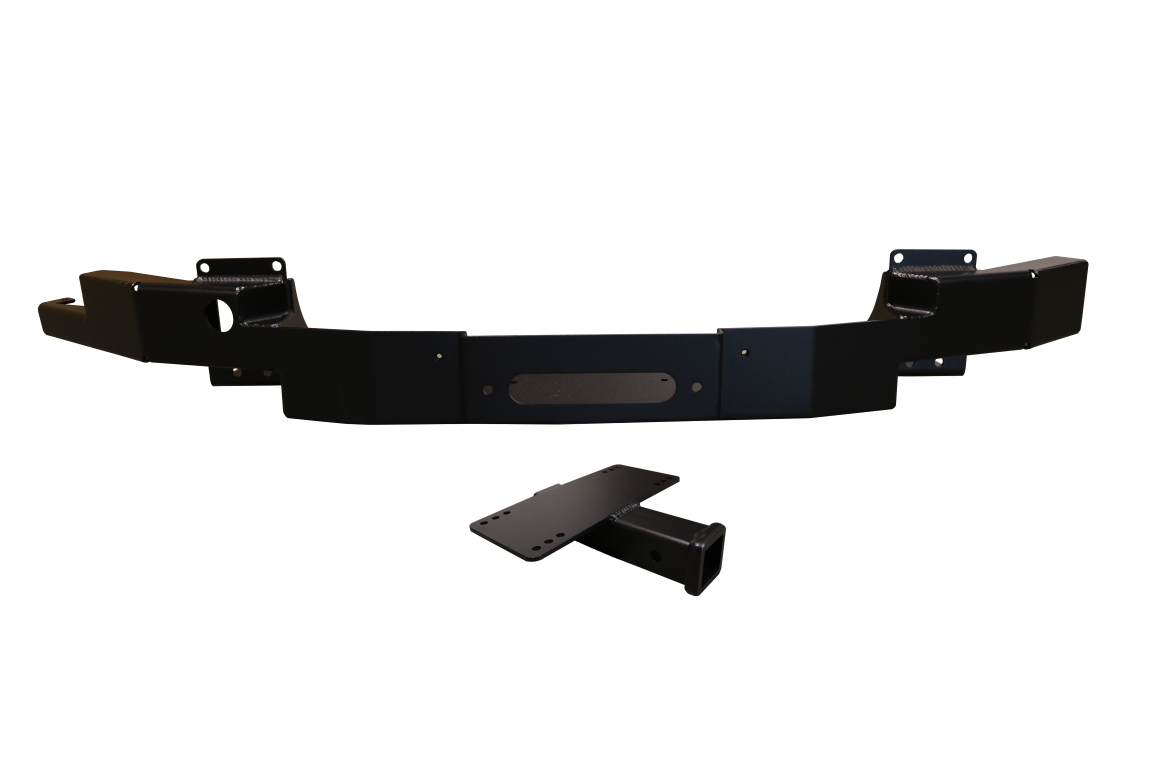

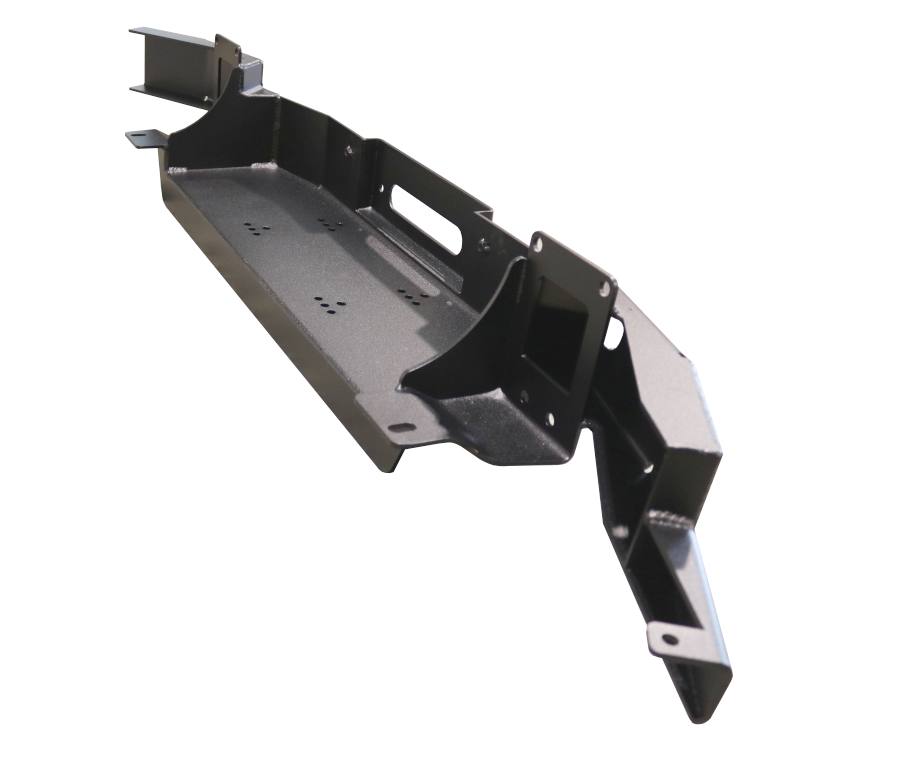

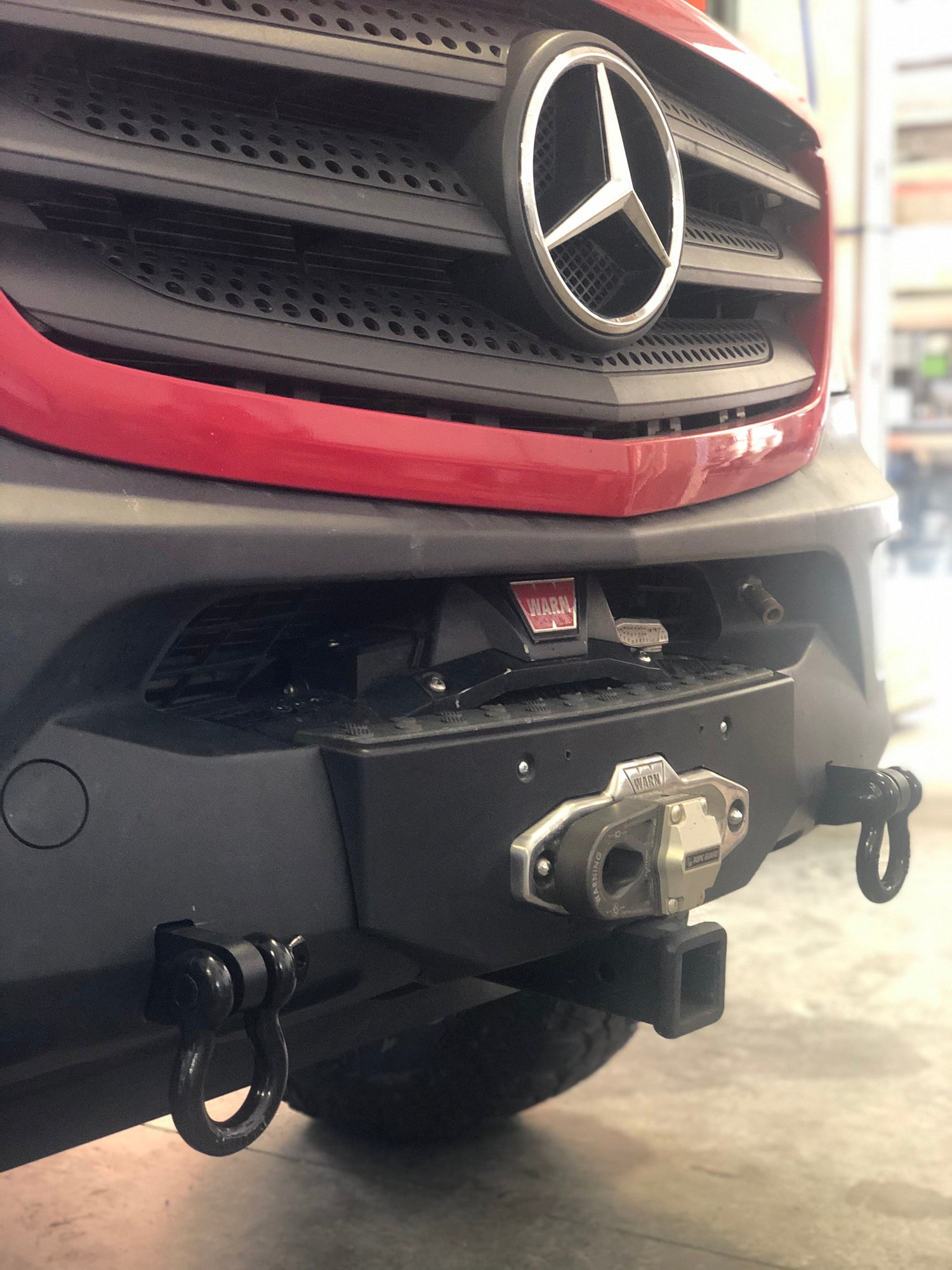

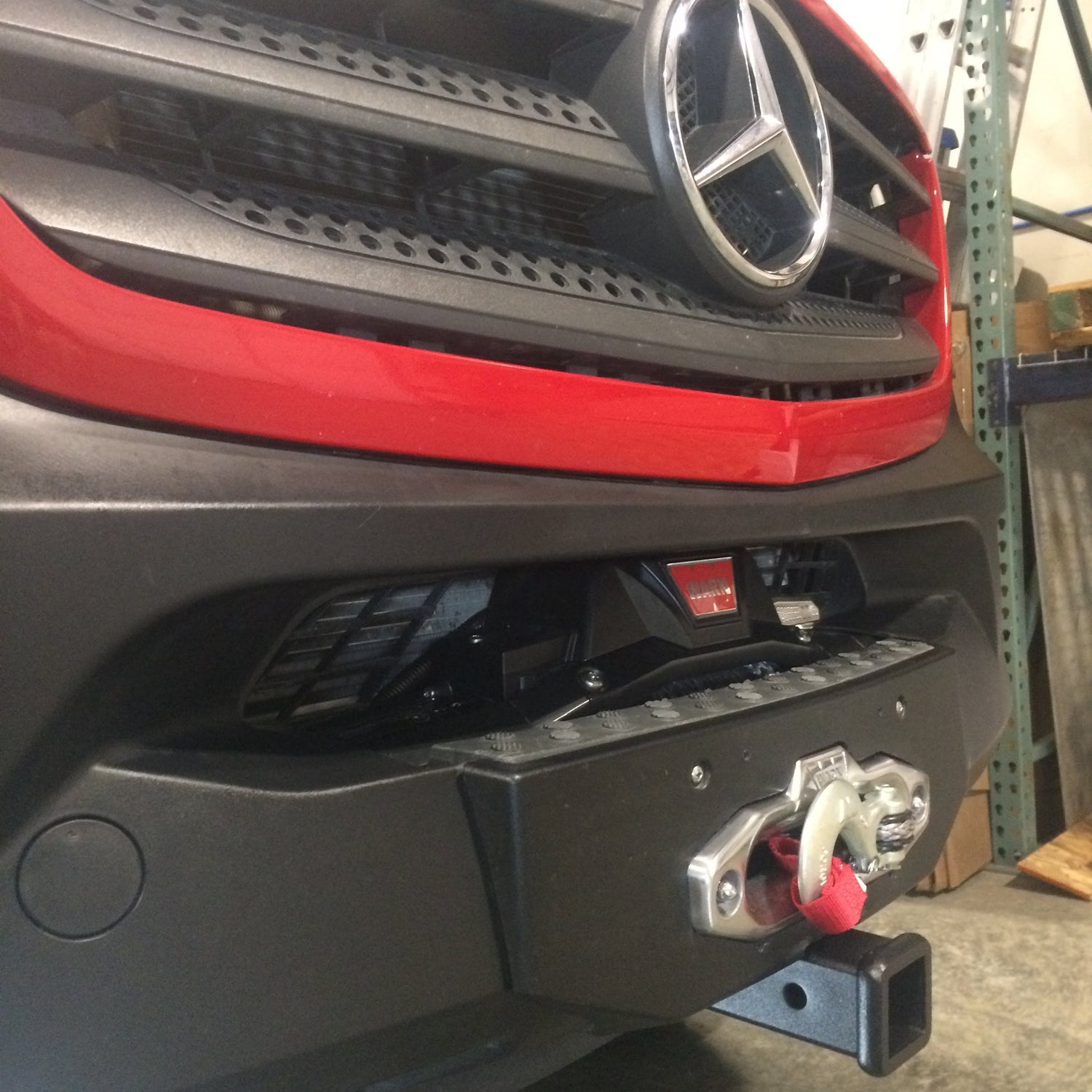

2015-2018 Sprinter Front Winch Bumper (4044)

Head down the dirt road knowing you've got a backup plan when a trail obstacle is just beyond your van's reach. This winch mounting system completely replaces the factory bumper under the plastic cover, giving your Sprinter a real recovery setup built from 3/16" steel plate and 1/4" square tube. Run two 3/4" thick recovery points, a 2" front receiver, or any combination you need.

Features

• Completely replaces the factory bumper under the plastic cover
• Constructed from 3/16" steel plate and 1/4" square tube

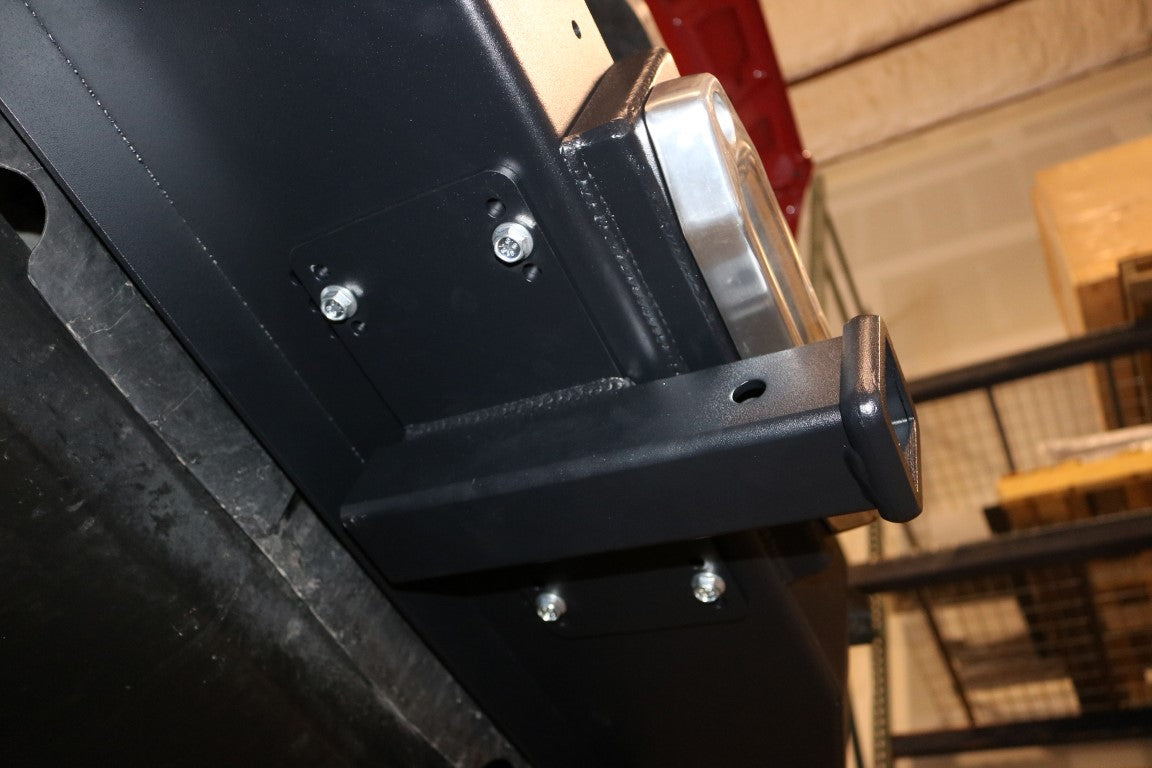

• Includes two front 3/4" thick recovery points and an optional 2" front receiver hitch
• Run all three bolt-on accessories or any combination you want
• Powder coated black over a zinc primer for maximum corrosion resistance
• Designed around the Warn Zeon series; reference the Warn Zeon 12 for maximum winch size

Included Components

• Front Hitch Mount
• Bolt On Shackle Mounting Points
• Mounting Hardware

Important Notes

• without Rear A/C
• The front hitch should only be used on vans without collision assist / brake sensors, as carrying gear can cause sensor warnings.
• Designed around the Warn VR series of winches. Many other winches are compatible with this kit, but please reference the Warn VR 12-S winch for the maximum winch size.
• Not compatible with 4-cyl diesel or gas engine.
• Not compatible with vans that have the HD Rear AC Package, the additional cooling fans do not clear.

Installation Instructions

• NCV3 Sprinter winch mount installation instructions
• NCV3 Sprinter recovery point installation instructions

Labor Time

Recommended shop labor time: 6 hours.

Specifications

• Material: Steel | Finish: Powder Coated (Black)
• Configuration: One Piece | Grade Type: Winch
• Hitch Receiver Static Load Capacity: 300 lbs
• Product Weight: 52 lbs
