2015-2020 F-150 4" Lift Kit with NX2 Nitro Shocks (BDS1523H)

BDS 4" suspension lift kit for 2015-2020 Ford F150 2WD, with clearance for up to 35" tires. The high-clearance front end uses 1/4" steel crossmembers and a differential skid plate, CNC-machined ductile iron steering knuckles to correct steering geometry, plus sway bar relocation brackets, brake line brackets, and alignment cam bolts. The rear uses fabricated lift blocks and longer u-bolts with NX2 Nitro or optional FOX 2.0 Performance shocks.

Features

• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles correct steering geometry and maintain ESC compatibility
• Top mounted strut spacers provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts level the stance
• Standard NX2 Nitro shocks with vehicle-specific valving
• Upgrade to FOX 2.0 Performance Series shocks for max on- and off-road performance

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Notes

• Trimming may be required
• 35x12.5 with 18x9 and 5.5" backspace
• 35x12.5 with 20x9 and 5.5" backspace

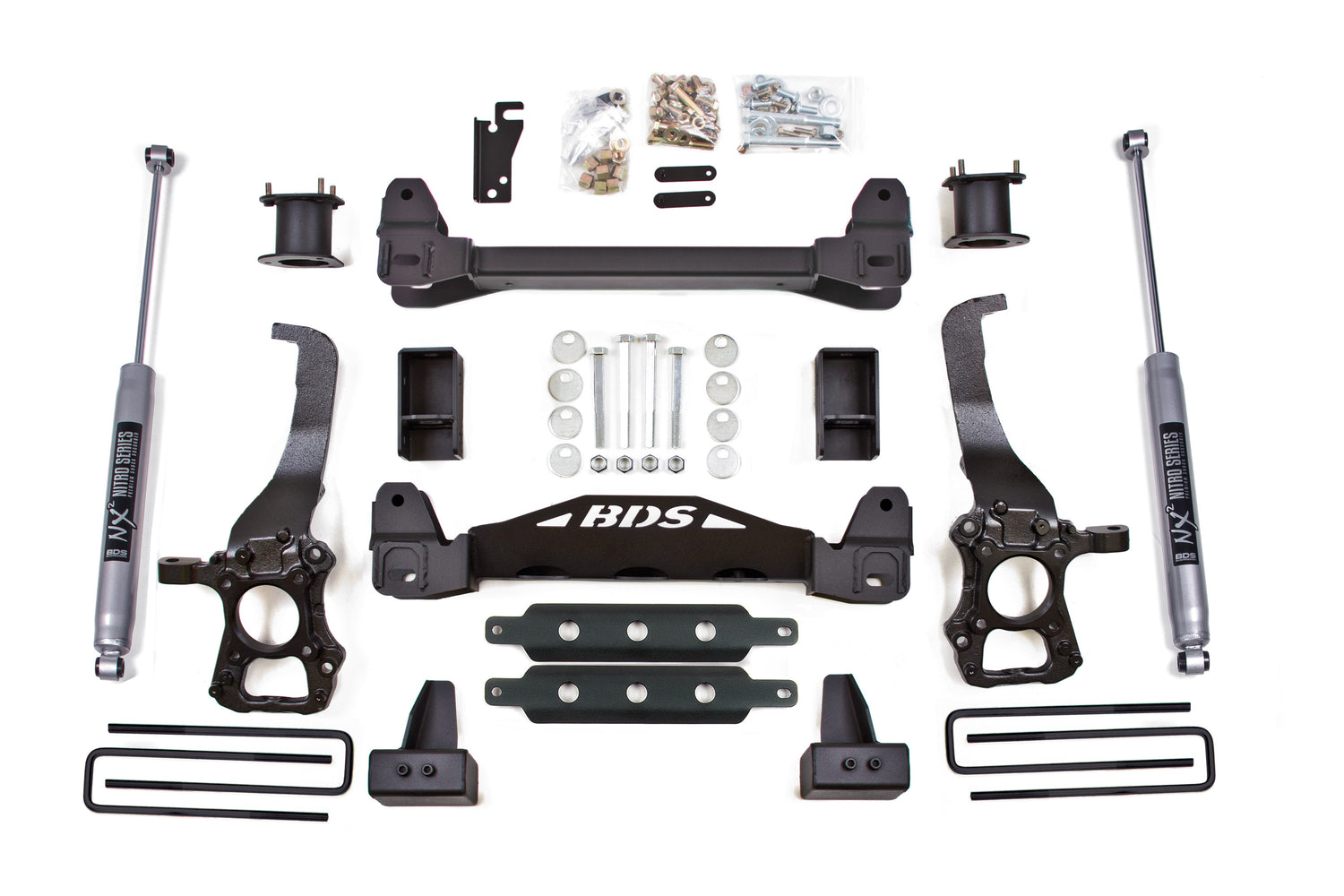

Includes

• BDS013429, 09-15 F150 4 inch Rear Block Kit (UPC 658848613519)
• BDS023404, 2014-2020 Ford F150 4 Inch Spacer Box Kit (UPC 658848615636)
• BDS023634, 2015-2020 Ford F150 Knuckle Box Kit - DS (UPC 658848615919)
• BDS023635, 2015-2020 Ford F150 Knuckle Box Kit - PS (UPC 658848615926)
• BDS023644, 2015-2020 Ford F150 2wd Box Kit (UPC 658848615933)
• BDS85828, Shock- 30.95 x 18.20 x 2-3/8 - EB1/EB1 (UPC 711745609877)
