2015-2020 F-150 6" Lift Kit with FOX 2.0 Performance Shocks (BDS1918FS)

BDS Suspension leads the industry by developing a 2wd specific 6 inch lift kit suspension system for your 2015-2020 Ford F150 2WD truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Features

• 18 inch wheels with 5-5.5 inch total backspacing should be tested before mounting to ensure proper clearance to BDS steering knuckle.
• The 4 inch blocks will net a level/tail LOW stance. The 5 inch blocks will net a level/tail HIGH stance.
• This system WILL WORK on Diesel Models.
• Will not fit HD models (7 lug).
• This kit is FMVSS No.126 Compliant
• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• Tail low to level stance
• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5.5

Notes

• 18 inch or larger diameter wheels are required. Stock 17 inch and 18 inch wheels cannot be reinstalled. Stock 20 inch wheels can be used with up to 305/60-20 Tires.
• Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406

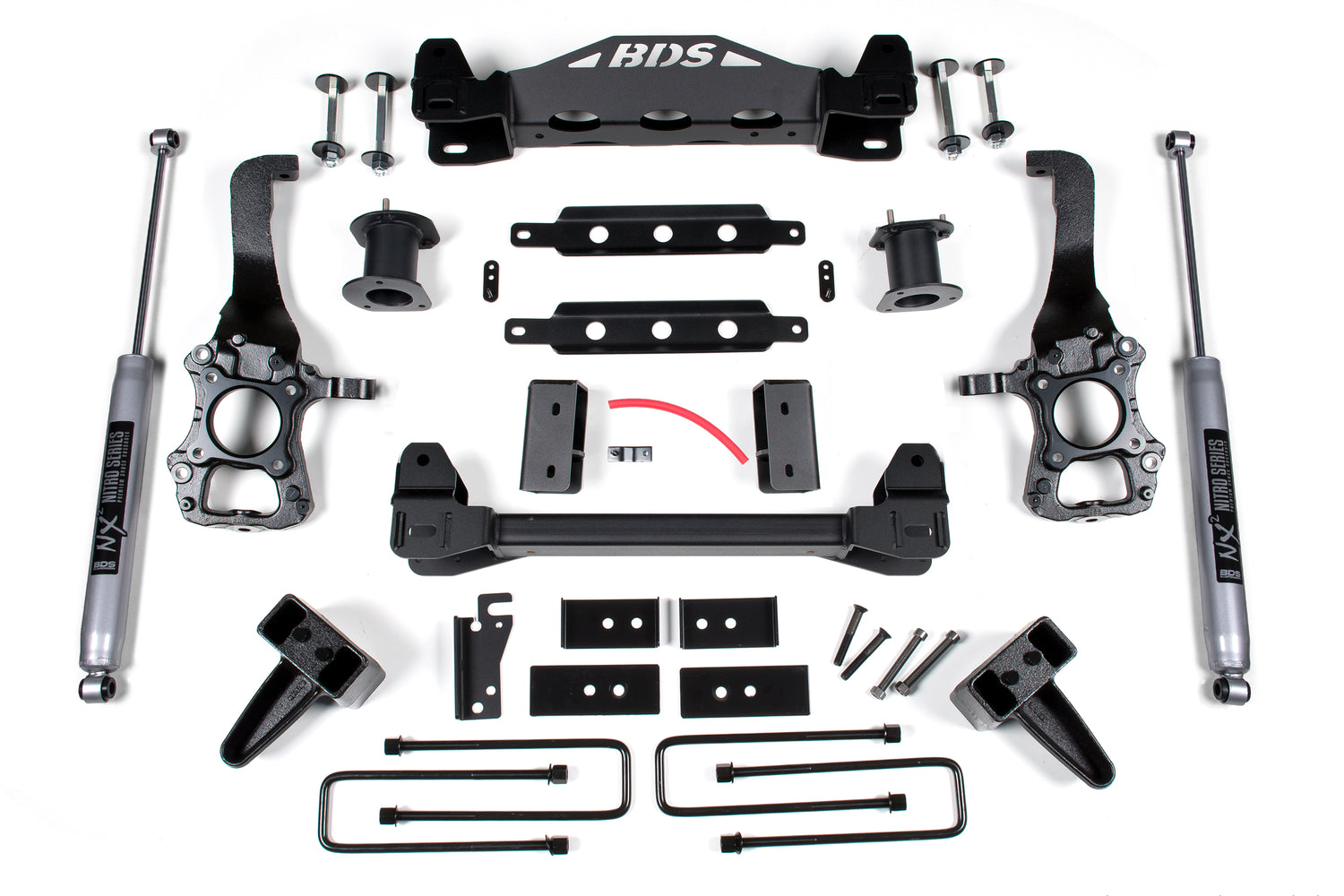

Includes

• BDS013429, 09-15 F150 4 inch Rear Block Kit (UPC 658848613519)
• BDS023605, 2014-15 F150 6 Inch Spacer Box Kit (UPC 658848615780)
• BDS023634, 2015-2020 Ford F150 Knuckle Box Kit - DS (UPC 658848615919)
• BDS023635, 2015-2020 Ford F150 Knuckle Box Kit - PS (UPC 658848615926)
• BDS023644, 2015-2020 Ford F150 2wd Box Kit (UPC 658848615933)
• FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
