2015-2019 Yukon / Suburban 6" Lift Kit (BDS752H)

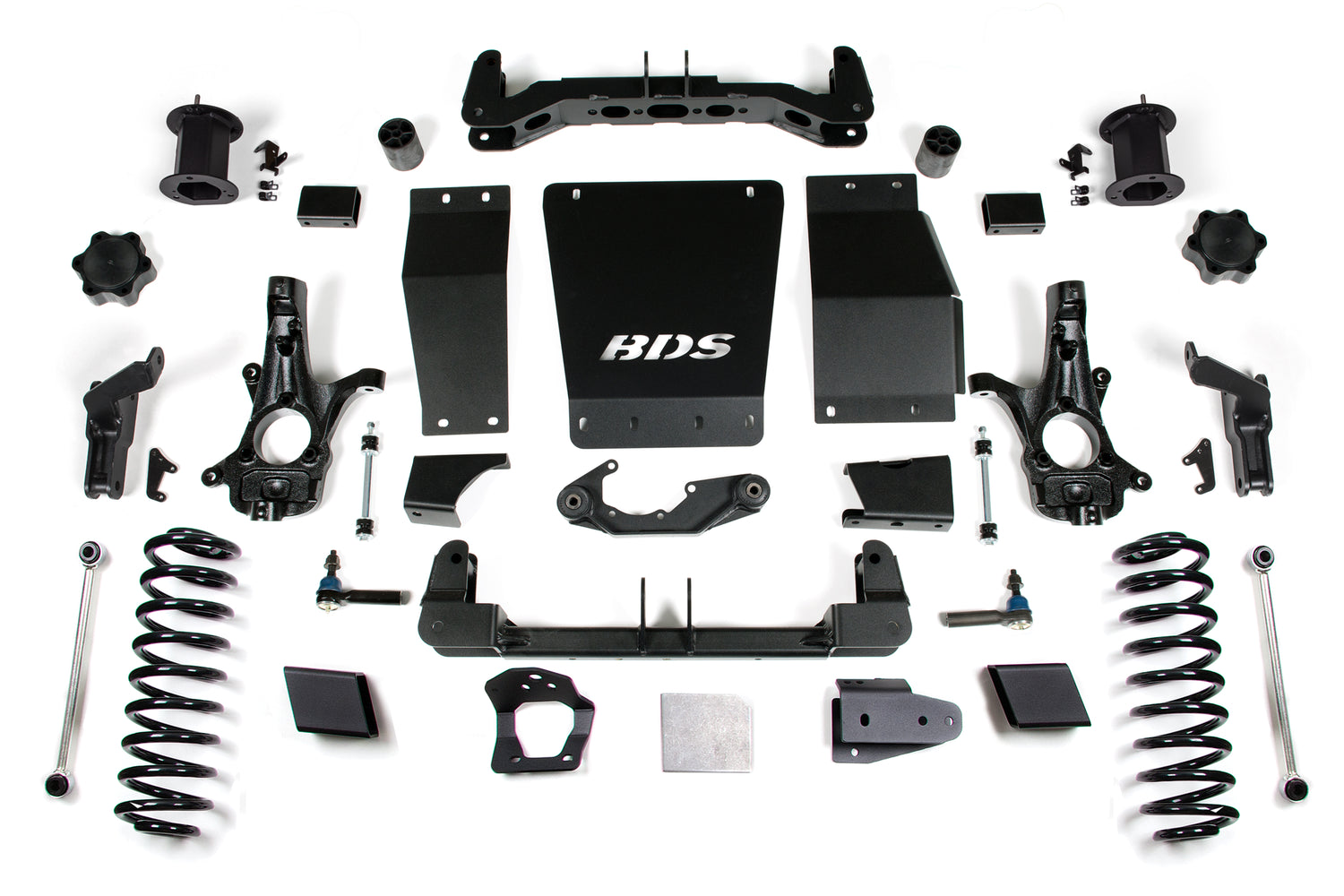

Take your 2015-2019 Chevy Suburban or Tahoe and GMC Yukon 1500 to new heights with this BDS 6" lift kit, with clearance for up to 35" tires. The high-clearance front uses a top mounted strut spacer, 1/4" steel crossmembers, multipiece differential relocation brackets, heavy duty skid plates, and CNC-machined ductile iron steering knuckles to correct geometry at ride height, plus sway bar drops, bump stop extensions, brake line brackets, and CV spacers. The rear gets Pro-Ride coil springs, sway bar links, a track bar relocation system, and adjustable upper control arms for pinion angle.

This kit works only on Magneride equipped SUVs. Rear sensors relocate with supplied brackets and shock extensions retain the factory electronic dampers.

Features

• Includes shock relocation brackets to maintain factory Magneride shocks
• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• High-strength replacement upper control arms provide durability and serviceability
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Coil Springs
• Shocks Included: No
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 34x12.5, 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5.75

Notes

• Works only on Magneride equipped SUVs.
• Frame bracket modification and welding are required.
• 20" wheels with 5" to 5-3/4" backspacing are recommended to reduce trimming.
• AWD models may require front driveline modification.
• Factory 17" and 18" wheels cannot be reinstalled due to tie rod interference.
• GM produced several knuckle/control arm configurations in 2015-2016 trucks. Cast Steel control arm models require the Cast Steel Control Arm kit; Stamped Steel and Aluminum control arm models require the Aluminum Control Arm kit. Verify which factory control arms your truck has before ordering.

Includes

• BDS021518, 15-19 GM SUV AutoRide Rear 5in Box Kit (UPC 658848614752)
• BDS021661, 14-18 GM 1500 - 15-19 GM SUV Knuckle Box - Alum/Stamped (UPC 658848615025)
• BDS021662, 14-18 GM 1500 - 15-19 GM SUV 1500 6 inch Frt Box Kit (1of2) (UPC 658848615032)
• BDS021663, 14-18 GM 1500 15-19 GM SUV 6 inch Frt Box Kit (2of2) (UPC 658848615049)
• BDS121660, 15-19 GM SUV MagneRide Front Box Kit (UPC 658848619269)
