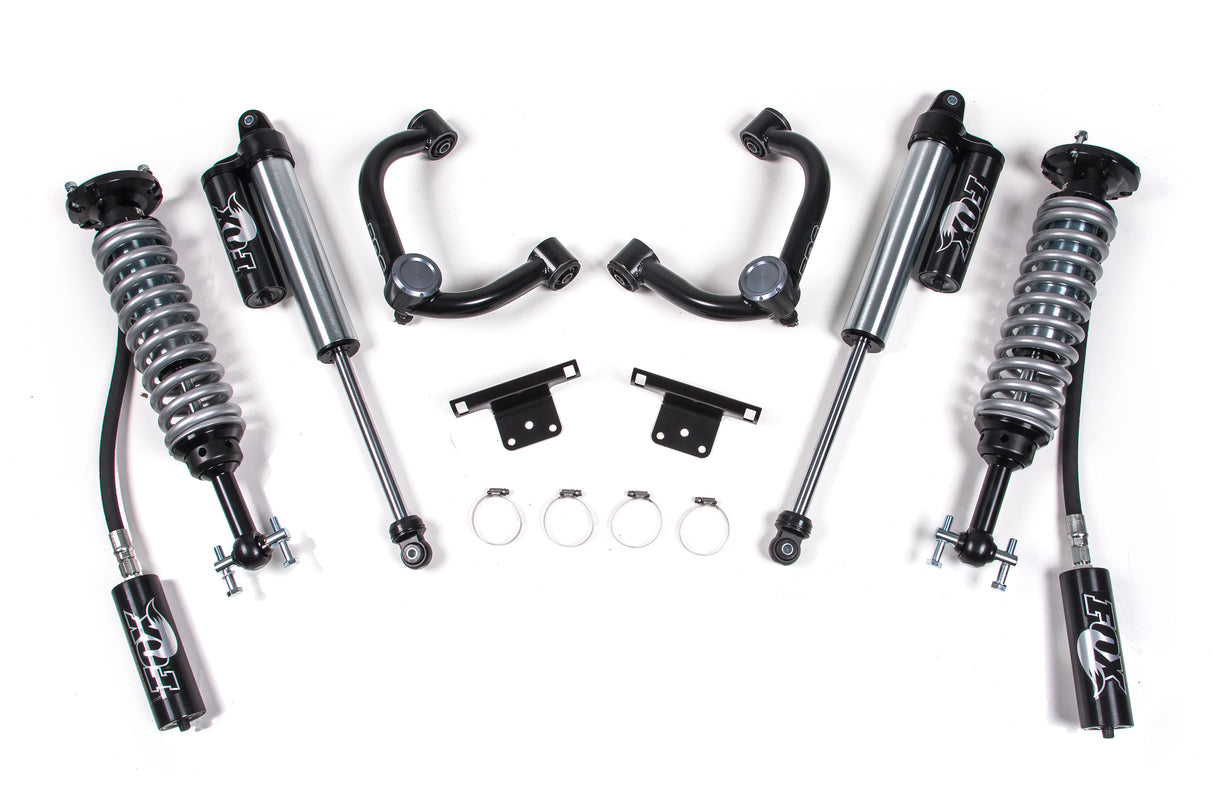

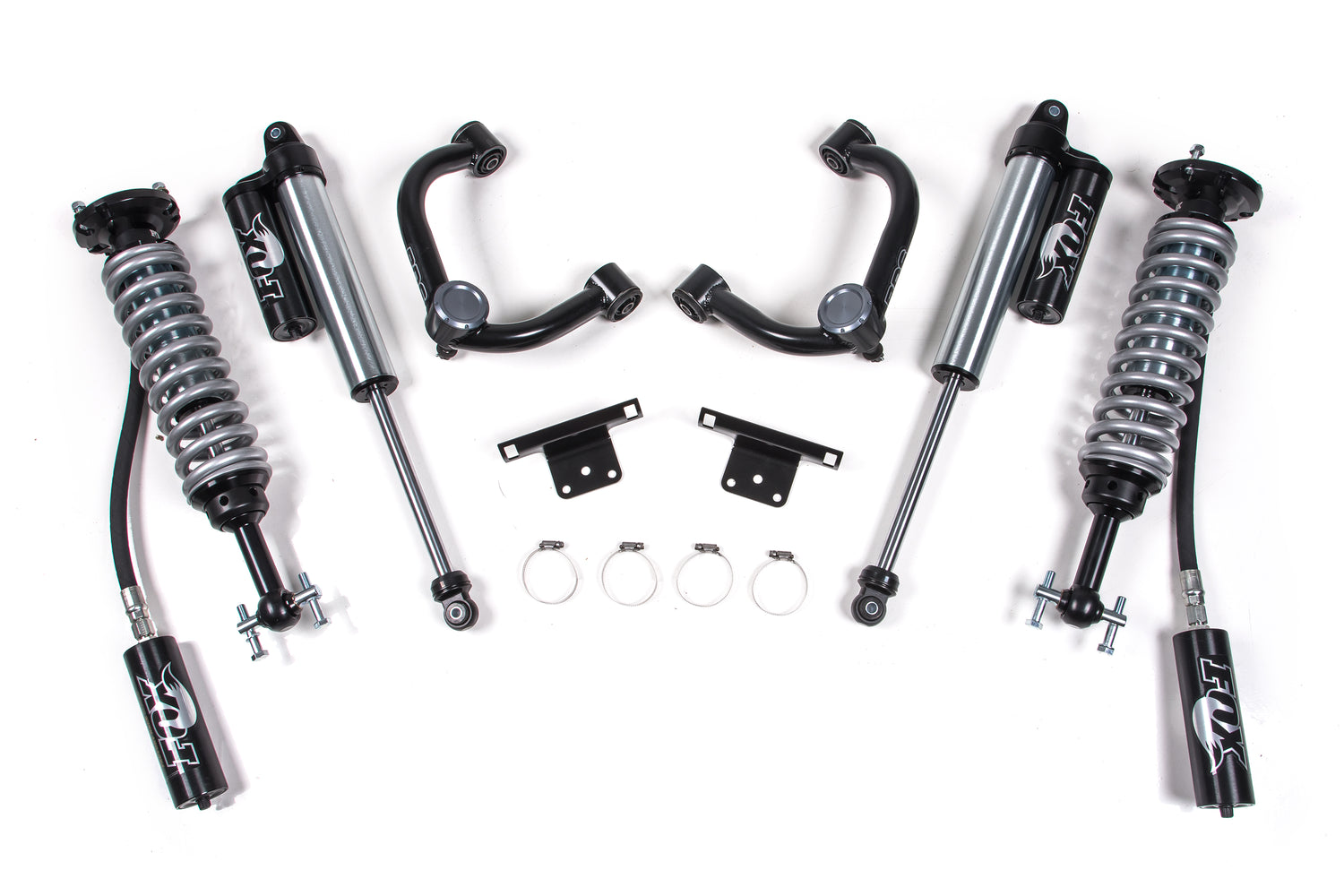

2015-2020 F-150 2" Lift FOX 2.5 DSC Coilover w/ UCA (BDS1553FDSC)

This 2-inch lift kit for 2015-2020 Ford F-150 trucks enhances stance, capability, and ride quality. It features FOX 2.5 coil-over shocks with DSC technology and heavy-duty BDS tubular upper control arms for customizable suspension tuning and improved strength up front, while FOX 2.0 Performance shocks smooth out the rear ride. Engineered to fit 4WD, 4-door models with clearance for tires up to 35", this kit delivers both off-road performance and on-road comfort.

Features

• Includes FOX 2.5 Factory Series remote-reservoir coil-over shocks with dual speed compression (DSC) adjustment for customizable on-road and off-road damping
• Heavy-duty tubular upper control arms (UCAs) with 1.5" OD x .120-wall construction for increased strength and travel
• Maintenance-free durometer-specific rubber bushings and greaseable ball joints for durability and smooth operation
• Compatible with 2015-2020 Ford F-150 4WD and 4-door configurations
• Improves stance, performance, and ride quality with clearance for up to 35" tires
• Rear FOX 2.0 Performance shocks for a smooth ride
• Precision valving and reservoir design eliminate oil aeration for maximum shock performance

Shock Features

FOX 2.5 coil-overs feature optional dual speed compression (DSC) adjustment allowing you to tune both high-speed and low-speed compression damping. This lets you dial in a comfortable on-road ride or more aggressive off-road control with simple, immediate feedback via two clearly marked knobs.

Control Arm Features

These upper control arms are built for strength, performance, and increased suspension travel. Made from 1.5" OD x .120-wall tubing with indexed ball-joint cups, they correct ball-joint positioning and allow additional down travel and camber adjustment. The frame mounts have durometer-specific rubber bushings for maintenance-free operation, while the arms include greaseable ball joints for quiet, durable performance. Finished in robust black powder coat with billet aluminum dust caps, they are ready to install right out of the box.

Manufacturer Description

Level out your Ford F150 and improve the ride with this 2-inch lift kit featuring FOX 2.5 coil-over shocks from BDS Suspension. Up front the kit includes FOX 2.5 Factory Series remote-reservoir coil-over shocks and heavy-duty tubular upper control arms for increased strength and travel. In the rear it uses a complementary set of FOX 2.0 Performance shocks for the smoothest ride.
