2015-2020 F-150 3.5" Lift Front SST Lift Kit (69-2300)

The ReadyLIFT 3.5" SST Lift Kit is a suspension system developed to give F-150 owners a packaged front/rear lift option that lifts the front of the vehicle 3.5 inches with 2 inches in the rear. This creates a popular overall lifted stance that is high enough to allow for 35x11.50 tires while maintaining the factory ride. This new SST lift kit is centered around DOM tubular steel Upper Control Arms with a 14-degree ball joint cup to insure proper geometry and alignment, along with the proprietary ReadyLIFT heavy duty ball joint and one-time grease TCT polyurethane bushings. The 3.5 inch lift height is achieved using a unique offset top mount spacer design (2 inches of lift) and a machined billet pre-load spacer (1.5 inches of lift) which installs between the top of the spring and the bottom of the strut hat to pre-load the spring. This also acts as a droop limiter to insure CV axles durability on 4WD models. To lift the rear, the kit includes OEM style 3 inch tall cast rear lift blocks with built-in bump stop landing pads and a carrier bearing spacer for trucks with a two-piece driveshaft.

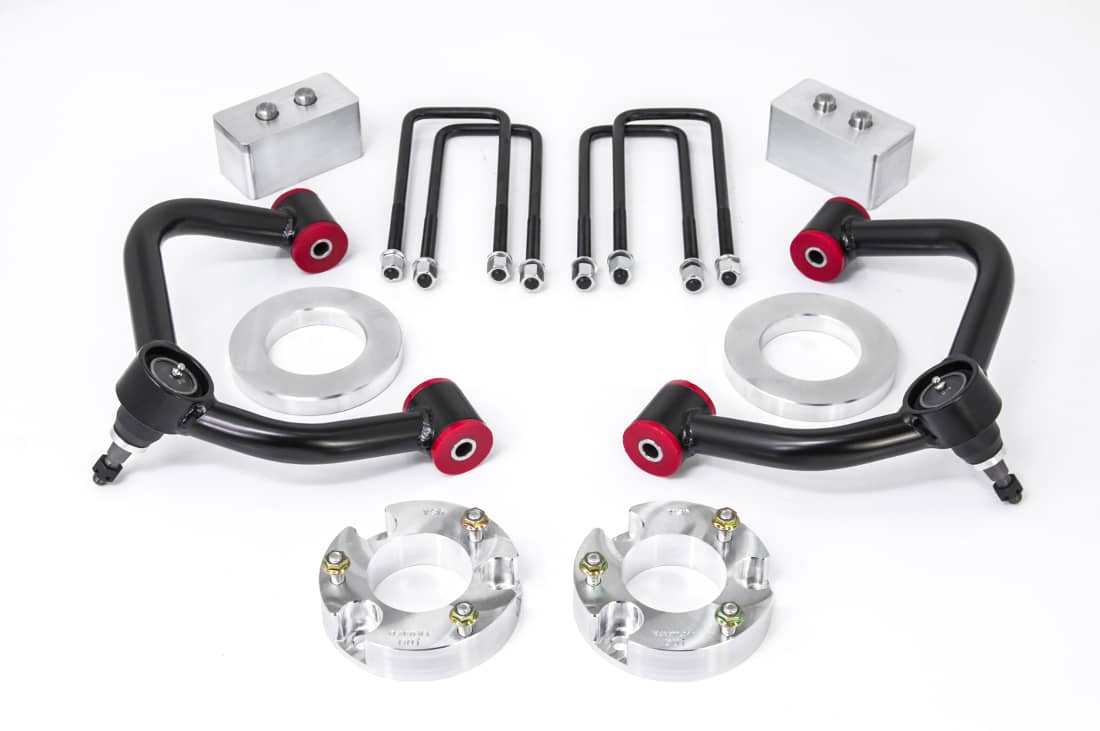

Features

• Max Lift: 3.5 inches Front / 2 inches Rear
• Includes heavy duty DOM tubular steel Upper Control Arms with a 14-degree ball joint cup for proper geometry
• Control Arms include proprietary ReadyLIFT heavy duty ball joints and one-time grease TCT polyurethane bushings
• Front lift is achieved using CNC-machined billet aluminum offset top mount strut extensions (2 inches lift) and a machined billet pre-load spacer (1.5 inches lift)
• Pre-load spacer acts as a droop limiter for CV axles durability on 4WD models
• Includes OEM style 3 inch tall cast rear lift blocks with built in bump stop landing pads
• Includes a carrier bearing spacer for trucks with a two-piece driveshaft
• No Cutting of OEM Parts or Welding required
• Maintains Factory Ride

Specs

• Front Lift: 3.5 inches (Total)
• Rear Lift: 2.0 inches (from OEM block equivalent - 3 inch tall blocks provided)
• Upper Control Arms: DOM tubular steel
• Max Tire Size: 35 inches (35x12.50 Max on a 9 inch wide wheel with +12 offset)

Compatibility Notes

• Fits Ford F-150 2WD/4WD models from 2015 to 2020.
• Compatible with both 1-piece and 2-piece driveshafts.
• Not for use on trucks that are factory pre-lifted/leveled or that have the "off-road package." Check factory height prior to ordering or installing. Trucks with more than 22 inches of wheel hub to fender lip height may require less lift.
• 2WD drive trucks may need the 1.5 inch Block kit PN 66-2051 to minimize rake.
• Some minor trimming may be necessary depending on the tire design.

Notes

• The product is backed by a Limited Lifetime Warranty.
• Your vehicle may require alignment, and headlamps/ADAS systems must be checked and adjusted for proper aim and function after product installation.
