2015-2020 F-150 3.5" SST 2.1 Lift Kit (62-23040)

Description

Unmatched curb-appeal and rugged mid-size truck capability delivered in an affordable yet innovative Smart Suspension Technology “no-cut” lift kit. The ReadyLift 3.5" SST 2.1 Lift Kit turns your F-150 into an imposing machine on or off-road. It features custom-tuned, adjustable-position Falcon shocks that deliver comfort with predictive handling, control, and stability.

Part Number: 62-23040

Features

• 3.5” front lift with 2.5” rear blocks
• DOM tubular steel Upper Control Arms w/ HD high-angle proprietary ball joints

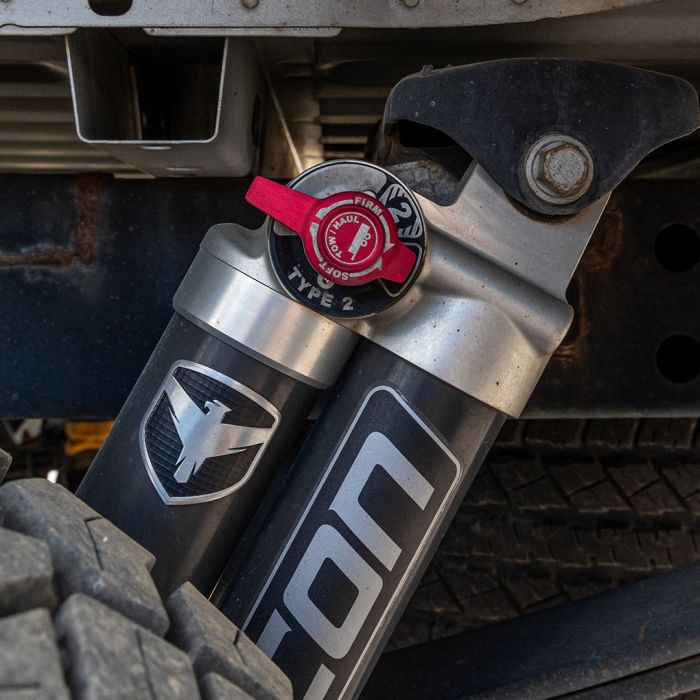

• Vehicle-specific performance-tuned Falcon 2.1 dampers
• Improved dynamic roll control and low-speed damping
• Dramatic improvement in on-road comfort and off-road performance.
• Optimized fitment for unobstructed suspension travel and articulation.
• 6061-T6 aluminum alloy shock body resists Impact to protect internal components
• Smooth-honed internal shock body surface for long-term performance
• 3/4” induction-hardened chrome-plated shaft resists rock damage, corrosion, and shaft buckling
• Large shaft diameter provides a wide range of adjustments on adjustable shocks
• Hard anodized 6061-T6 aluminum alloy billet piston
• 1-piece Teflon bronze piston wear band w/ O-ring

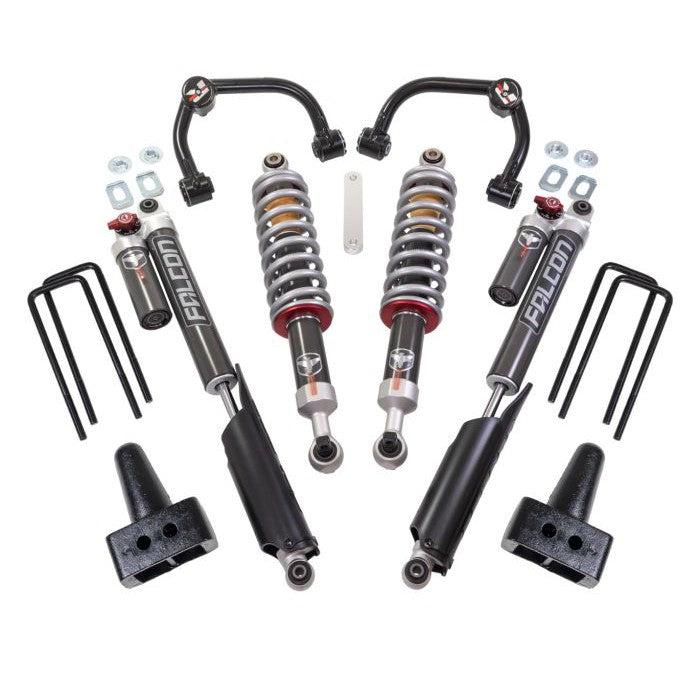

Includes:

• Falcon 2.1 Monotube Front Schock
• Falcon 2.1 Tow Shock
• Upper control arm set
• Alignment cam & plate

• 3'' Rear block kit
• Carrier Bearing
• All necessary hardware

Additional Info

Tire Fitment

• Allows for up to 295/60R20 on a 9" wide and +18 offset
• Fit up to a 35" x 12.5" wheel 20" x 9" with +12 offset with minor trimming

• 35x12.50 Max on a 9" wide wheel with +12 offset

Some minor trimming may be necessary, depending on the tire design.

Recommended tire:

• 285-50-R22
• 285-65-R20
• 285-75-R18

Notes

• Check the factory height before ordering or installing. Trucks with more than 22" of wheel hub to fender lip height may require less lift.

Installation

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.

• Click Here to view installation instructions
