2015-2020 F-150 4" Lift Kit with FOX 2.5 Performance Elite Shocks (BDS1590FPE)

Maximize the 2015-2020 Ford F150 with this BDS 4" coil-over lift kit running FOX Performance Elite 2.5 coil-over shocks, with clearance for up to 35" tires. Up front it uses FOX 2.5 remote reservoir coil-overs, high-arched 1/4" steel crossmembers, differential relocation brackets and a skid plate, plus CNC-machined ductile iron steering knuckles that correct steering geometry and keep ESC compatible. The rear runs fabricated lift blocks, longer u-bolts and FOX 2.0 Performance Series shocks.

The FOX 2.5 Performance Elite shocks add a remote reservoir for extra fluid capacity and cooling, with Dual Speed Compression Adjusters offering 10 low-speed and 12 high-speed settings.

Features

• FOX 2.5 remote reservoir coil-over shocks for increased travel
• Dual Speed Compression Adjust: 10 low-speed and 12 high-speed compression settings via twist knobs
• Black anodized aluminum reservoir to increase cooling efficiency
• High clearance 1/4" steel crossmembers improve strength and off-road capability
• Heavy duty CNC-machined steering knuckles correct steering geometry and maintain ESC compatibility
• Differential skid plate for off-road protection
• Rear lift blocks and u-bolts to lift and level the stance
• 2.5" Impact extruded aluminum body
• 7/8" hard chrome plated heat-treated alloy steel shaft
• External reservoir separates shock oil from high-pressure nitrogen
• Fully serviceable for a lifetime of use
• 1-year manufacturer's warranty

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5.5

Notes

• Requires frame bracket modification.
• 18" wheels with 5-5.5" total backspacing should be test fit prior to mounting the tire to ensure clearance to the BDS steering knuckle.
• 18" or larger diameter wheels are required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tire.
• The 4" blocks net a level/tail LOW stance. The 5" blocks net a level/tail HIGH stance.
• Will not fit HD models (7 lug).

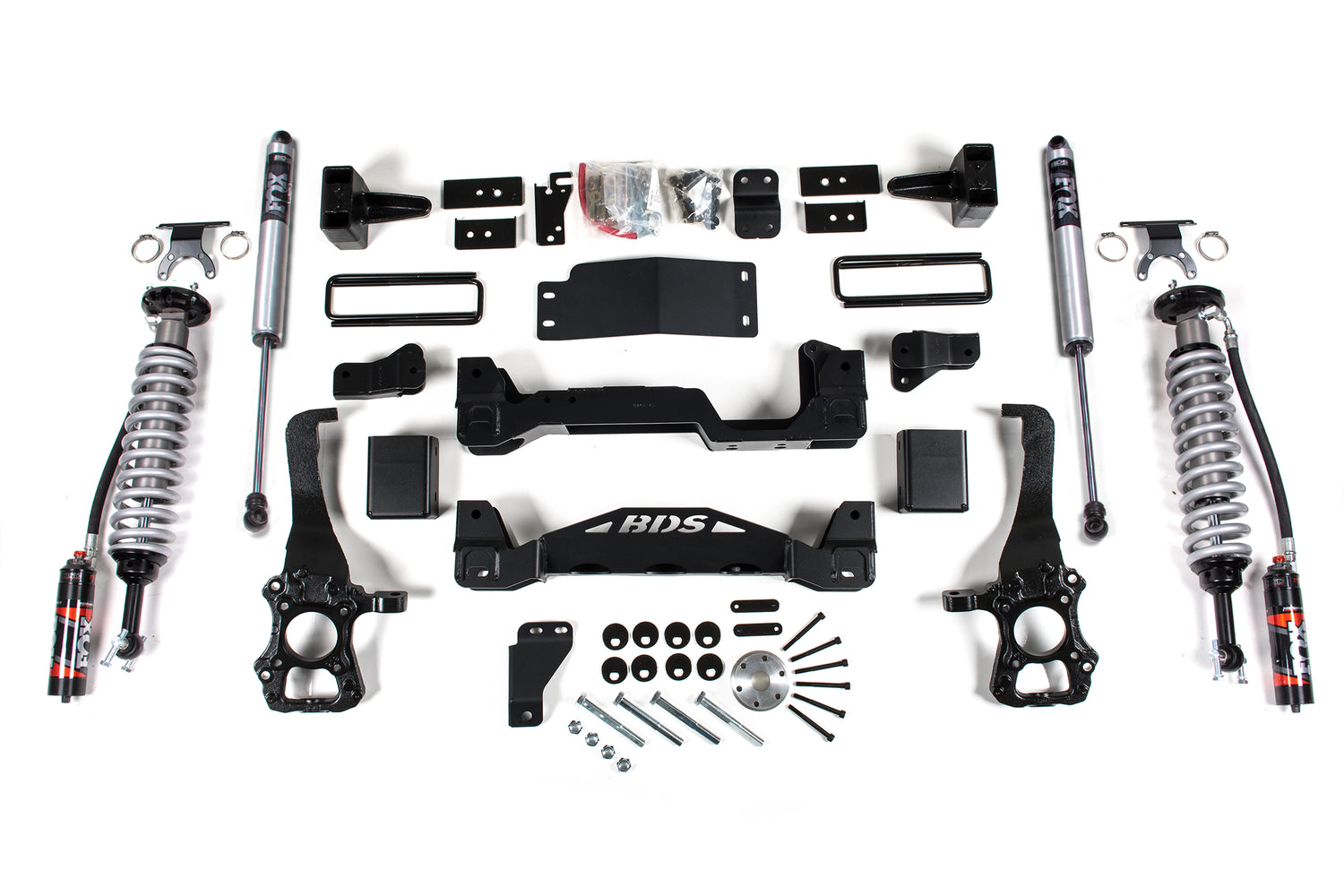

Includes

• BDS013439, 2015-2020 Ford F150 4 inch Rear Block Kit (UPC 658848613557)
• BDS023634, 2015-2020 Ford F150 Knuckle Box Kit - DS (UPC 658848615919)
• BDS023635, 2015-2020 Ford F150 Knuckle Box Kit - PS (UPC 658848615926)
• BDS023650, 2015-2020 Ford F150 Front Box Kit (1of2) (UPC 658848615940)
• BDS023651, 2015-2020 Ford F150 Front Box Kit (2of2) (UPC 658848615957)
• FOX88406325, Kit: BDS 2015-2024 Ford F150, Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R, 4 inchРЎСљ Lift, Dual Speed Compression Adjust
• FOX88426025, Kit: BDS 2015-2024 Ford F150, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 4 inch-6 inch Lift Heights
