2015-2020 F-150 4" Lift Kit with NX2 Nitro Shocks (BDS1909H)

Improve the performance and capability of your 2015-2020 Ford F-150 2WD truck with this BDS 4" lift kit with clearance for up to 35" tires. The high-clearance front end uses 1/4" thick high-arched steel crossmembers, a skid plate, and CNC-machined ductile iron steering knuckles with sway bar relocation brackets, brake line brackets, and alignment cam bolts to correct geometry at the new ride height. The rear uses high-strength fabricated lift blocks and longer u-bolts with NX2 Nitro or optional FOX 2.0 Performance Series shocks.

Features

• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• Tail low to level stance
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

Notes

• Trimming may be required.
• Fitment: 35 x 12.5 with 18 x 9 and 5.5 in. Backspace; 35 x 12.5 with 20 x 9 and 5.5 in. Backspace.

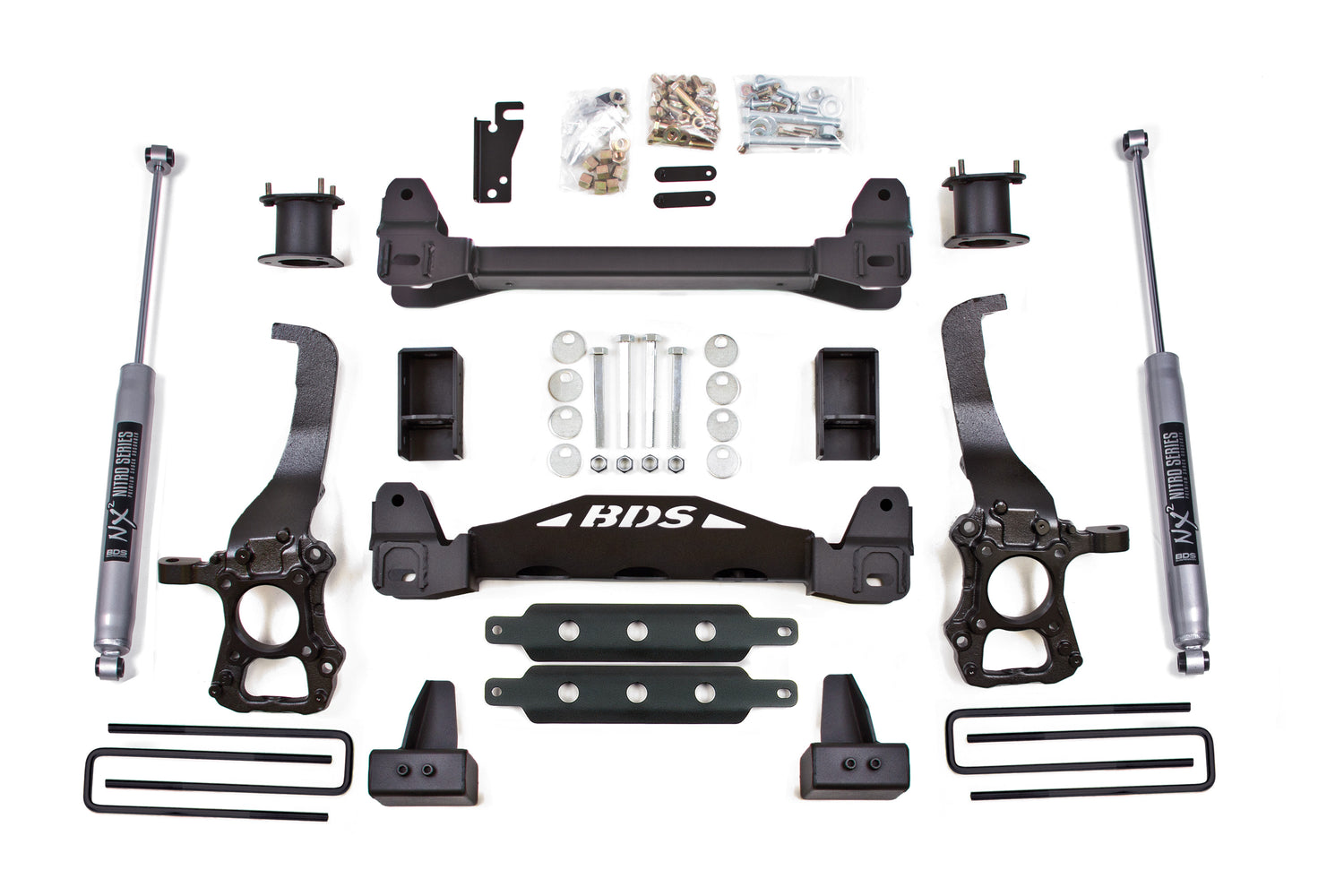

Includes

• BDS013327, 2015-2020 Ford F150 3-1/4 inch Rear Box Kit (UPC 711745611740)
• BDS023404, 2014-2020 Ford F150 4 Inch Spacer Box Kit (UPC 658848615636)
• BDS023634, 2015-2020 Ford F150 Knuckle Box Kit - DS (UPC 658848615919)
• BDS023635, 2015-2020 Ford F150 Knuckle Box Kit - PS (UPC 658848615926)
• BDS023644, 2015-2020 Ford F150 2wd Box Kit (UPC 658848615933)
• BDS85828, Shock- 30.95 x 18.20 x 2-3/8 - EB1/EB1 (UPC 711745609877)
