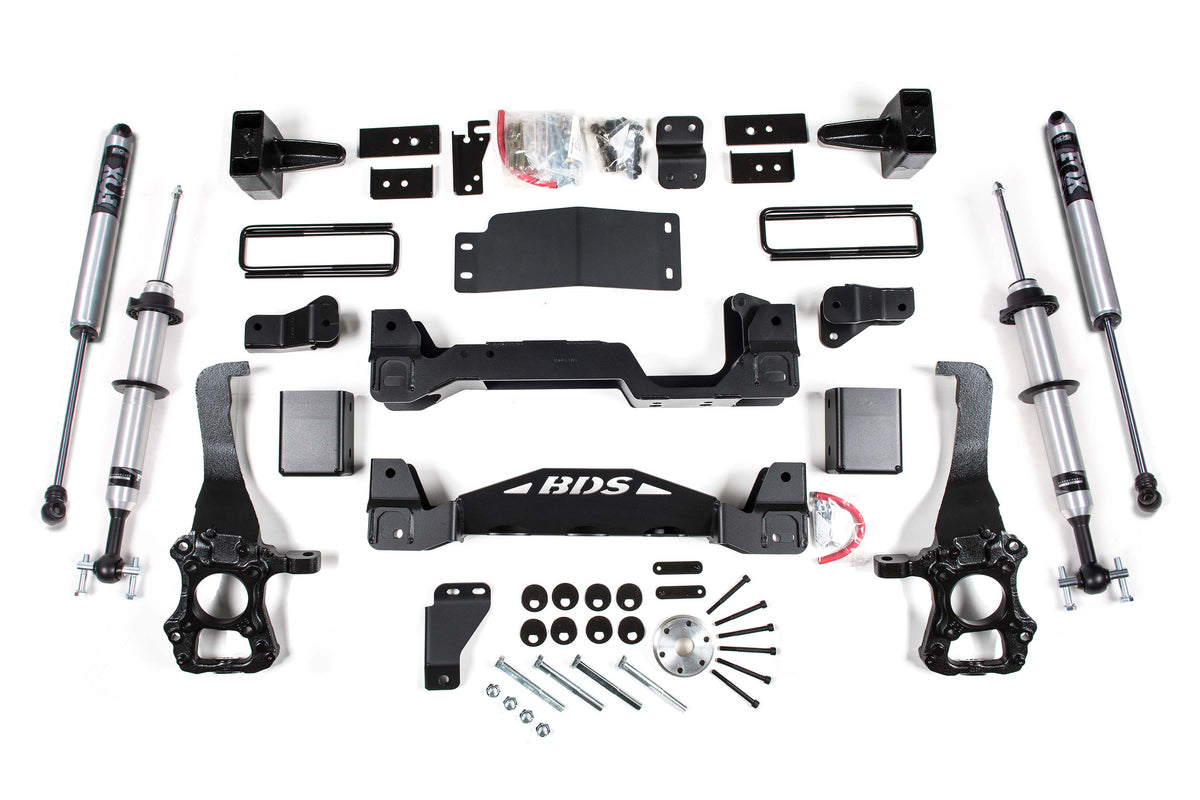

2015-2020 F-150 6" Lift Kit with FOX 2.0 Performance Shocks (BDS1532FSR)

Get your 2015-2020 Ford F150 4WD dirty with this BDS 6" lift kit featuring FOX 2.0 front struts, with clearance for up to 37" tires. It uses BDS's high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry. Up front are FOX 2.0 strut shocks, high-arched 1/4" steel crossmembers, multipiece differential relocation brackets, a skid plate, CNC-machined ductile iron steering knuckles for ESC compatibility, plus sway bar relocation brackets, brake line brackets and alignment cam bolts. The rear uses high-strength fabricated lift blocks, longer u-bolts and NX2 Nitro or optional FOX 2.0 Performance Series shocks.

Features

• FOX 2.0 Performance IFP shocks eliminate oil aeration for maximum performance from the factory-tuned, precision valving
• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles correct steering geometry and maintain ESC system compatibility
• Top-mounted strut spacers provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5

Notes

• 18" wheels with 5-5.5" total backspacing should be test fit prior to mounting the tire to ensure clearance to the BDS steering knuckle.
• 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
• E-brake bracket required for factory powersteps (123018).
• Block kits replace factory 1-1/4" block.
• Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit 122406.
• Will not fit HD models (7 lug).

Includes

• BDS013539, 2015-2020 Ford F150 Rear Box Kit (UPC 658848613670)
• BDS023634, 2015-2020 Ford F150 Knuckle Box Kit - DS (UPC 658848615919)
• BDS023635, 2015-2020 Ford F150 Knuckle Box Kit - PS (UPC 658848615926)
• BDS023650, 2015-2020 Ford F150 Front Box Kit (1of2) (UPC 658848615940)
• BDS023651, 2015-2020 Ford F150 Front Box Kit (2of2) (UPC 658848615957)
• FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
• FOX98662001, BDS, 2014-2024 Ford F-150, Front Coilover, Snap Ring, PS, 2.0, Internal Floating Piston, 6.1 inch, 4 & 6 inch Lift
