2015-2020 F-150 6" Lift Kit with FOX 2.5 Performance Elite Shocks (BDS1532FPE)

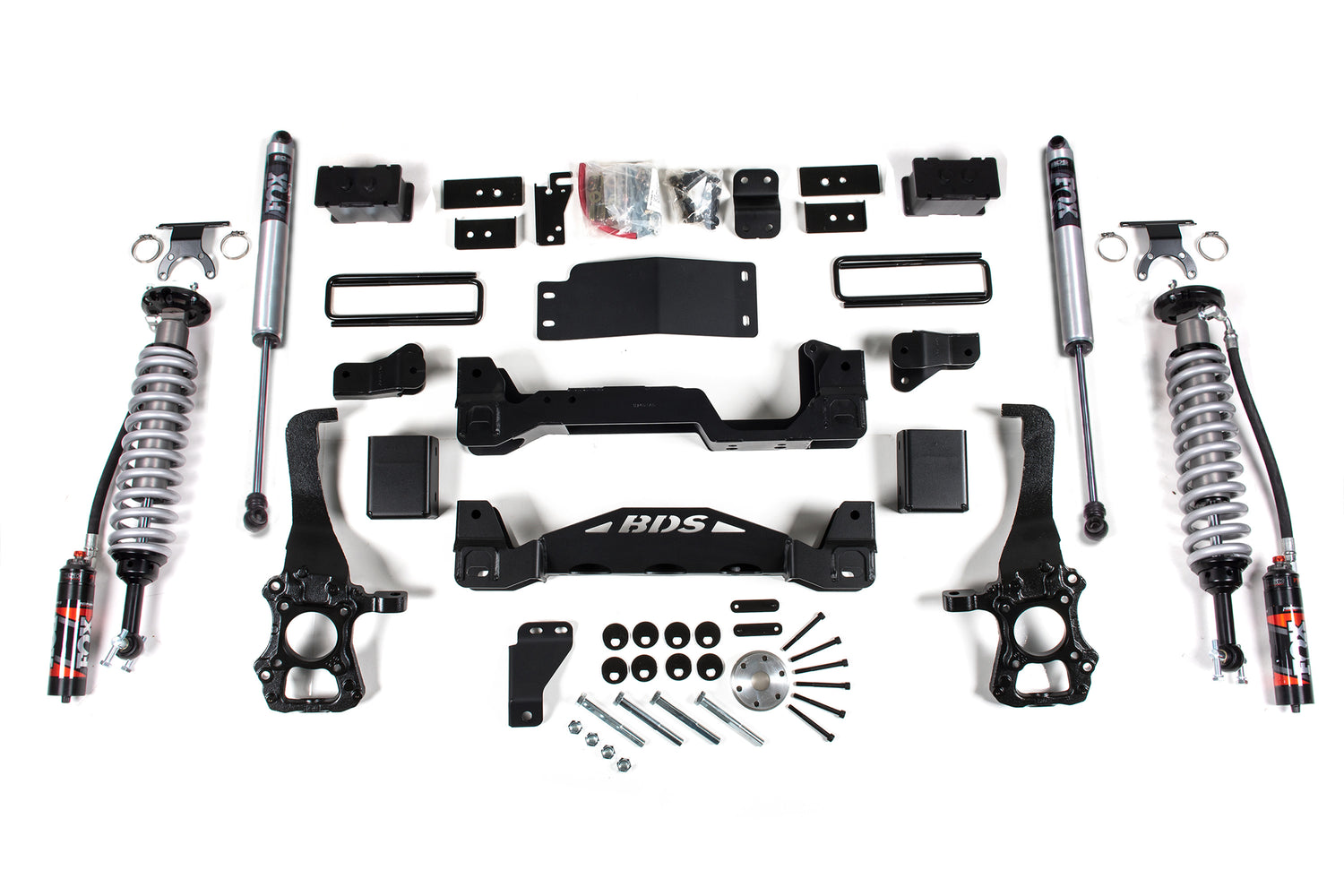

BDS 6" coil-over lift kit for 2015-2020 Ford F150 trucks, with clearance for up to 37" tires. Up front are FOX 2.5 remote reservoir coil-overs, high-arched 1/4" steel crossmembers, multipiece differential relocation brackets, a skid plate, and CNC-machined ductile iron steering knuckles to correct steering geometry, plus sway bar relocation and brake line brackets. The rear uses fabricated lift blocks, longer u-bolts, and FOX 2.0 Performance shocks.

The FOX 2.5 Performance Elite shocks come tuned and ready to bolt on, with a remote reservoir to keep fluid cool and a Dual Speed Compression Adjust offering 10 low-speed and 12 high-speed compression settings.

Features

• FOX 2.5 coil-over shocks designed for increased travel and soaking up the roughest terrain
• Dual Speed Compression Adjust for on-the-fly tuning
• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles correct steering geometry and maintain ESC compatibility
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts level the stance
• 2.5" impact extruded aluminum body with a 7/8" hard chrome plated alloy steel shaft
• External reservoir separates shock oil from high-pressure nitrogen
• Fully serviceable, 1-year manufacturer's warranty

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5.5

Notes

• Requires frame bracket modification
• 18" wheels with 5-5.5" total backspacing should be tested before mounting to ensure clearance to the BDS steering knuckle
• 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to 305/60-20 tires.
• The 4" blocks net a level/tail-LOW stance; the 5" blocks net a level/tail-HIGH stance
• Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406
• This system WILL work on diesel models
• Will not fit HD models (7 lug)
• FMVSS No.126 Compliant

Includes

• BDS013539, 2015-2020 Ford F150 Rear Box Kit (UPC 658848613670)
• BDS023634, 2015-2020 Ford F150 Knuckle Box Kit - DS (UPC 658848615919)
• BDS023635, 2015-2020 Ford F150 Knuckle Box Kit - PS (UPC 658848615926)
• BDS023650, 2015-2020 Ford F150 Front Box Kit (1of2) (UPC 658848615940)
• BDS023651, 2015-2020 Ford F150 Front Box Kit (2of2) (UPC 658848615957)
• FOX88406327, Kit: BDS 2015-2024 Ford F150, Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R, 6 inchРЎСљ Lift, Dual Speed Compression Adjust
• FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
