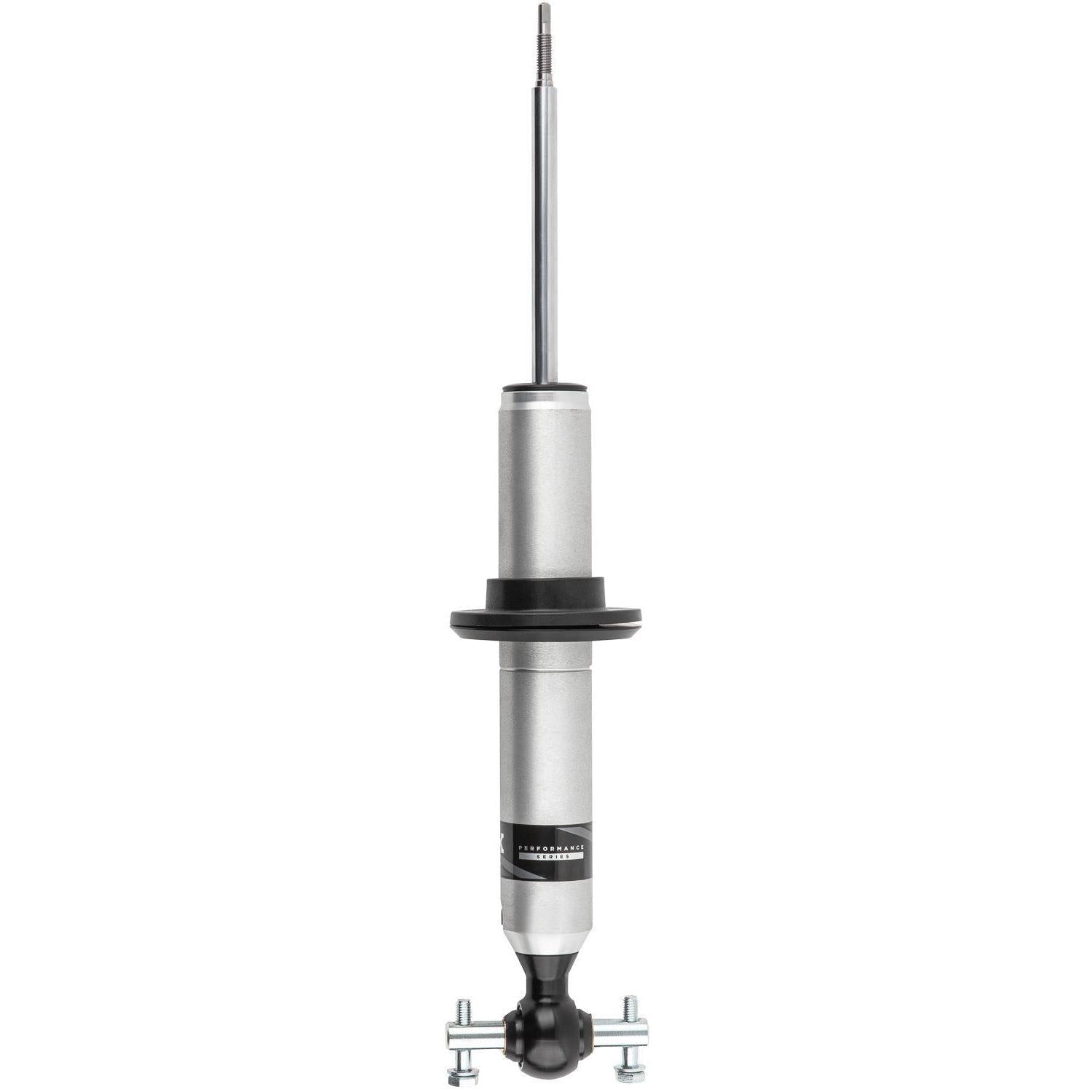

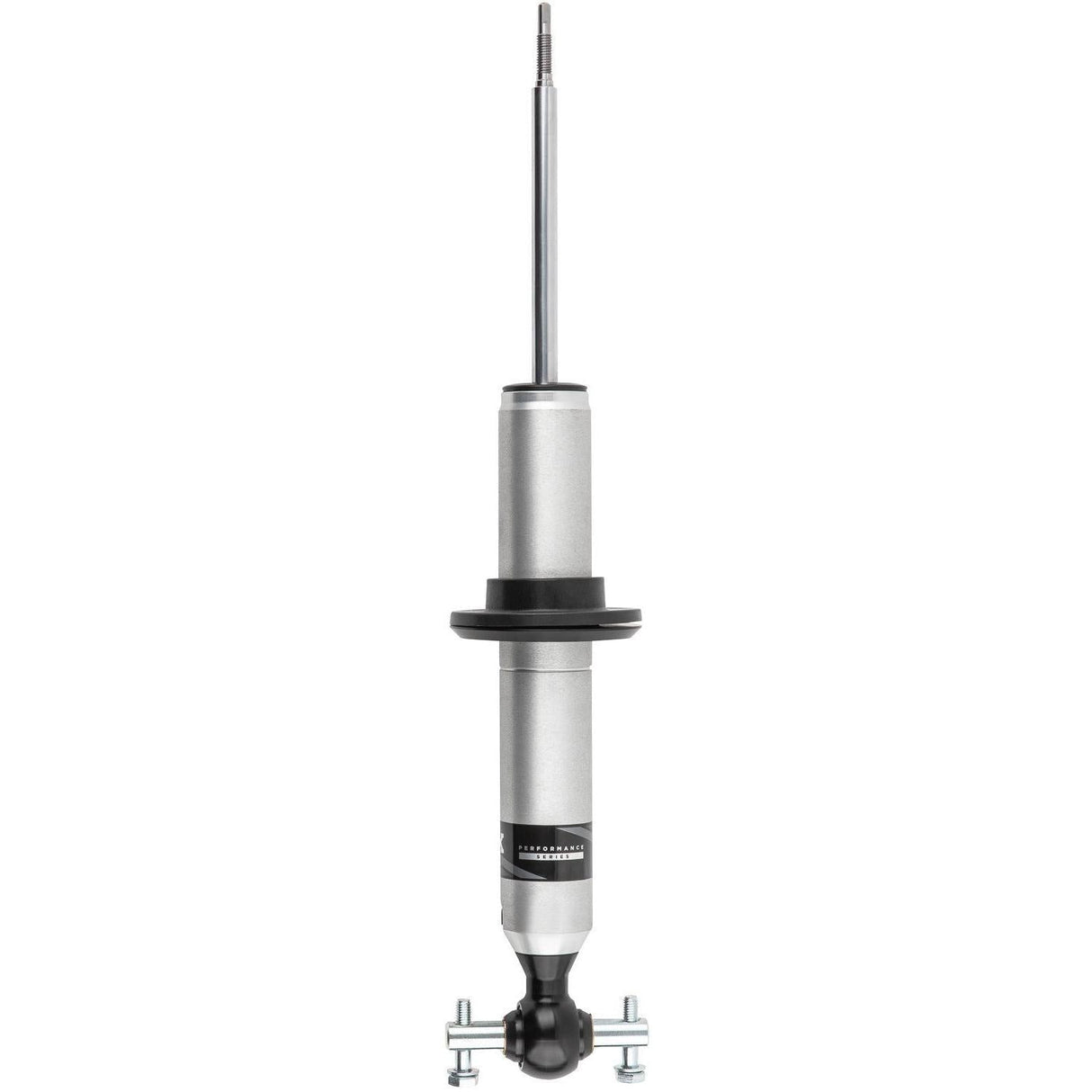

2015-2020 F-150 Front 0-2" Performance Series 2.0 IFP Coilover Shock (985-62-009)

Description

These Coil-Over Snap Ring IFP shocks are a bolt-on solution, with benefits to ensure you get predictable handling and comfort no matter the conditions. Featuring a new custom-molded spring seat, allowing you to reuse your stock spring and mounting hardware while providing excellent on- and off-road performance at an affordable price point.

Part Number: 985-62-009

Features

• New Spring Seat While Reusing Stock Spring & Mounting Hardware
• Aluminum Body Dissipates Heat Faster Than Steel
• IFP Separates Oil From High-Pressure Nitrogen Gas
• 2" Impact extruded body
• CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time

• Shaft 5/8" hard chrome plated heat-treated alloy steel
• Race-developed high-flow Piston design
• Application specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• Large diameter HD spherical

Specs:

• Extended Length: 22.5"
• Compressed Length: 16.85"
• Top Mount Reuses Stock Mounting Hardware
• Bottom Mount Bar Pin

• Travel: 5.65"
• Front Lift Height: 0-2"
