2015-2022 Colorado / Canyon 5.5" Lift Kit with FOX 2.5 Performance Shocks (BDS722FDSC)

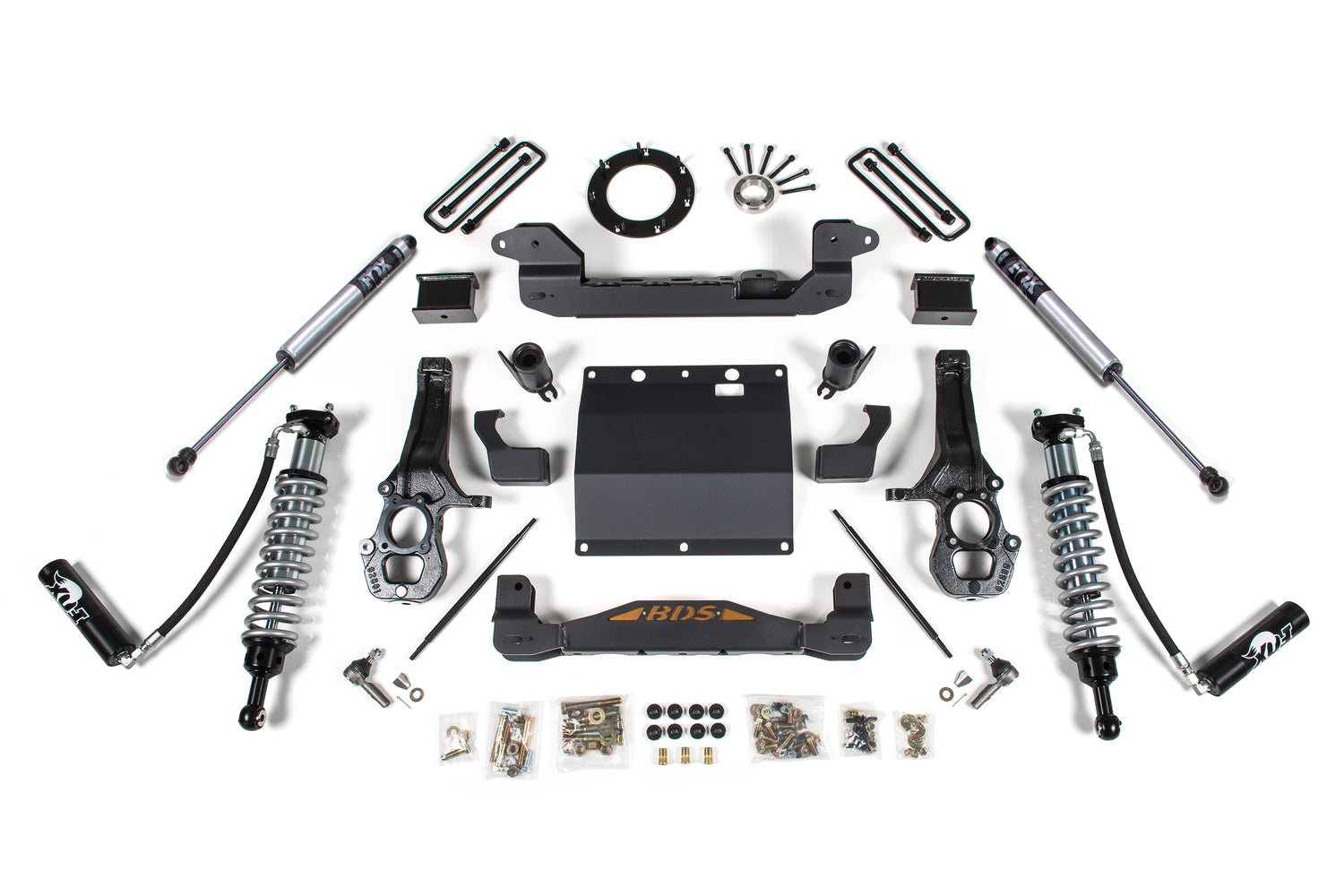

Upgrade your Chevy Colorado and GMC Canyon 4WD with this BDS 5.5" suspension lift kit and FOX 2.5 coil-over shocks, with clearance for up to 33" tires. The high-clearance design improves ground clearance, strength, and offroad protection while correcting suspension and steering geometry. Up front it uses FOX 2.5 coil-over shocks, 1/4" thick high-arched steel crossmembers, multipiece differential relocation brackets, and heavy duty skid plates, with CNC-machined ductile iron steering knuckles and replacement tie rod ends for ESC compatibility, plus sway bar links, bump stop extensions, and CV spacers. The rear uses a heavy duty fabricated lift block that retains ride quality and load capacity, new u-bolts, and FOX 2.0 Performance Series shocks.

Features

• FOX 2.5 Factory Race series coilovers for improved ride quality, performance, and capability
• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• High-strength replacement upper control arms provide durability and serviceability
• HD skid plate system improves offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• Dual Speed Compression Adjust adjuster increases both low and high-speed compression levels up to 25 percent

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Block Kit
• Shocks Included: Yes
• Front Lift Height: 5.5 inch
• Rear Lift Height: 4 inch

Recommended Tire & Wheel Fitment

• Tire Size: 305/70, 305/55
• Wheel Diameter: 17x9, 20x9
• Back Spacing: 4.5/5.25

Notes

• Inner fender trimming is required.
• Minor welding is required.
• The electronically assisted power steering system is sensitive to out-of-round, unbalanced, and more aggressive tread pattern tires. High speed steering wheel feedback can occur.
• The actual ride height on coil-over kits is closer to 6 inch of lift.
• Stock 17 inch & 18 inch wheels cannot be reinstalled with the lift kit. Aftermarket 20 inch wheels with a maximum of 5.25 inch backspacing are recommended. Certain wheel and tire combinations will require weld-on steering stops, which are included in the kit. See end of instruction sheet for installation details.
• Will not fit ZR2 models.
• Will fit diesel models.

Includes

• BDS011406, 2015-2022 Colorado 4 inch Rear Block Box Kit (UPC 658848611799)
• BDS021670, 2015-2022 Colorado Front Box Kit 1of4 (UPC 658848615070)
• BDS021671, 2015-2022 Colorado Front Box Kit 2of4 (UPC 658848615087)
• BDS021672, 2015-2022 Colorado Front Box Kit 3of4 (UPC 658848615094)
• BDS021673, 2015-2022 Colorado Front Box Kit 4of4 (UPC 658848615100)
• FOX88306136, Kit: BDS 15-20 GM Colorado/Canyon Front Coilover, 2.5 Series, R/R 6 inch Lift, Dual Speed Compression Adjust (UPC 814897013735)
• FOX98224758, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1 (UPC 692878899062)
