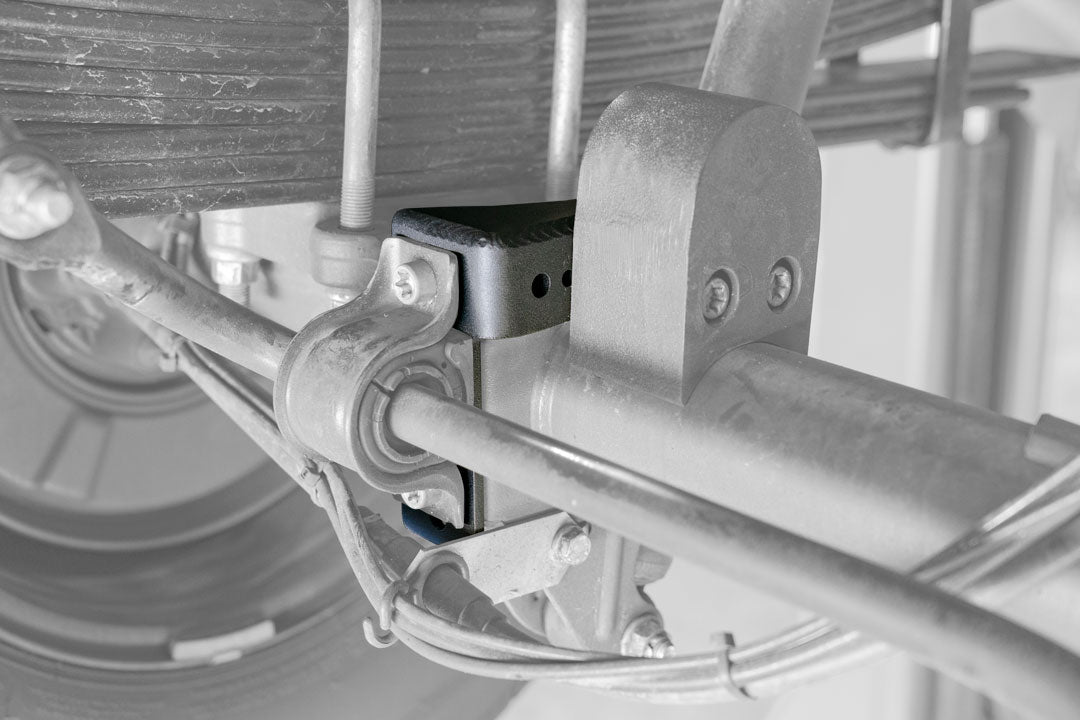

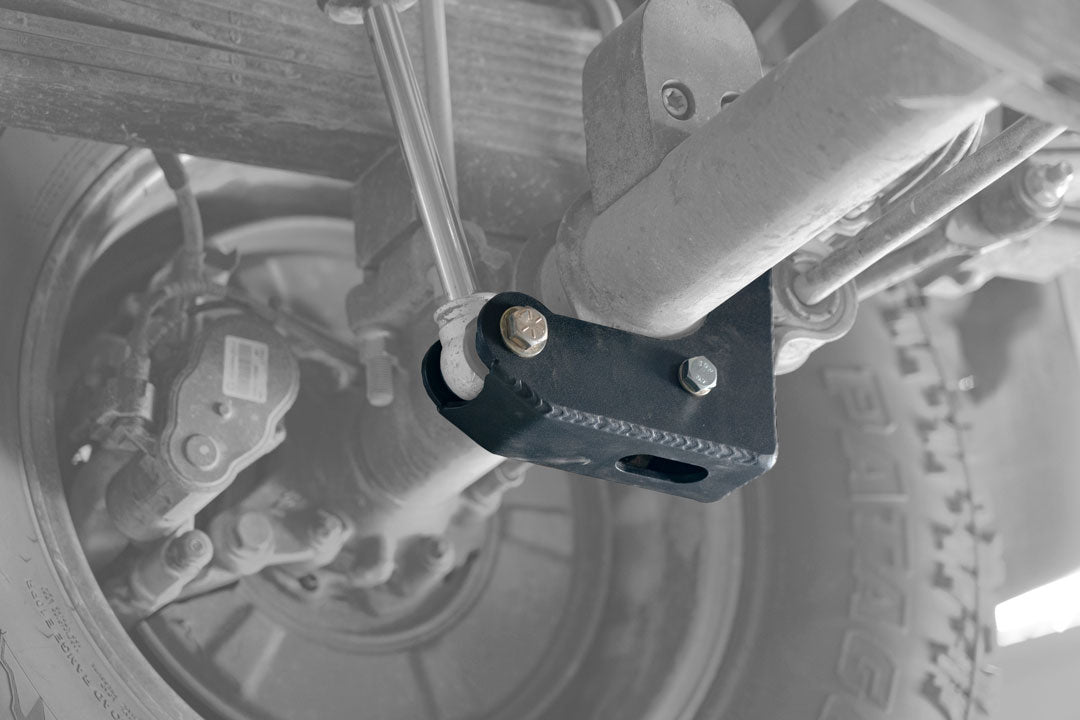

2015-2022 Sprinter 2500 4x4 Baja Norte High Clearance Rear Lower Shock Brackets (7225)

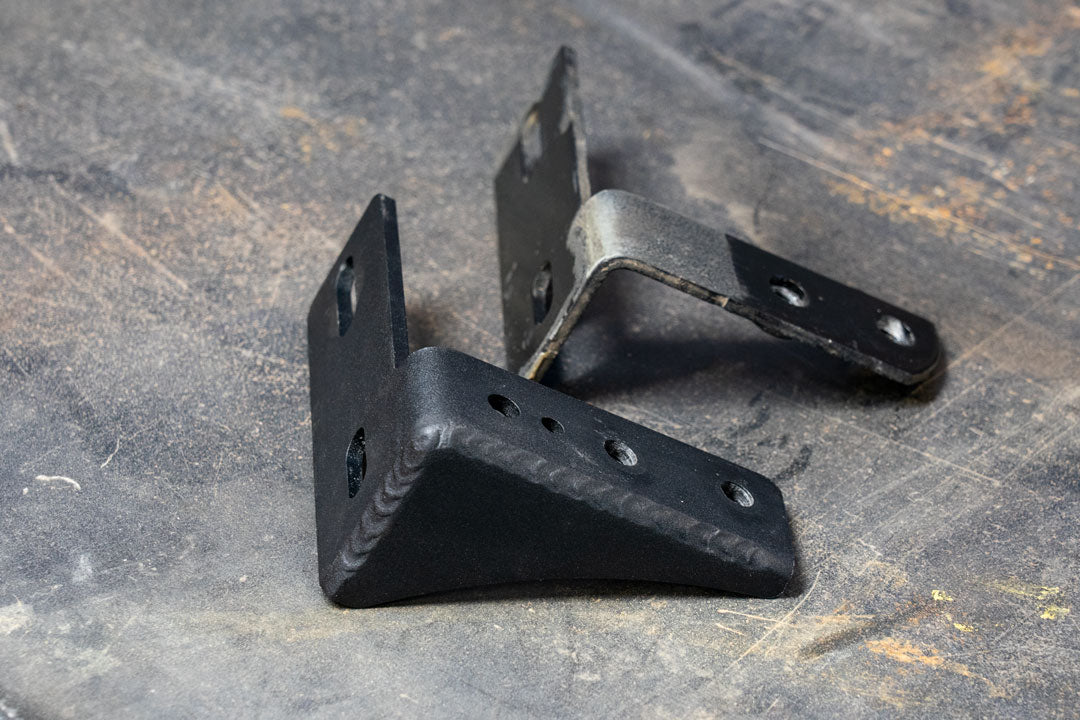

Van Compass Baja Norte High Clearance rear shock brackets let lifted Sprinter owners squeeze out even more ground clearance while protecting the vulnerable lower shock eyelet. Laser-cut and formed from 3/16" steel, the bracket wraps and reinforces the factory lower shock mount, trims the low-hanging factory design and relocates the shock eyelet 2" higher. It also upgrades the failure-prone rear lower bump stop mount on the axle that tends to snap off on heavy off-road vans.

Features

• Relocates the rear lower shock eyelet 2" higher for a big ground clearance gain
• Laser-cut and formed 3/16" steel wraps and reinforces the factory lower shock mount
• Integrated skid protects the lower shock eyelet
• Upgrades the failure-prone rear lower bump stop mount on the axle
• Finished in durable black powder coat

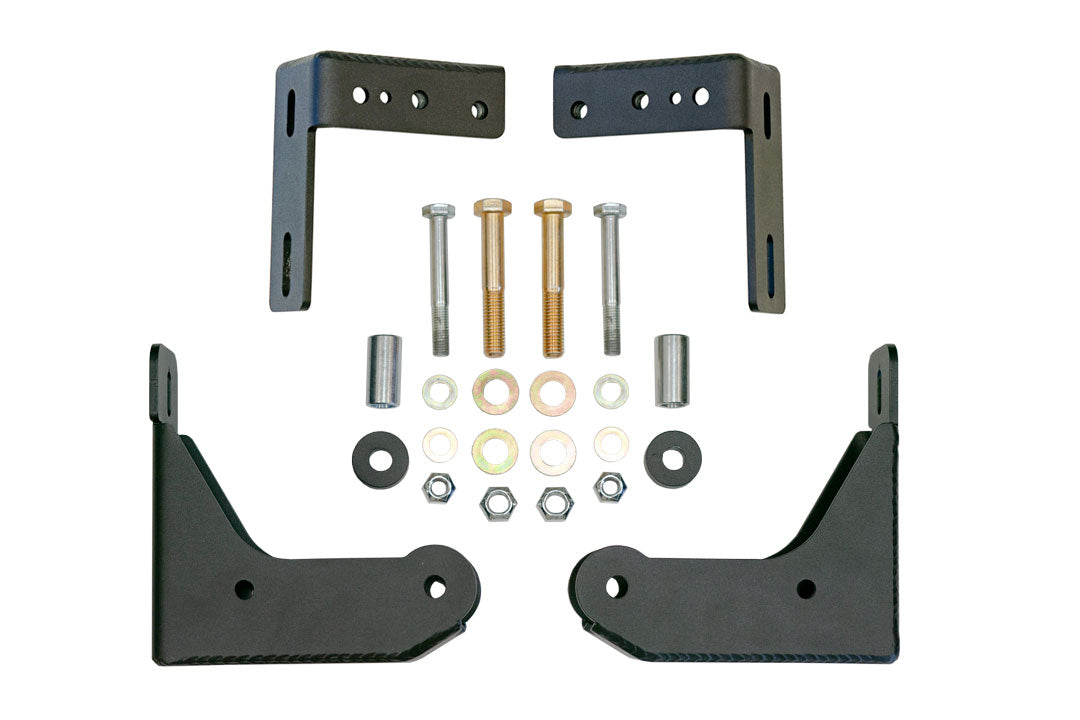

Included Components

• Baja Norte High Clearance, Heavy Duty Lower Shock brackets
• Heavy Duty Rear Lower Bump stop bracket
• All necessary hardware

Important Notes

• Only compatible with the Van Compass 2" lift kit and Falcon adjustable shocks.
• Requires 2" Van Compass lift kit be installed
• Not compatible with monotube shocks, must be used with Falcon 3.3 adjustable shocks. Collapsed length on monotube shocks is too long.

Labor Time

Recommended shop labor time: 1.5 hours.

Specifications

• Material: Steel | Finish: Powder Coated (Black)
• Grade Type: High Clearance
