2015-2022 Sprinter 2500 4x4 Engine Skid Plate (4029)

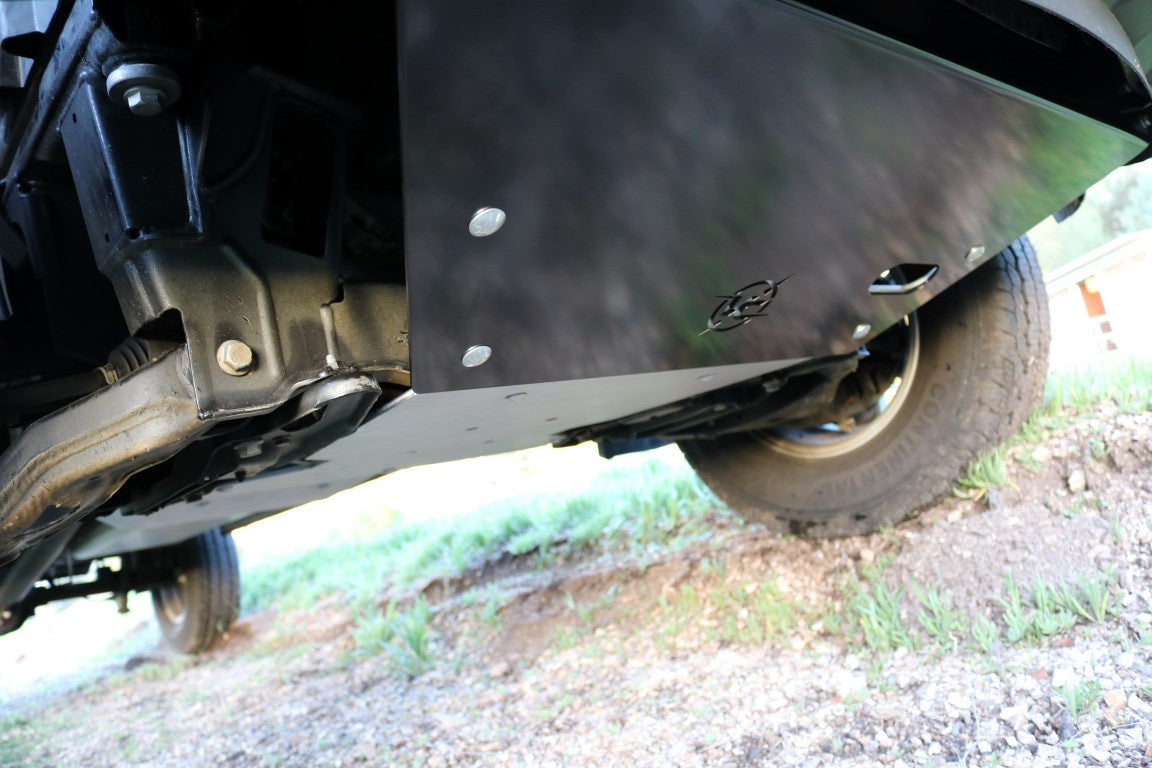

Explore with confidence in your 4x4 Sprinter with the Van Compass Engine skid plate. Designed as a strong, smooth surface to slide over or bash into, it shields your vital drivetrain components when off-road situations get out of hand. Built from 1/4" thick 6061-T6 aluminum and 3/16" high-strength steel, it bolts on completely with all hardware provided.

Features

• Made from 1/4" thick 6061-T6 aluminum and 3/16" high-strength steel
• Protects vital engine and drivetrain components from trail impacts
• Two-piece, 100% bolt-on design with all hardware included
• Engine oil changes can be performed without removing the skid system
• Pairs with the transmission/transfer case and fuel tank skid plates

Included Components

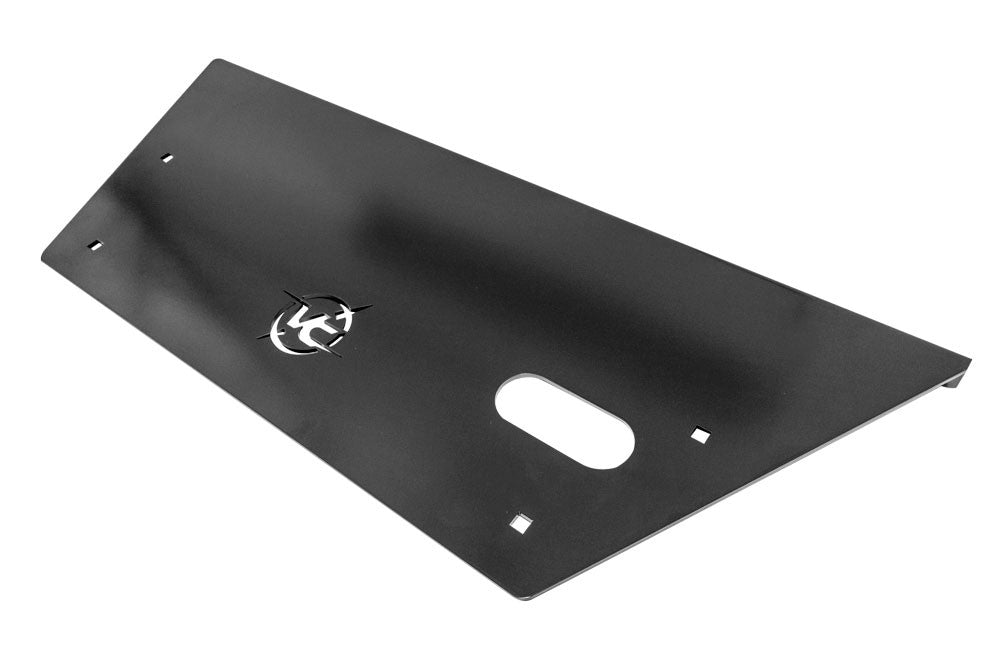

• 3/16" Steel Front Bash Plate, Black Powder Coat finish for corrosion protection

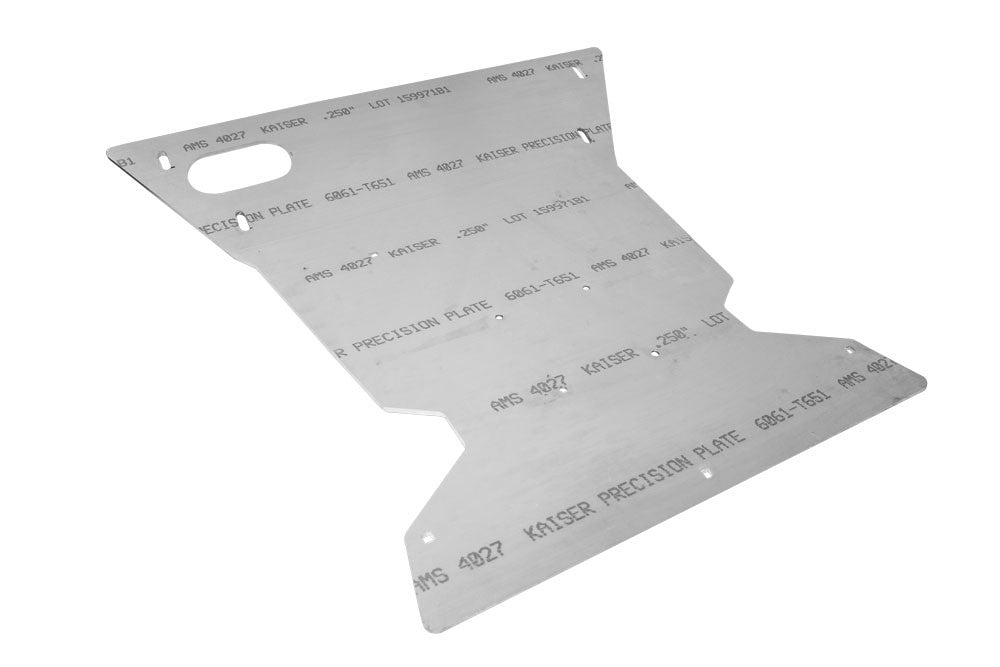

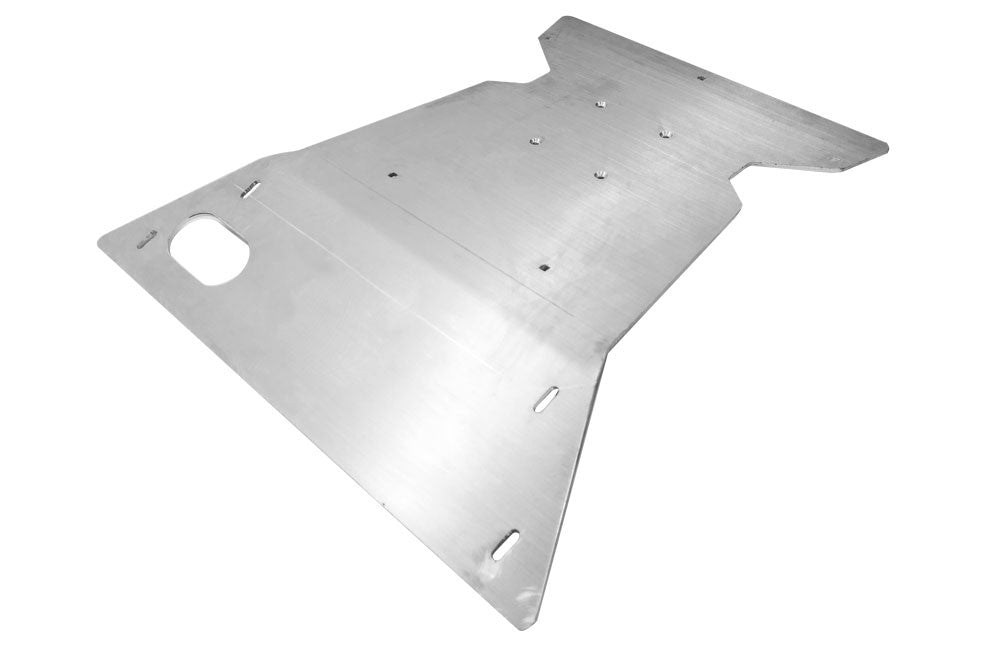

• Engine Skid Plate - 1/4" 6061 T-6 Aluminum
• All necessary hardware
• Total installed weight 55lbs
• The 3500 kit includes 4010-02 "over run" mounts that are not installed on the 3500 chassis from the factory.

Important Notes

• with Van Compass 2" Lift Kit
• 4029 2" lifted version is ONLY compatible with Van Compass 2" lift kit. Agile and other brands utilize non lifted part.
• 4010 skid WILL fit 2wd Sprinter ONLY if Van Compass Striker 2" lift kit is installed.

Installation Instructions

• 2015-2022 Sprinter 4x4 Engine Skid Plate Installation Instructions
• 2015-22 Sprinter 4x4 3500 Engine Skid Plate Installation Instructions

Labor Time

Recommended shop labor time: 1 hour.

Specifications

• Attachment Type: Bolt On
• Color: Black
• Configuration: Two Piece
• Finish: Powder Coated
• Material: Aluminum and Steel
