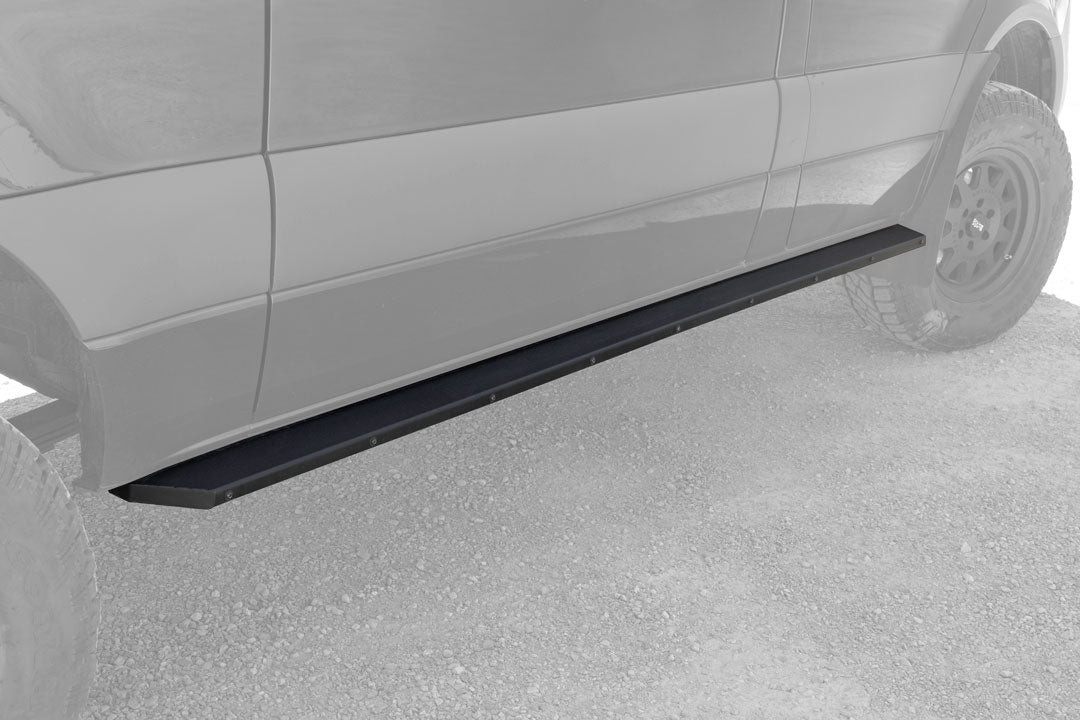

2015-2022 Sprinter 4x4 Rocker Guards (4022)

More than just a step. The Van Compass Rocker Guards add functional protection, chassis rigidity, and easy access to your 144" wheelbase 4x4 Sprinter, all in a sleek, stealthy design. The 4" wide step makes getting in and out more convenient, while integrated Hi-Lift jack slots turn recovery and roadside tire changes into quick, safe work.

Features

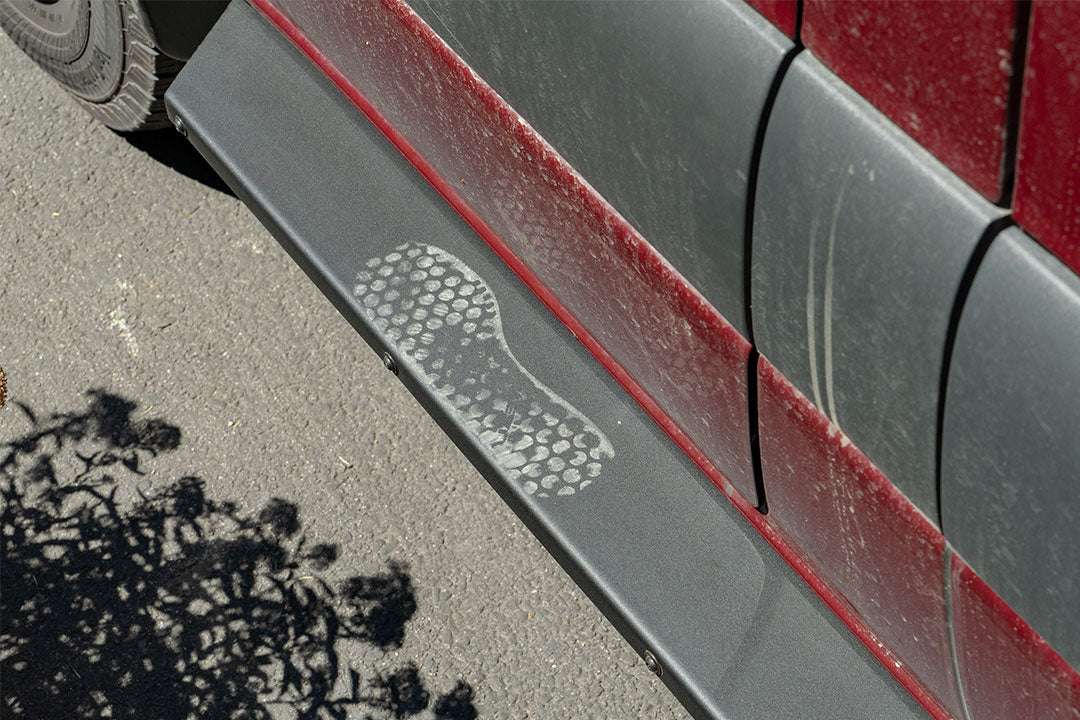

• 4" wide step surface for convenient entry and exit (3.5 to 4" as the body tapers toward the front door sill)
• Main step surfaces built from 1/8" steel; frame mounts from 3/16" steel
• Frame mounts attach directly to the chassis in three locations, increasing torsional rigidity

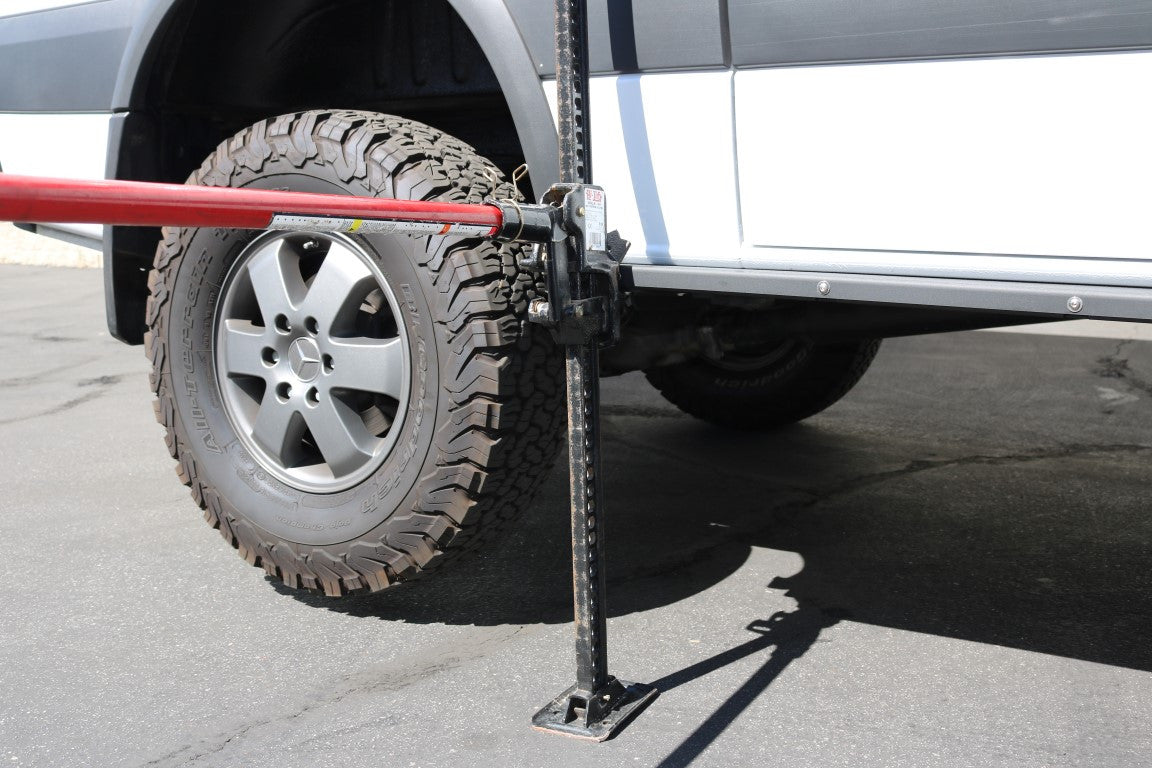

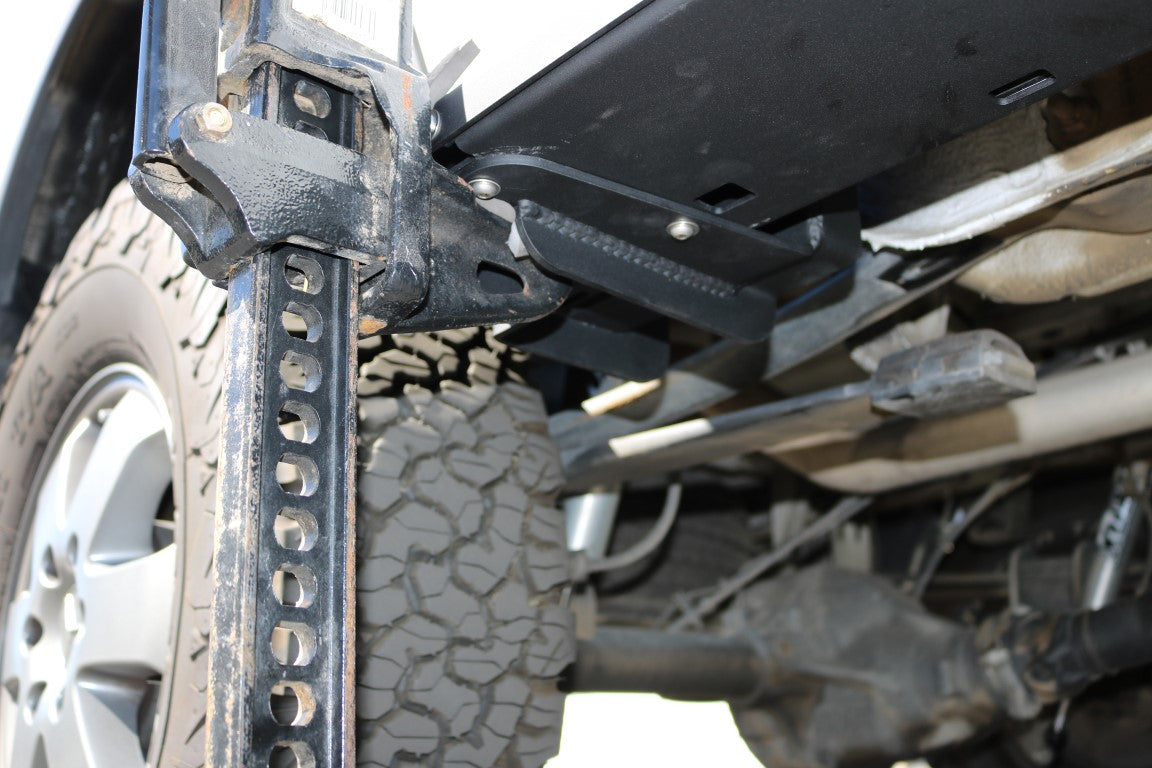

• Integrated Hi-Lift jack slots for fast, safe recovery and tire changes
• Adds easy-to-access vehicle lifting points and excellent body protection
• Stainless steel hardware at the pinch seam; drilling required for installation

Included Components

• Rocker Guard step plates, 1/8" Steel, Black Powdercoat
• Front, Middle and Rear Chassis Tie In Brackets, 3/16" Steel, Black Powdercoat
• Stainless Mounting hardware with AL2000 black finish for step plates

Important Notes

• For stock ride height. Front subframe tie-ins are specific to lifted versus non-lifted vans; specify your van's lift height when ordering. Vans with a 2" Van Compass lift require a unique mount; all other known variations use the non-lifted version.
• These ship in a very long crate; non-commercial addresses may be subject to additional delivery fees.
• May be installed on a 2WD when equipped with a Striker lift kit. Select non-lifted 4x4 height sliders.
• Not compatible with Storyteller MODE or Winnebago Revel

Labor Time

Recommended shop labor time: 6 hours.

Specifications

• Material: Steel
• Color: Black
• Attachment: Bolt On
• Configuration: One Piece
