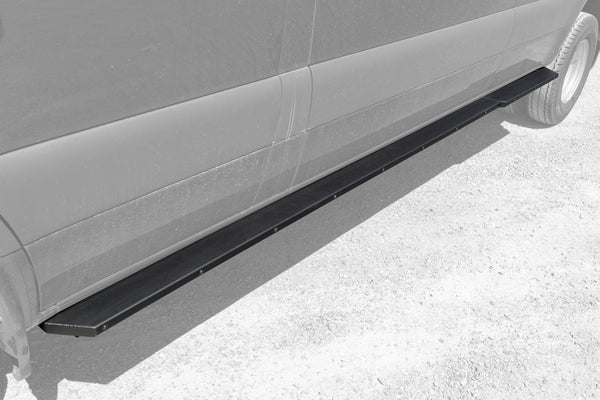

2015-2022 Sprinter 4x4 Rocker Guards (4090-02)

More than just a step, the Van Compass Rocker Guards add functional protection, chassis rigidity, and easy access to your 170" wheelbase 4x4 Sprinter. Signature stealth styling creates an attractive 4" wide step, and the rear portion gains an extra inch of width for protection on tight trails. Integrated Hi-Lift jack slots make recovery and tire changes quick and safe.

Features

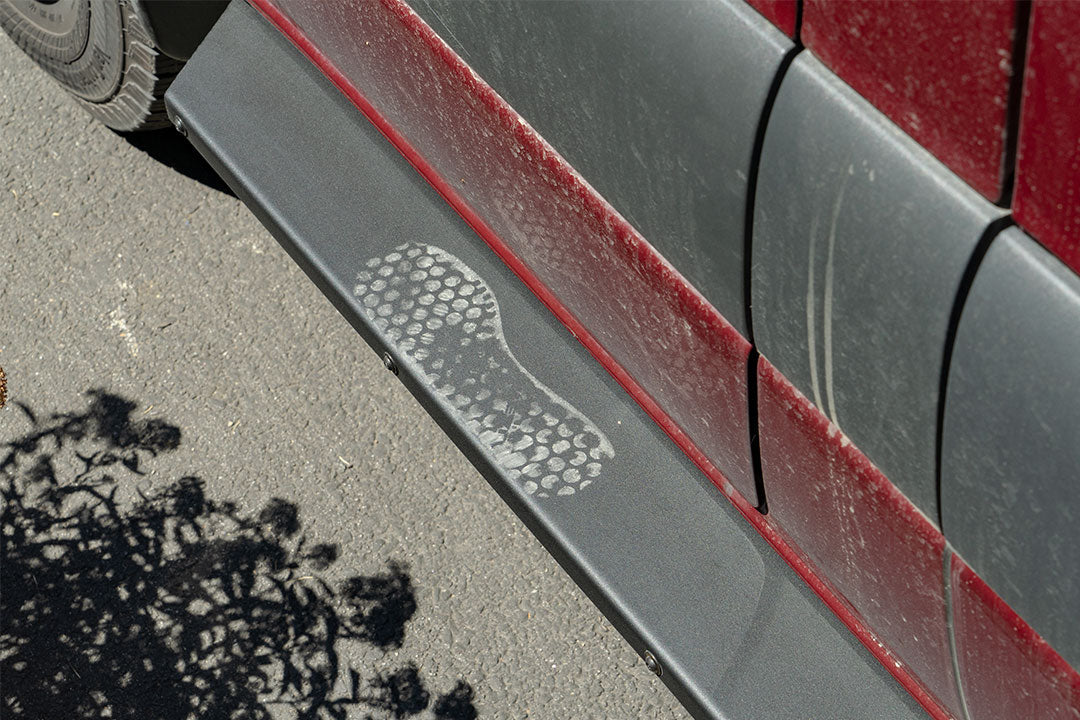

• Signature stealth design with a 4" wide step, plus extra rear width for tight trails
• 1/8" steel step surfaces attach to the pinch seam with stainless hardware
• 3/16" steel frame mounts bolt to the chassis in three locations
• Adds easy-to-access vehicle lifting points and chassis rigidity
• Integrated Hi-Lift jack slots for fast, safe recovery and tire changes
• Drilling at the pinch seam and underbody gussets required for installation
• Not compatible with the Winnebago Boldt due to water tank interference

Included Components

• Rocker Guard step plates, 1/8" Steel, Black Powdercoat

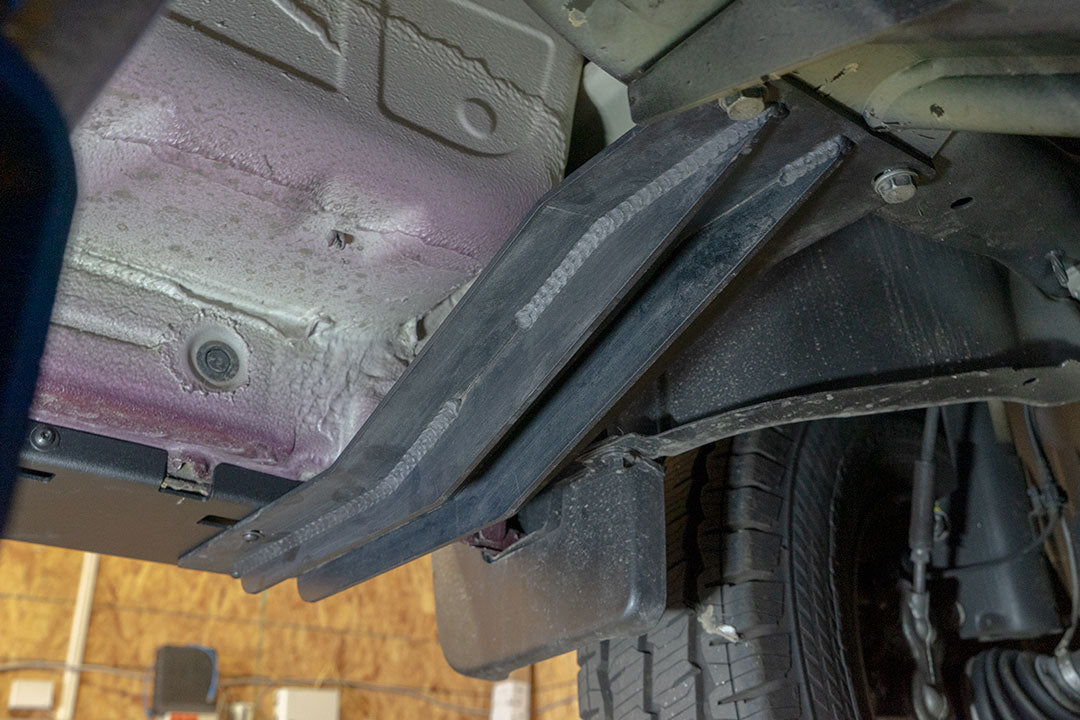

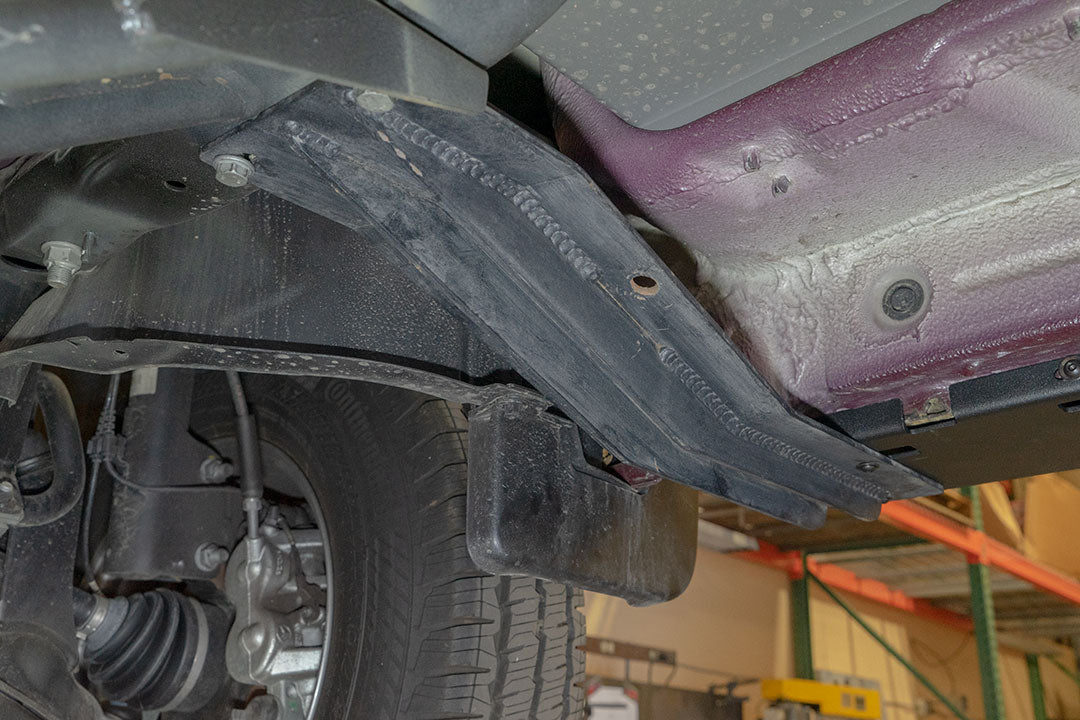

• Front, 2x Middle and Rear Chassis Tie In Brackets, 3/16" Steel, Black Powdercoat
• Stainless Mounting hardware with AL2000 black finish for step plates

Important Notes

• with Van Compass 2" Lift Kit
• Not compatible with Winnebago BOLDT
• May be installed on a 2WD when equipped with a Striker lift kit. Select non-lifted 4x4 height sliders.

Labor Time

Recommended shop labor time: 6 hours.

Specifications

• Attachment Type: Bolt On
• Color: Black
• Configuration: One Piece
• Material: Steel
