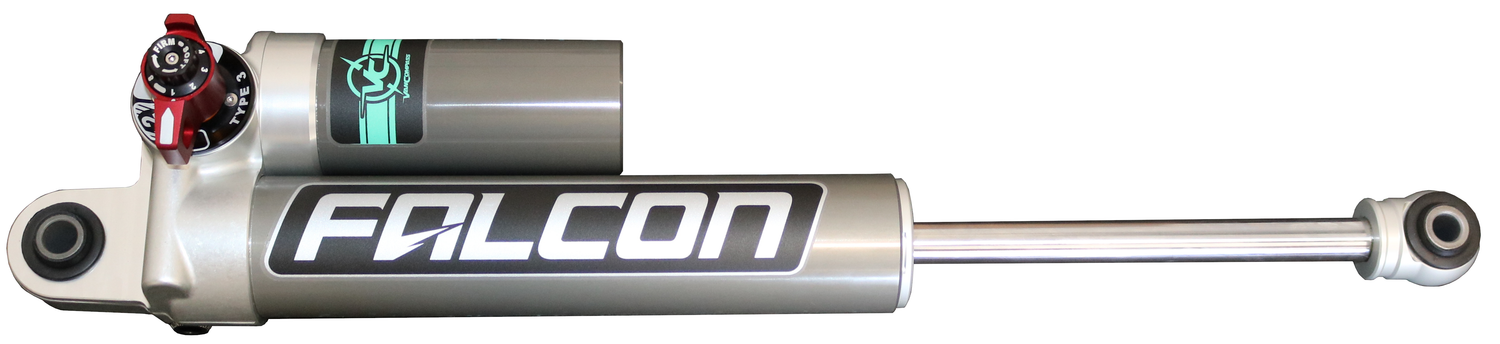

2015-2026 Sprinter 2500 4x4 Falcon 3.3 SP2 Fast Adjust Shocks, Light/Mid Tune, Rear (Pair) (3041)

Dial in your 2015-2026 Sprinter 2500 4x4 ride exactly how you want it. The Van Compass Falcon 3.3 SP2 Fast Adjust rear shocks fix the stiff small-bump harshness and excessive sway of the factory setup, with 10 hand-adjustable compression settings and an internal SP2 free-bleed that gives you two distinct tune profiles. Each kit is tuned to your van's specific weight range for a calmer, more controlled ride.

Features

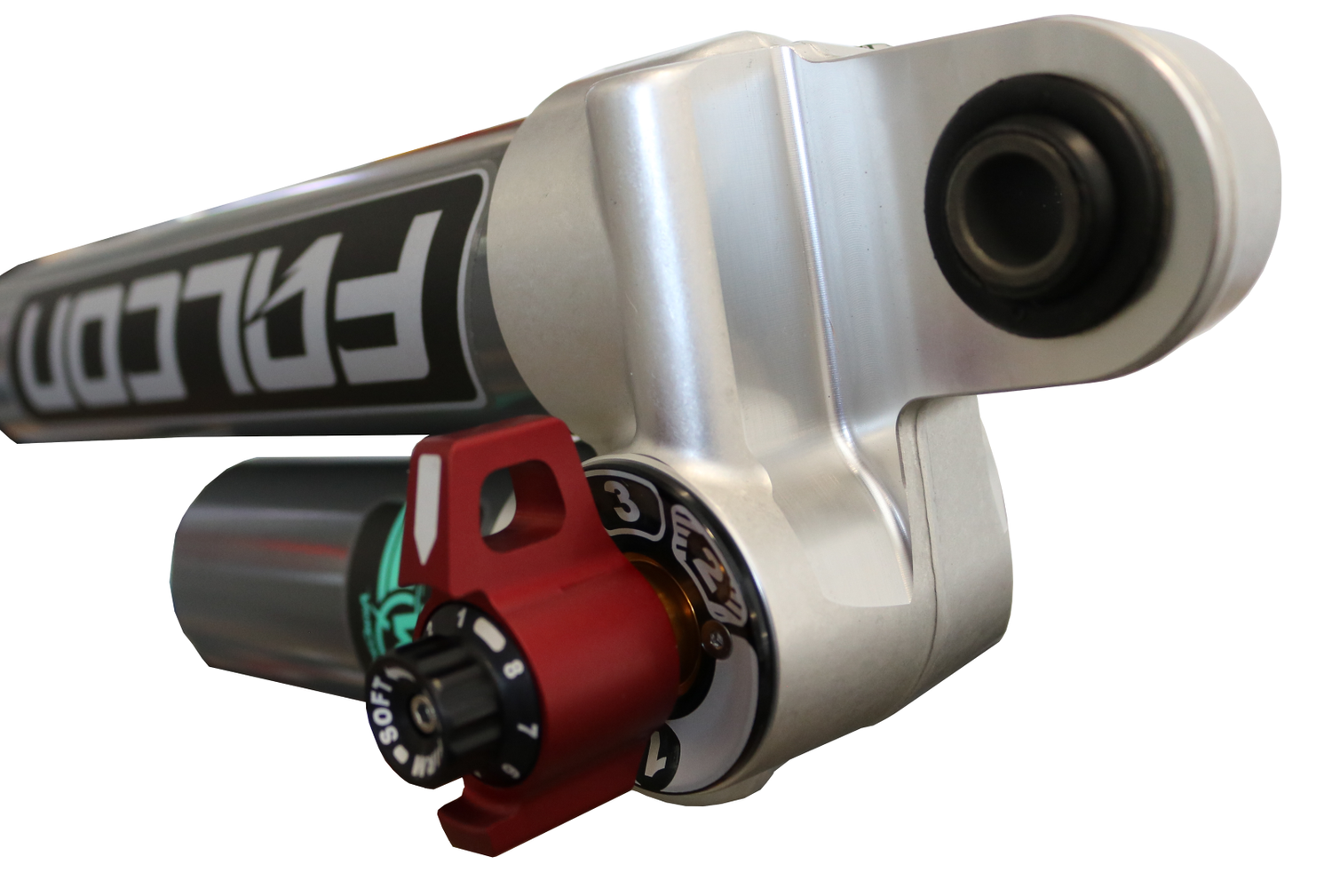

• 10 compression damping settings via the 3.3 fast-adjust knob, adjustable while installed
• Internal SP2 free-bleed delivers two distinct tune profiles
• Three reservoir positions: light/fast (1), 8 micro-adjustments (2), heavy/max control (3)
• Full 2" damper piston, a 238% increase over stock

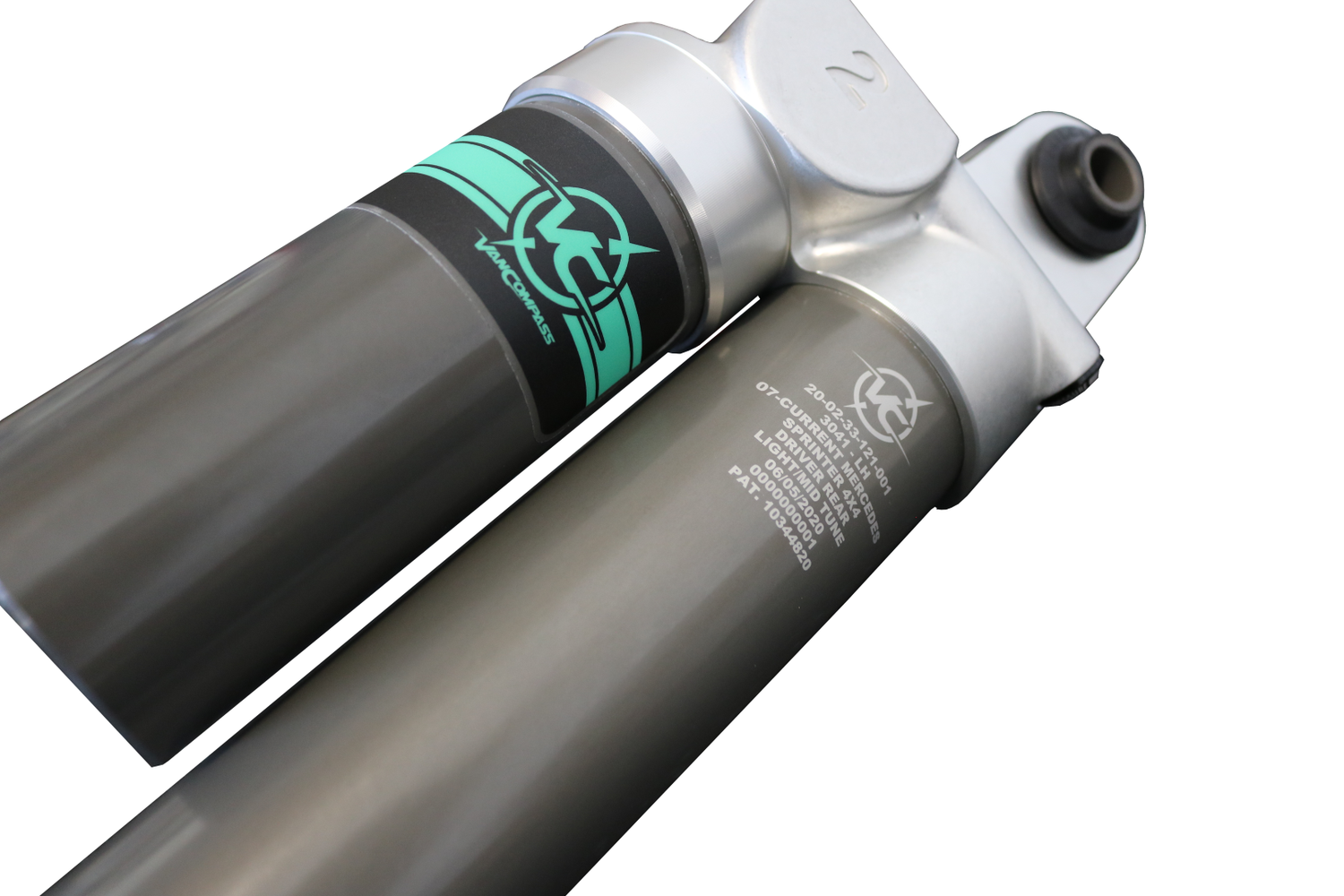

• 2.3" aluminum body with piggyback reservoir; 3/4" hard-chromed shaft
• High-pressure nitrogen charge for fade-free, cavitation-free operation
• Tuned to your specific van weight range; sold as a rear pair

Included Components

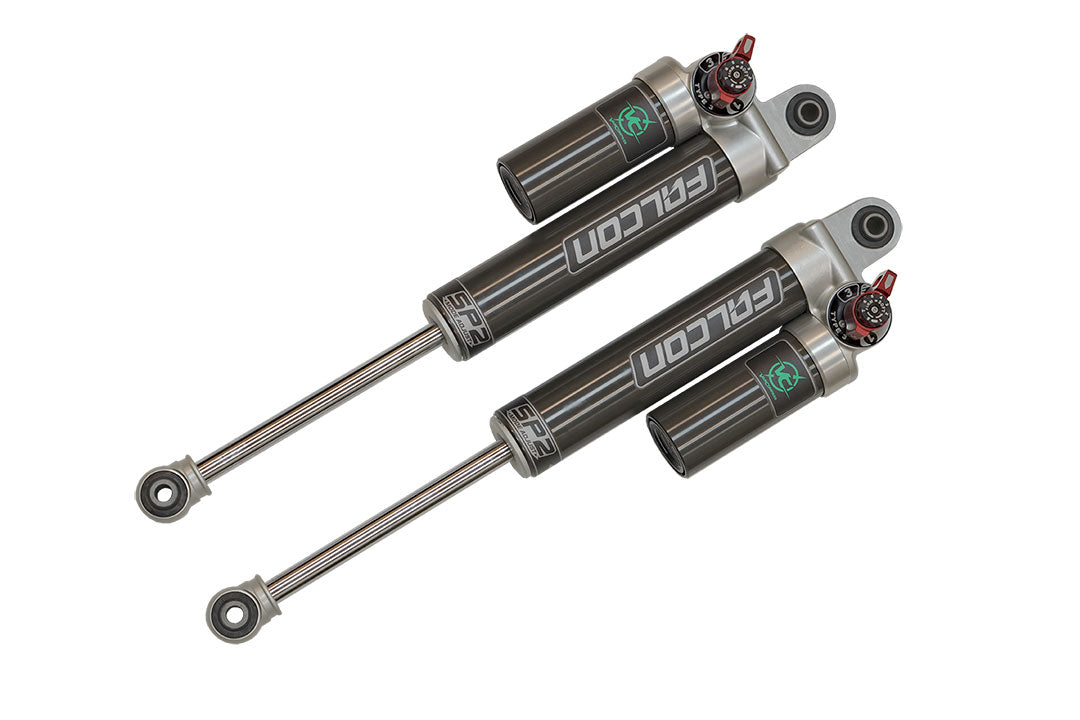

• Tuned 3.3 Fast Adjust Reservoir Shocks, 1 pair
• Shock Boots

Important Notes

• NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.

Installation Instructions

• NCV3, VS30 4x4 Falcon 3.3 Rear Shock Installation Instructions
• Falcon 3.3 Shock Settings Guide

Labor Time

Recommended shop labor time: 1 hour.

Specifications

• Bore Diameter: 2 IN
• Internal Construction Type: Monotube
• Lower Mount Type: Eyelet
• Reservoir Style: Piggyback
• Shaft Diameter: .75 IN
• Tube Outside Diameter: 2.3 IN
• Upper Mount Type: Eyelet
