2015-2026 Sprinter 2500 4x4 Suspension Leveling Kit (7053-2500-H)

Tighten up your loaded Sprinter 2500 with the Van Compass Stage 3 system, built for heavy adventure vans and Class B RVs running at or near GVWR. A four-corner Falcon 2.1 monotube shock upgrade, rear mini leaf spring pack, and progressive front bump stops combine to restore lost ride height, cut sag, and dramatically sharpen handling over any terrain.

Features

• VC-tuned Falcon 2.1 monotube shocks, front and rear
• Rear mini leaf spring pack restores lost ride height and corrects sag (typically 1.25 in of rear lift)
• Progressive foam Bump Buddy jounce bumpers for smoother spring progression and bottom-out resistance
• Enhanced cornering stability with reduced wind sway and body lean
• More effective control over large and small bumps off road
• Ideal for adventure vans at or near GVWR, heavy Class B RVs, and heavy passenger vans

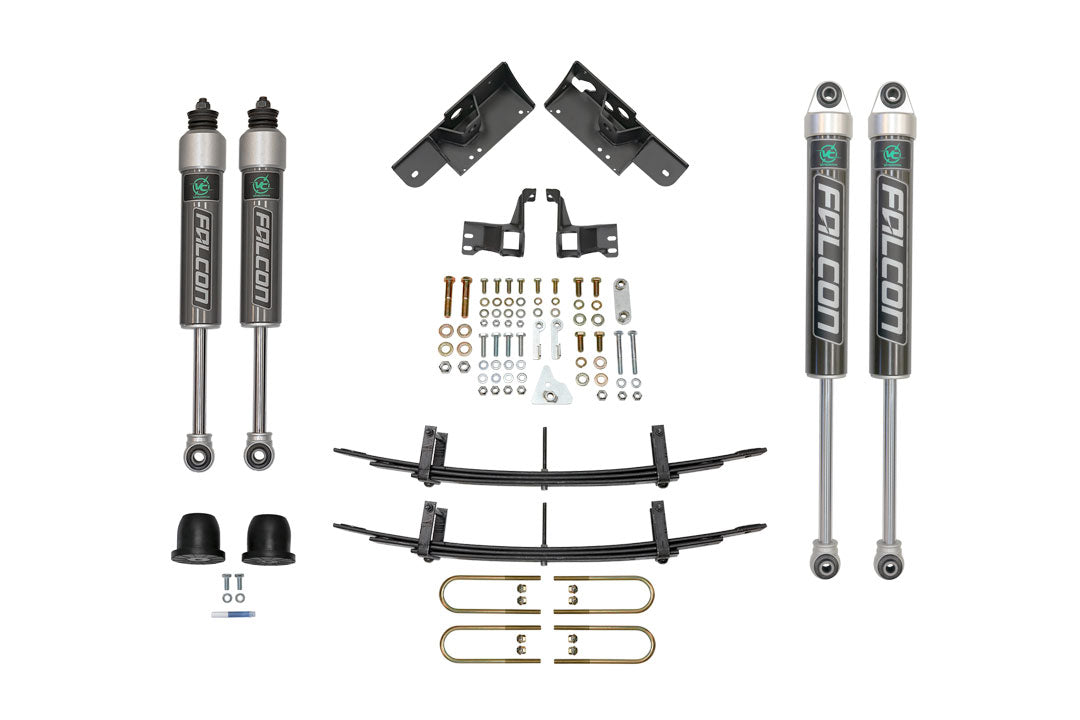

Included Components

• Falcon 2.1 Monotube Front Shocks with Mounting Brackets
• Front Bump Buddies
• Falcon 2.1 Monotube Rear Shocks
• Rear Mini Leaf Spring Pack
• Dust boots for all 4 shocks.
• All necessary hardware and instructions for a simple installation

Important Notes

• Up to 285/70R17 Tire
• Raises Front 0"
• Raises Rear 1.5"
• Wheels with 6.5" backspacing, or +52mm offset on an 8" wheel, require a minimum 14 mm wheel spacer to prevent tire contact with auxiliary shocks at full steering angle. EX: Black Rhino Warlord, Method 701
• Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.
• NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.

Installation Instructions

• 2015+ VS30 4x4 Falcon Front Shock Installation Instructions
• NCV3, VS30 4x4 Falcon 2.1 Rear Shock Installation Instructions
• Sprinter AWD and 4x4 Front Bump Buddies installation instructions
• Rear Mini Pack Installation Instructions

Labor Time

Recommended shop labor time: 7 hours.
