2015-2026 Sprinter 2500 4x4 Van Compasss Stage 4.3 System (7072-LM)

It's our best seller for a reason. The Van Compass Stage 4.3 system includes everything needed to properly correct the handling problems heavy Sprinters experience, making it the go-to choice for owners who want stability on the highway and compliance off pavement. Adjustable Falcon 3.3 shocks plus a rear mini leaf spring pack restore lost ride height and tame sway, leaving you with a nicely leveled, confident-handling van.

Features

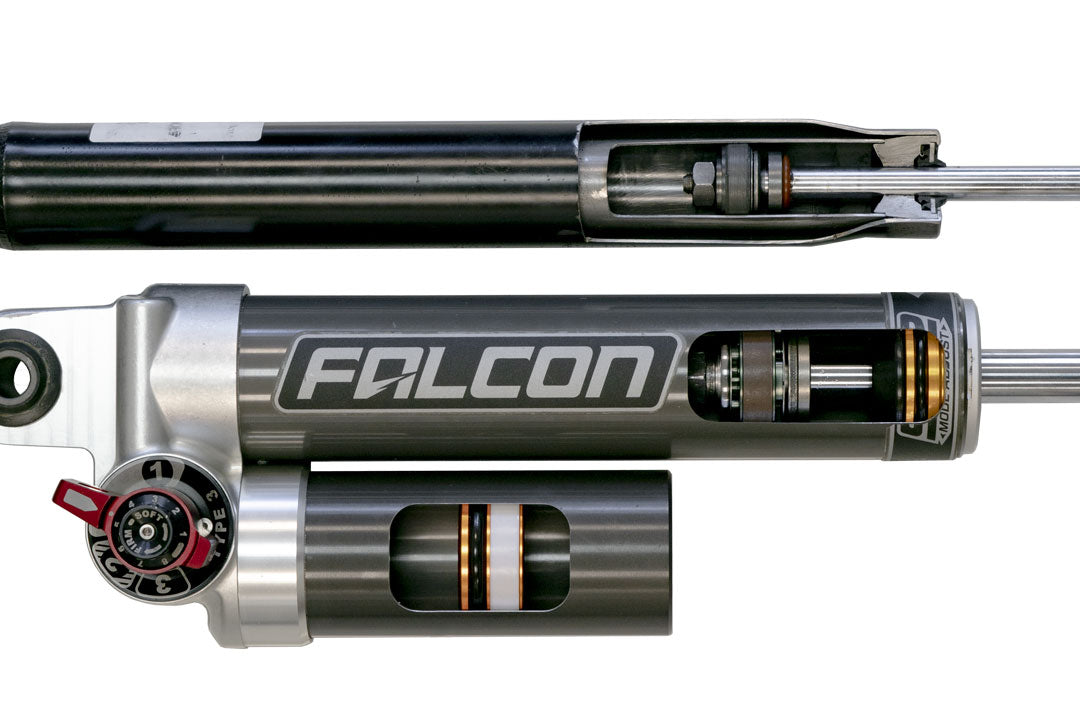

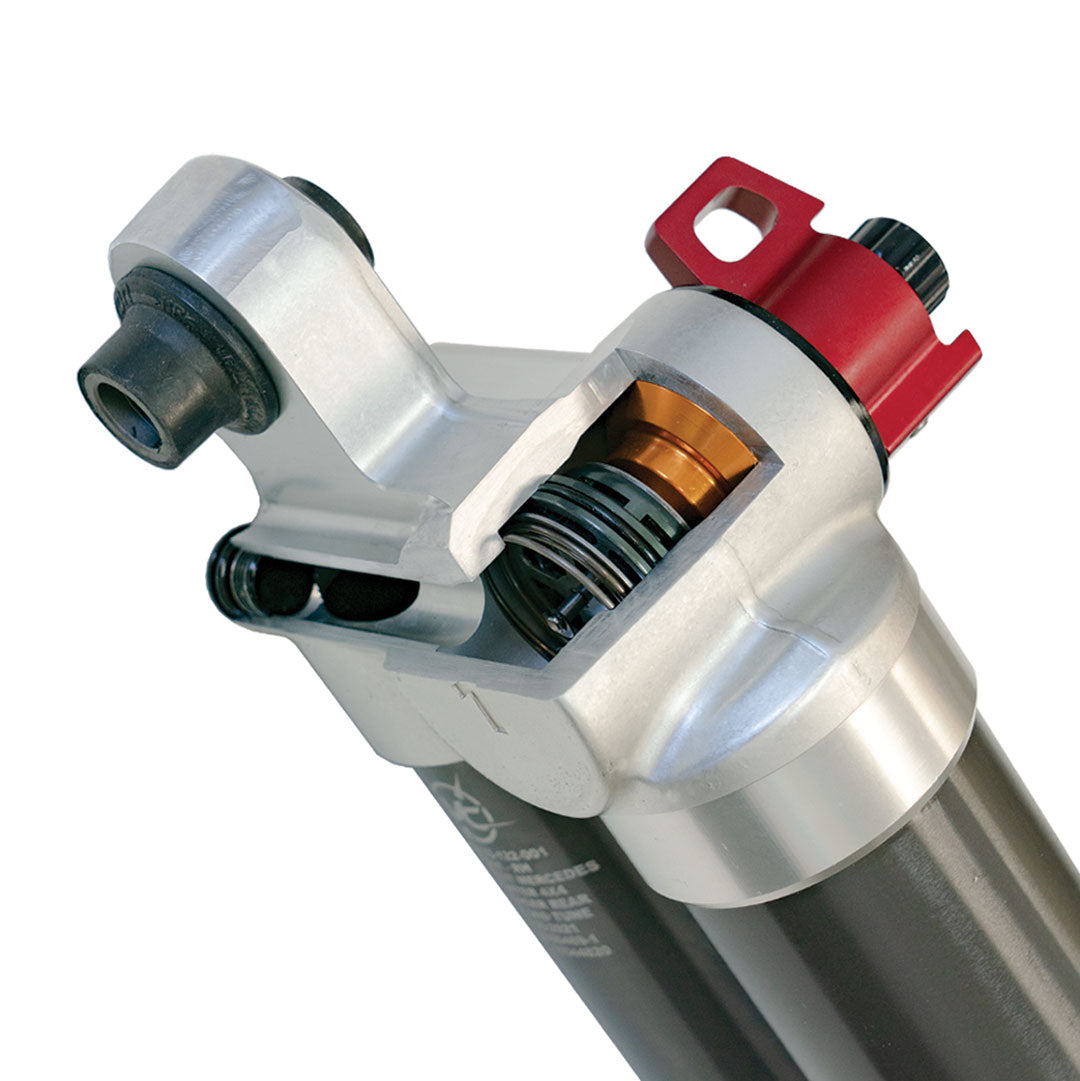

• VC-tuned Falcon 3.3 adjustable shocks with 10 intuitive firmness settings via an easily accessed Fast Adjust knob

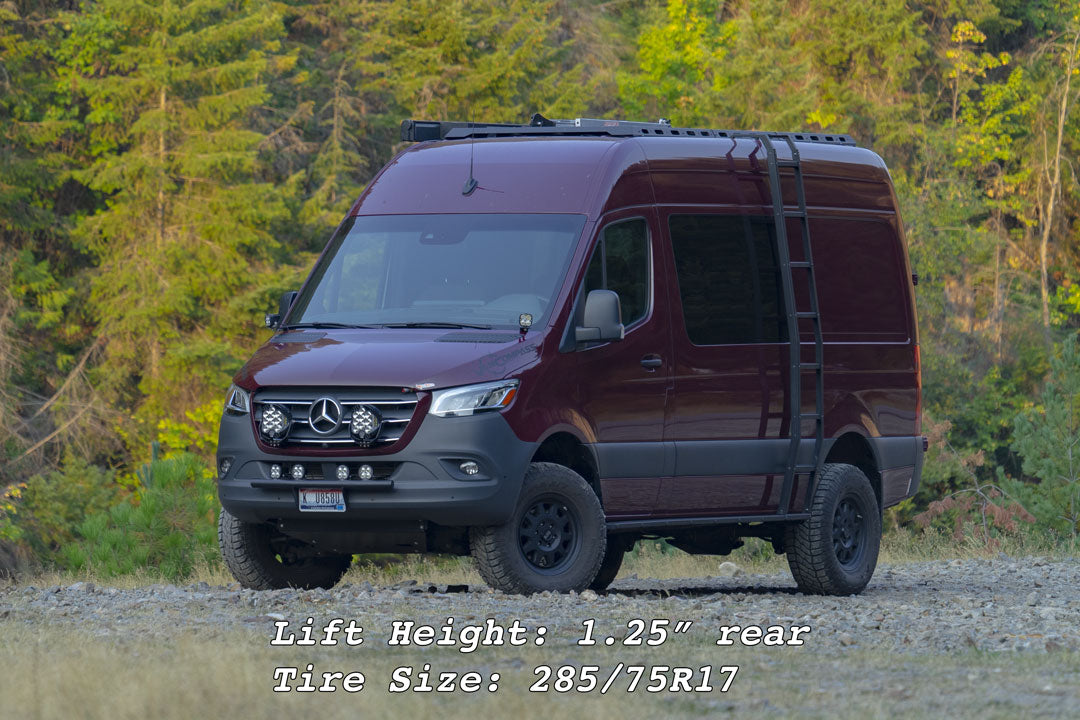

• Rear mini leaf spring pack restores lost ride height and corrects sag, typically yielding 1.25" of rear lift for a leveled stance
• Tuned to work with the stock rear leaf spring, retaining the quiet factory ride
• Progressive foam Bump Buddy jounce bumpers replace hard factory rubber for smoother progression and added bottom-out resistance
• 100% bolt on; ideal for adventure and conversion vans near or over GVWR, Class B RVs and loaded passenger vans

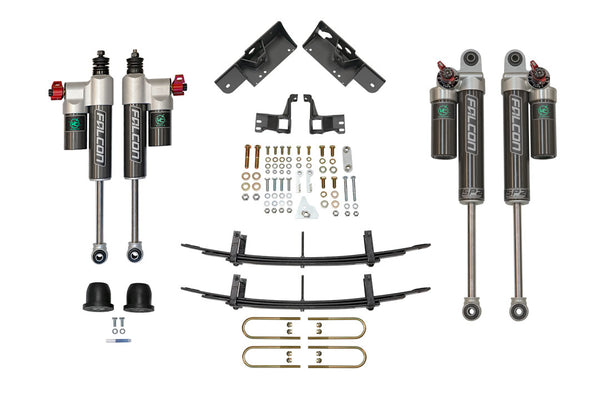

Included Components

• Falcon 3.3 Fast Adjust Front Shocks with Mounting Brackets
• Front Bump Buddies
• Falcon 3.3 Fast Adjust Rear Shocks with SP2
• Rear Mini Leaf Spring Pack
• Dust boots for all 4 shocks.
• All necessary hardware and instructions for a simple installation

Important Notes

• Up to 285/70R17 Tire
• Raises Front 0"
• Raises Rear 1.5"
• Wheels with 6.5" backspacing, or +52mm offset on an 8" wheel, require a minimum 14 mm wheel spacer to prevent tire contact with auxiliary shocks at full steering angle. EX: Black Rhino Warlord, Method 701
• Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.
• NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.

Installation Instructions

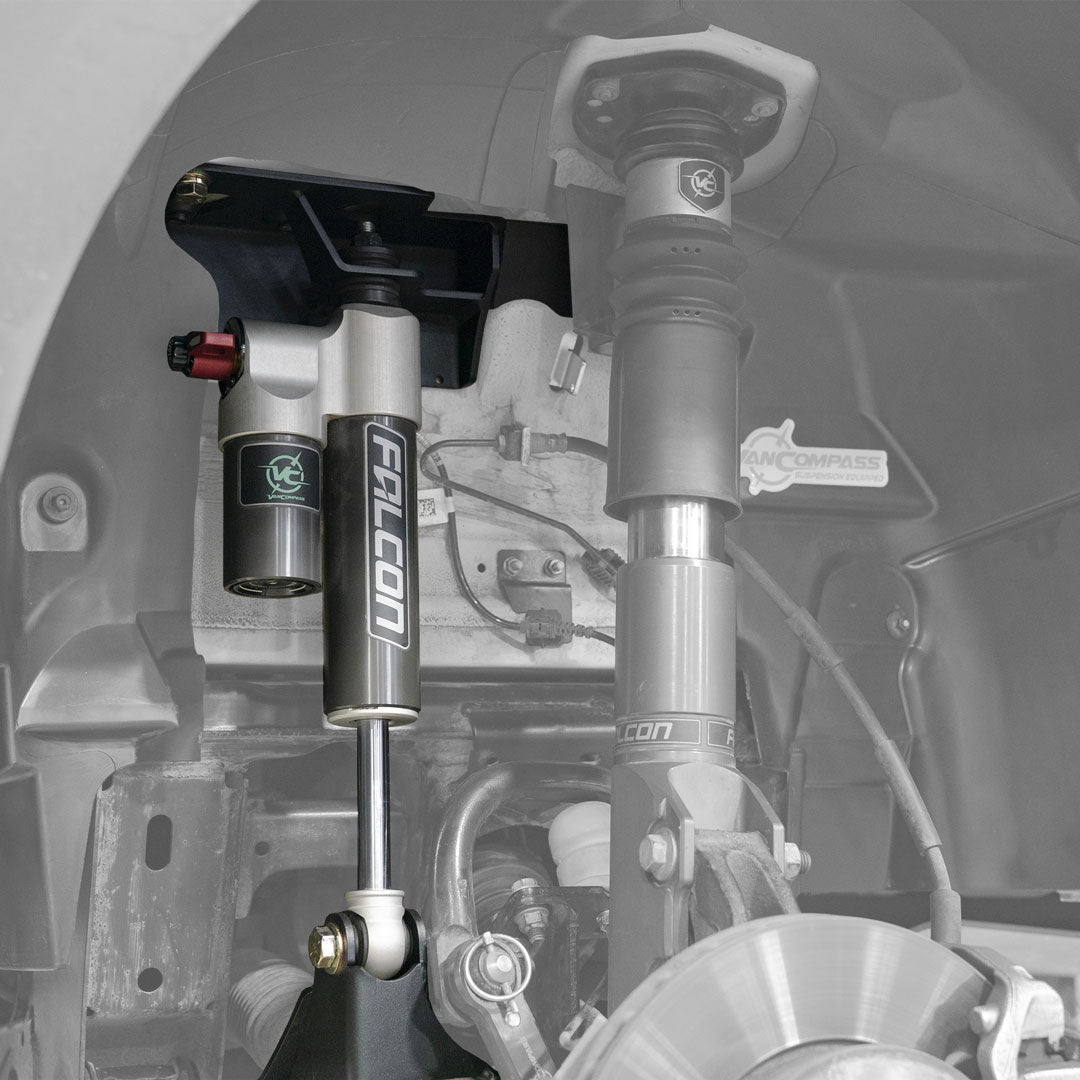

• 2015+ VS30 4x4 Falcon Front Shock Installation Instructions
• Falcon 3.3 SP2 Rear Shock installation instructions
• Sprinter AWD and 4x4 Front Bump Buddies installation instructions
• Rear Mini Pack Installation Instructions
• Falcon 3.3 Shock Settings Guide

Labor Time

Recommended shop labor time: 7 hours.

Specifications

• Grade Type: Performance
• Maximum Lift: 1.5 IN
• Maximum Lift Rear: 1.5 IN
