2015-2026 Sprinter 3500/3500XD 4x4 Suspension Kit (7051-3500-M)

The Stage 1 system is the foundation the rest of the Van Compass complete systems build from, and it's the perfect starting point for tightening up your Sprinter's loose handling. A VC-tuned four-corner Falcon 2.1 shock upgrade and a front bump stop upgrade work together to deliver better vehicle control and suspension compliance, for more confidence over any terrain and in unexpected emergencies.

Features

• VC-tuned Falcon 2.1 monotube shocks, front and rear
• Larger, more effective damper piston dramatically improves handling
• Reduces cornering lean, wind sway, and jarring impacts for less driver fatigue
• Progressive-foam Bump Buddy jounce bumpers replace the hard factory rubber bump stops
• Improved spring-curve progression and bottom-out resistance without clunking
• The core system the rest of the Van Compass complete systems build up from

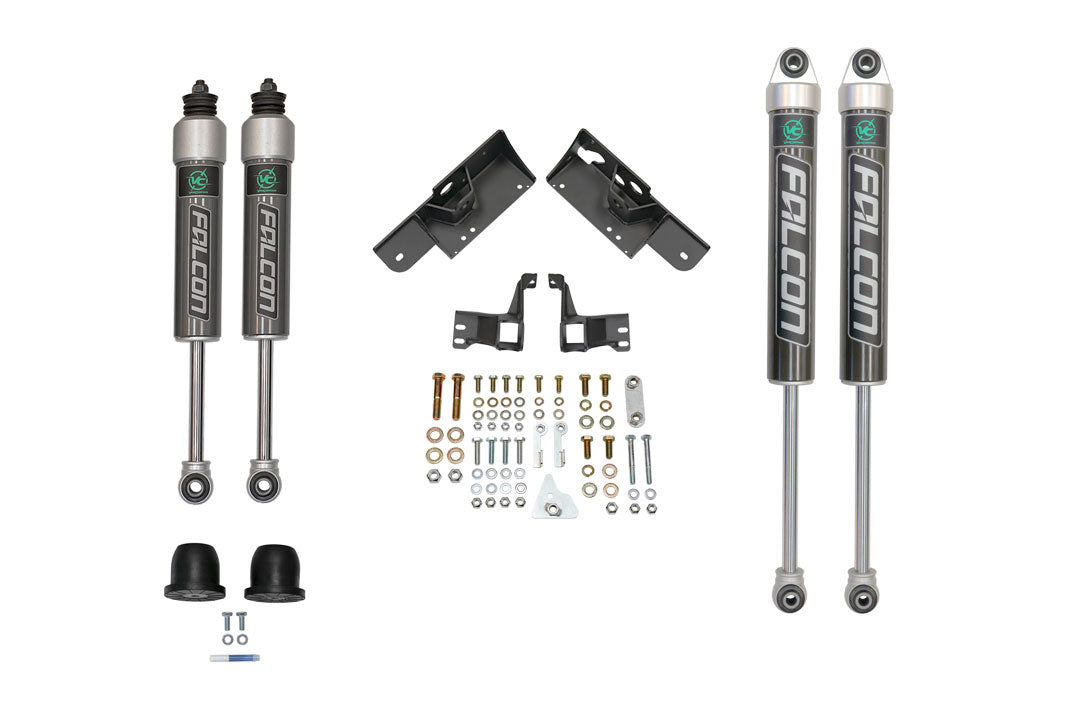

Included Components

• Falcon 2.1 Monotube Front Shocks with Mounting Brackets
• Front Bump Buddies
• Falcon 2.1 Monotube Rear Shocks
• Dust boots for all 4 shocks.
• All necessary hardware and instructions for a simple installation

Important Notes

• Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.
• NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.

Installation Instructions

• 2015+ VS30 4x4 Falcon Front Shock Installation Instructions
• NCV3, VS30 4x4 Falcon 2.1 Rear Shock Installation Instructions
• Sprinter AWD and 4x4 Front Bump Buddies installation instructions

Labor Time

Recommended shop labor time: 5 hours.

Specifications

• Grade Type: Performance
