2015-2026 Sprinter 3500/3500XD 4x4 Suspension Leveling Kit (7203-MH)

It's our best seller for a reason. The Van Compass Stage 4.3 system includes everything needed to properly correct the handling problems heavy Sprinter 3500 builds experience, balancing highway stability against off-pavement compliance. Adjustable Falcon 3.3 shocks team up with the flexible Opti-Rate leaf spring pack to restore lost ride height and tame sway, leaving you with a nicely leveled, confident-handling van.

Features

• VC-tuned Falcon 3.3 adjustable shocks with 10 intuitive firmness settings via an easily accessed Fast Adjust knob
• Opti-Rate leaf spring pack flexes for different van weights and restores ride height, typically yielding 1.25" of rear lift for a leveled stance
• Minimizes side-to-side sway and balances out jarring impacts
• Progressive foam Bump Buddy jounce bumpers replace hard factory rubber for smoother progression and added bottom-out resistance
• 100% bolt on; ideal for adventure and conversion vans near or over GVWR, Class B RVs and loaded passenger vans

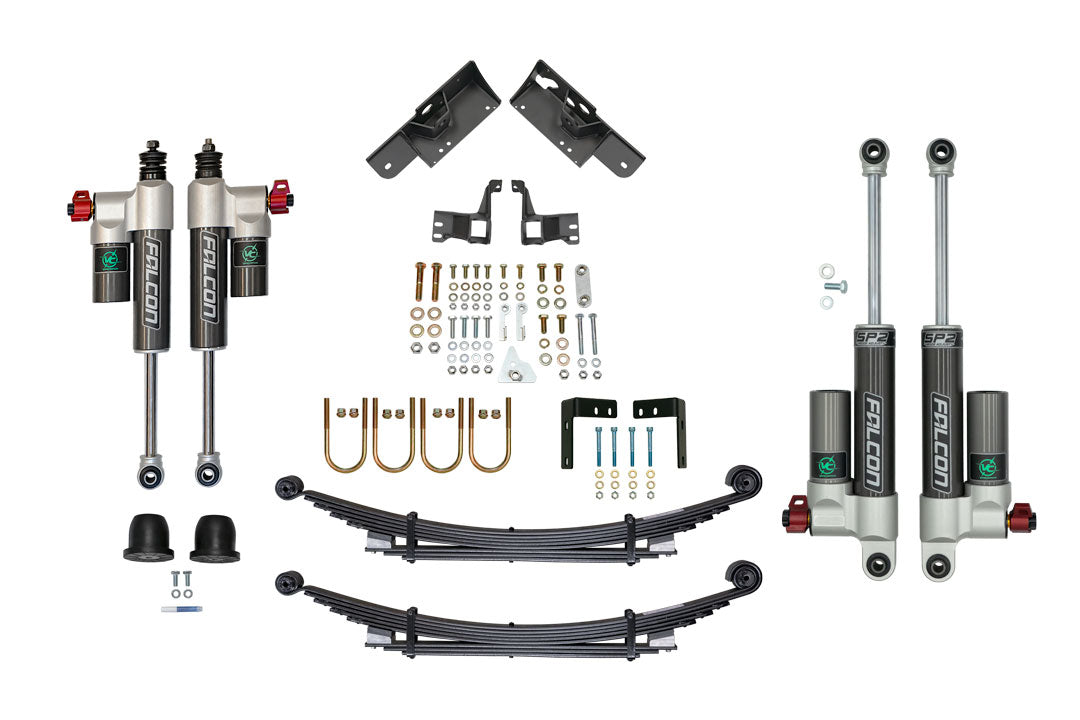

Included Components

• Falcon 3.3 Fast Adjust Front Shocks with Mounting Brackets
• Front Bump Buddies
• Falcon 3.3 Fast Adjust Rear Shocks with SP2
• Opti-Rate Full Replacement Rear Leaf Spring System
• Dust boots for all 4 shocks.
• All necessary hardware and instructions for a simple installation

Important Notes

• Raises Front 0"
• Raises Rear 1.5"
• Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.
• NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.

Installation Instructions

• 2015+ Front Shock installation instructions
• Sprinter AWD and 4x4 Front Bump Buddies installation instructions
• Falcon 3.3 DRW Rear Shock Installation Instructions
• Sprinter 3500 4WD Rear Spring Installation Instructions
• Falcon 3.3 Shock Settings Guide

Labor Time

Recommended shop labor time: 8 hours.

Specifications

• Grade Type: Performance
• Maximum Lift Rear: 1.5 IN
