2015-2026 Sprinter 4x4 Falcon 3.3 Fast Adjust Front Shocks, w/ Mounts (Pair) (7128)

Take full control of your 4x4 Sprinter's ride with Van Compass custom-tuned Falcon 3.3 Fast Adjust front shocks. A reachable adjuster knob delivers 10 compression damping settings across three positions, from light and fast on rough roads, to a dialed-in everyday tune, to maximum control under heavy loads, all while smoothing out washboard harshness and cutting side-to-side sway. Sold as a pair with mounts and tuned to your specific van for a serious upgrade over factory shocks.

Features

• 10 compression damping settings via the 3.3 Fast Adjust knob
• Internal SP2 free bleed enables 2 distinct tune profiles
• Three-position aluminum piggyback reservoir: light/fast, dialed-in everyday, and heavy-load/max control
• Smoother ride, better cornering, and reduced sway and wind buffeting
• 2.3" aluminum body with a full 2" damper piston (238% increase over stock)
• 3/4" hard-chromed shaft and high-pressure nitrogen charge for durability and cavitation-free operation

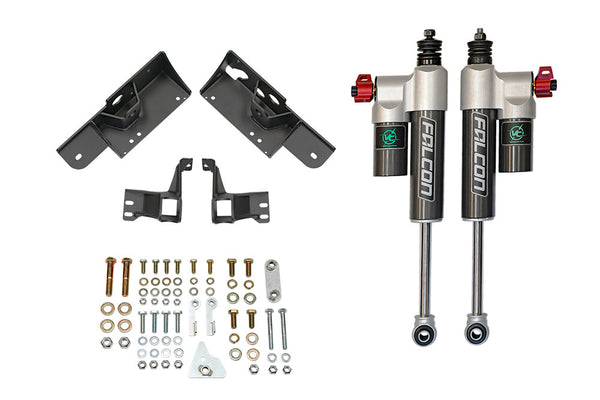

Included Components

• Tuned 3.3 Fast Adjust Reservoir Shocks, 1 pair
• Auxiliary Front Shock Bracket Set
• Shock Boots
• Mounting Hardware

Important Notes

• 45 mm Offset Wheels Recommended
• 38 mm Offset Wheels Recommended
• 2023+ AWD vans require fitment of a wheel with 6" backspacing or less. For a 17"x8" wheel, this corresponds with a +38mm offset. Wheels with a greater offset like +52mm, or more backspacing like 6.5", will rub the tire on the shock reservoir when the steering is turned.
• Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.

Installation Instructions

• 2019+ VS30 4x4 Falcon Front Shock Installation Instructions (Ship date after 12/13/2021)
• Falcon 3.3 Shock Settings Guide

Labor Time

Recommended shop labor time: 4 hours.

Specifications

• Bore Diameter: 2 IN
• Grade Type: Performance
• Internal Construction Type: Monotube
• Lower Mount Type: Eyelet
• Reservoir Style: Piggyback
• Shaft Diameter: .75 IN
• Tube Outside Diameter: 2.3 IN
• Upper Mount Type: Stem
