2015-2026 Transit 2WD Complete 4" Lift Kit (7233)

Finally, a complete 4" lift kit for the Transit RWD platform. It combines the proven Topo 2" lift kit, a tuned rear mini leaf spring pack and a new 2" lift spindle to create the ultimate high-clearance 2WD setup for clearing bigger tires and getting your van the room it needs to go farther. The lift spindle, a long-time desert-racing staple, adds clearance right where it matters most: under the control arms, cross members and frame.

Features

• Complete 4" front / 2" rear lift for the Transit RWD platform
• 2" lift spindle adds clearance under the control arms, cross members and frame and widens track 1" total for added stability
• Preserves front-end geometry, holding camber, caster, Ackerman and tie rod angles within spec
• Precision-cut, machined spindles with pre-installed Motorcraft ball joints and zinc-oxide plating for corrosion resistance

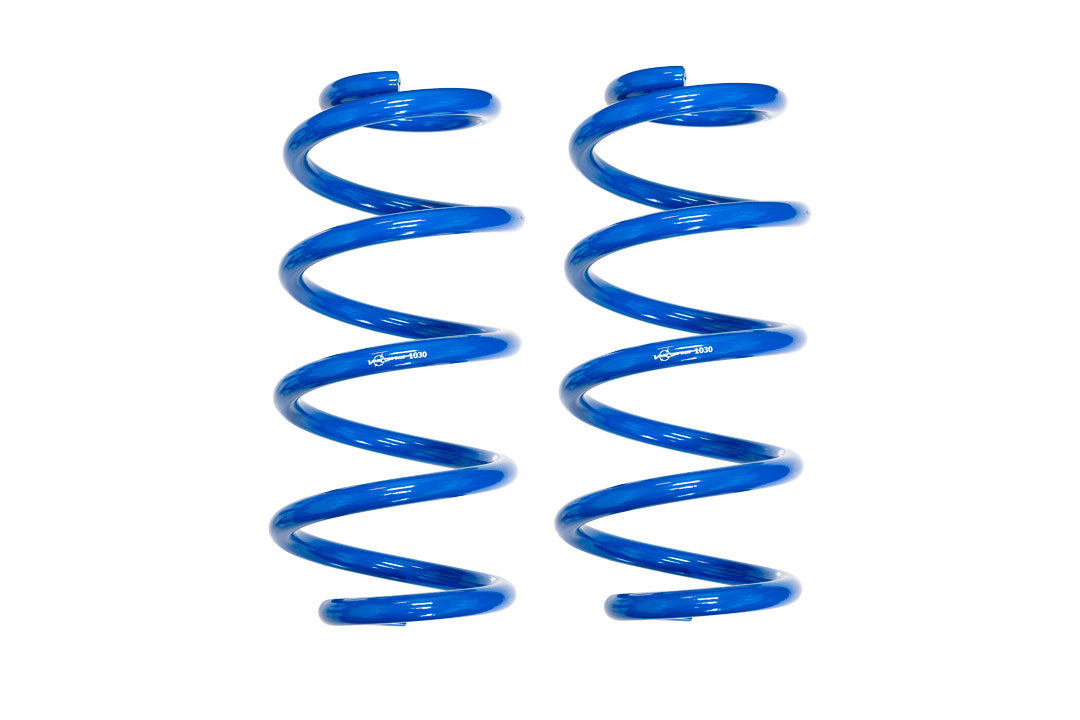

• Topo front and rear lift adds a taller coil, camber correction plates, a lift block and mini leaf spring for heavy vans
• Fully compatible with Falcon rear shocks and Bilstein front struts; a 4" lifted front will clear a 285/70R17

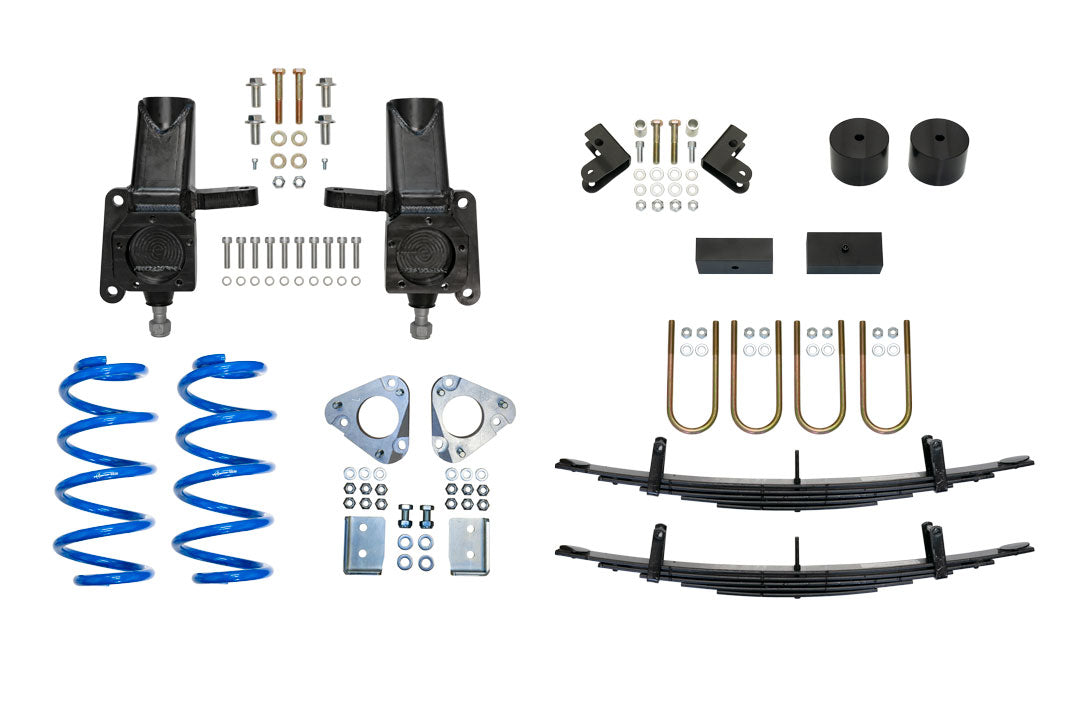

Included Components

• Transit 2" Lift Spindle
• 2" Topo Front Leveling Kit
• Rear Mini Spring Pack
• Rear High Clearance Shock Brackets
• 2" Bump Stop Drop
• 2" Rear Lift Block
• U-Bolts and Mounting Hardware

Important Notes

• Vehicles Equipped With Rear Sway Bar
• Also requires part number 3067
• with Single Rear Wheels (SRW)
• Offset Wheels Recommended
• 2015-17 VANS REQUIRE MOTORCRAFT AD1157 UPPER STRUT MOUNT AND DRILLING HOLES TO 10MM
• Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.
• Vans equipped with a rear sway bar will require 3067 - Extended sway bar links

Installation Instructions

• 2015+ Transit RWD Front 2" Lift Spindle Installation Instructions
• 2015+ Transit Topo Front Kit Installation Instructions
• 2015+ Transit Topo Rear Kit Installation Instructions
• 2013+ Transit Topo Rear Leaf Pack Installation Instructions
• Transit high clearance shock mount installation instructions

Labor Time

Recommended shop labor time: 14 hours.

Specifications

• Grade Type: Performance
• Maximum Lift: 4.0 IN
• Maximum Lift Front: 4 IN
• Maximum Lift Rear: 2 IN
