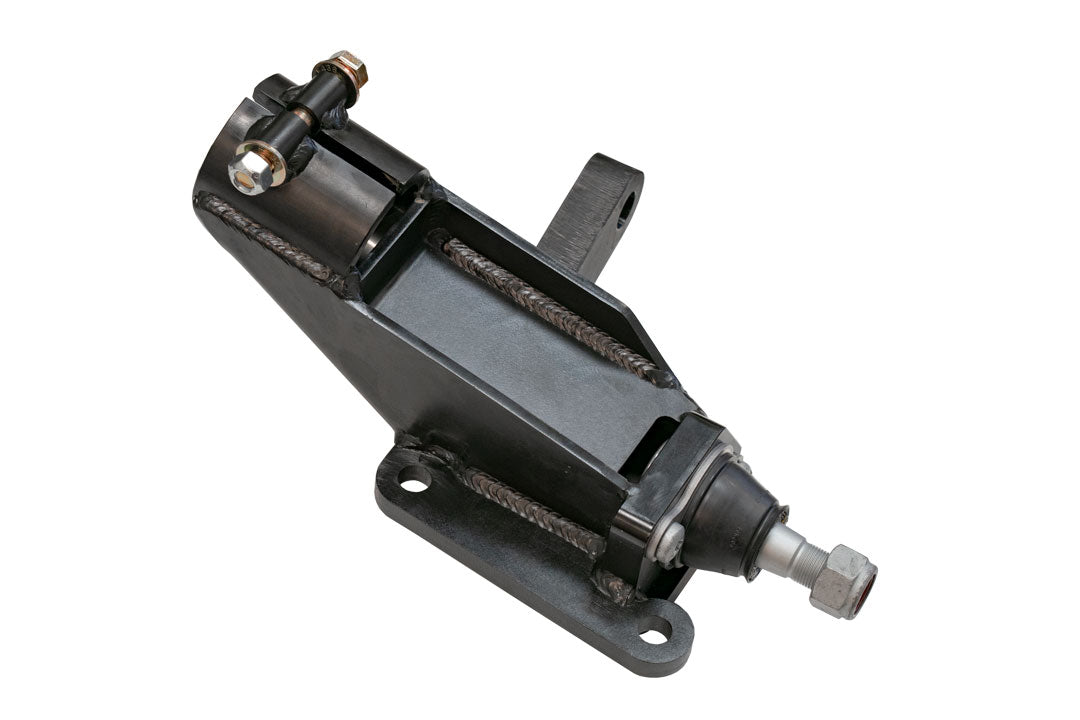

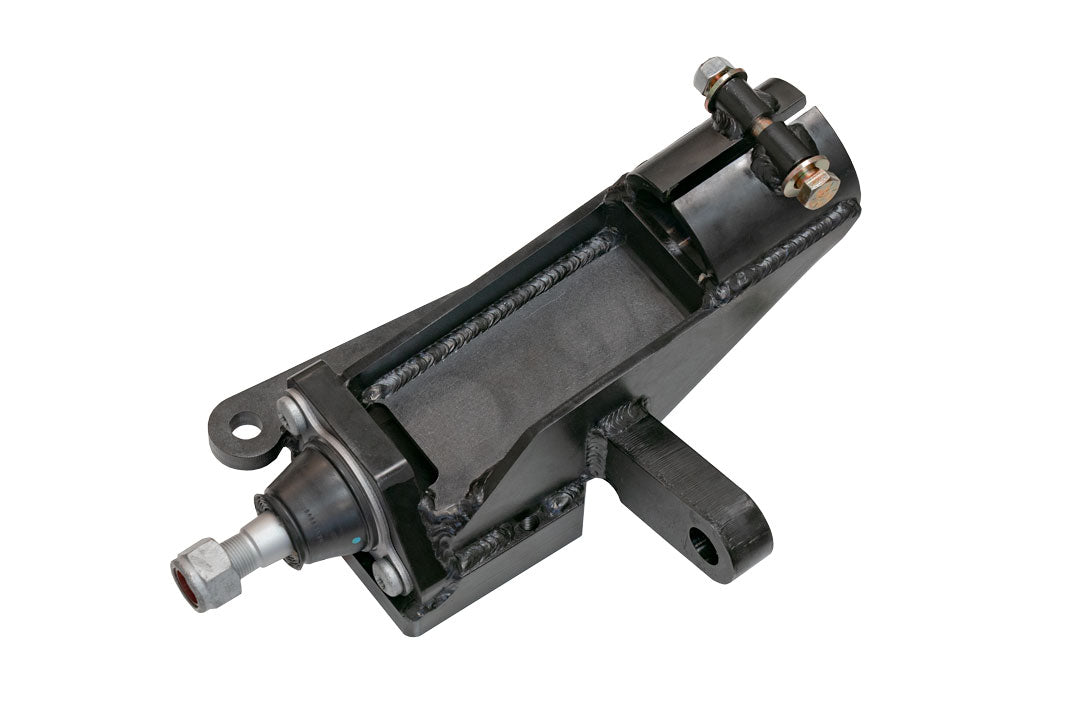

2015-2026 Transit 2WD Front 2" Lift Spindle (1046)

Get the most front clearance possible from your rear-wheel-drive Transit with the Van Compass 2" lift spindle. A long-time staple of the desert racing world, lift spindles add clearance where it matters most, under the front control arms, cross members, and frame, making room for larger tires and more capability. Carefully engineered to preserve the factory front-end geometry, it keeps your tie rod angle, camber, caster, and Ackerman angles within correct specifications.

Features

• Adds 2" of front lift and clearance under the control arms, cross members, and frame
• Track width increased a modest 1/2" per side (1" total) for added stability and better scrub radius with larger tires
• Preserves complex factory geometry without altering tie rod angle or placement
• Motorcraft ball joints pre-installed to simplify the install and ensure long service life
• Precision cut and machined parts key together for solid construction
• Zinc-oxide plated for corrosion resistance, complete hardware kit included
• Works standalone for a leveled stance or with the Topo 2" front lift kit for 4" of total front lift (clears a 285/70R17)

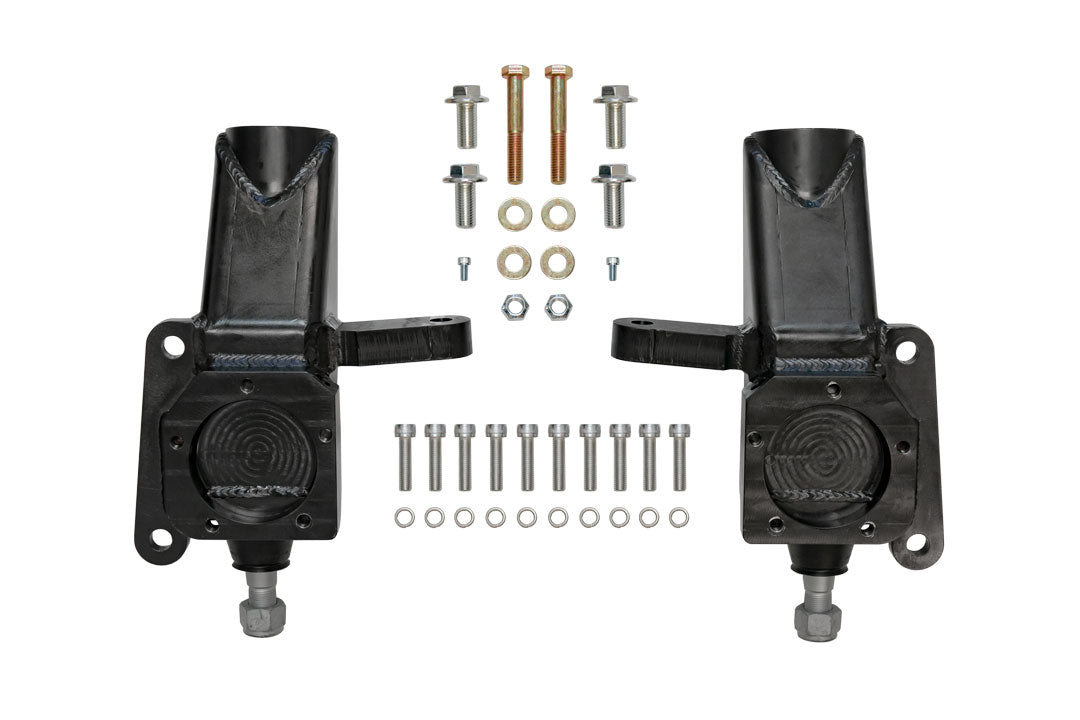

Included Components

• Front 2" Lift Spindles, 1 pair
• Mounting Hardware

Important Notes

• For single rear wheel (SRW) vans
• Offset aftermarket wheels recommended; Van Compass recommends a 17"x8" wheel with 45mm offset. Trimming of the pinch seam is required.
• DOES NOT FIT DUAL REAR WHEEL VANS
• Not compatible with Dual Rear Wheel models, or All Wheel Drive.

Labor Time

Recommended shop labor time: 5 hours.

Specifications

• Color: Black
• Material: Steel
• Grade: Performance
