2015-2026 Transit Opti-Rate Replacement Leaf Springs (Pair) (3065)

The Opti-Rate spring pack is the culmination of more than a decade of tuning leaf springs across every ride height, payload, and use case. Built-out Transits often suffer harsh bottom-out from the weight they carry, and traditionally springs had to be ordered to a specific weight and lift before the build was finished. Opti-Rate changes that with an industry-first tunable preload system, letting you dial in spring rate and ride height in one package, a true 'one size fits all' solution for builders, installers, and step-by-step DIYers.

Features

• Industry-first tunable preload system adjusts both spring rate and ride height
• Three-part design: primary main springs, a 3-leaf secondary stage, and billet Adjustable Preload Spacers (APS) with stackable delrin pads
• Run no APS for the softest ride, one pad for a firmer mid setting, or two for maximum rate and ride height
• Preload can be changed with just a floor jack, socket wrench, and mallet, springs stay on the van
• Sold as a pair

Included Components

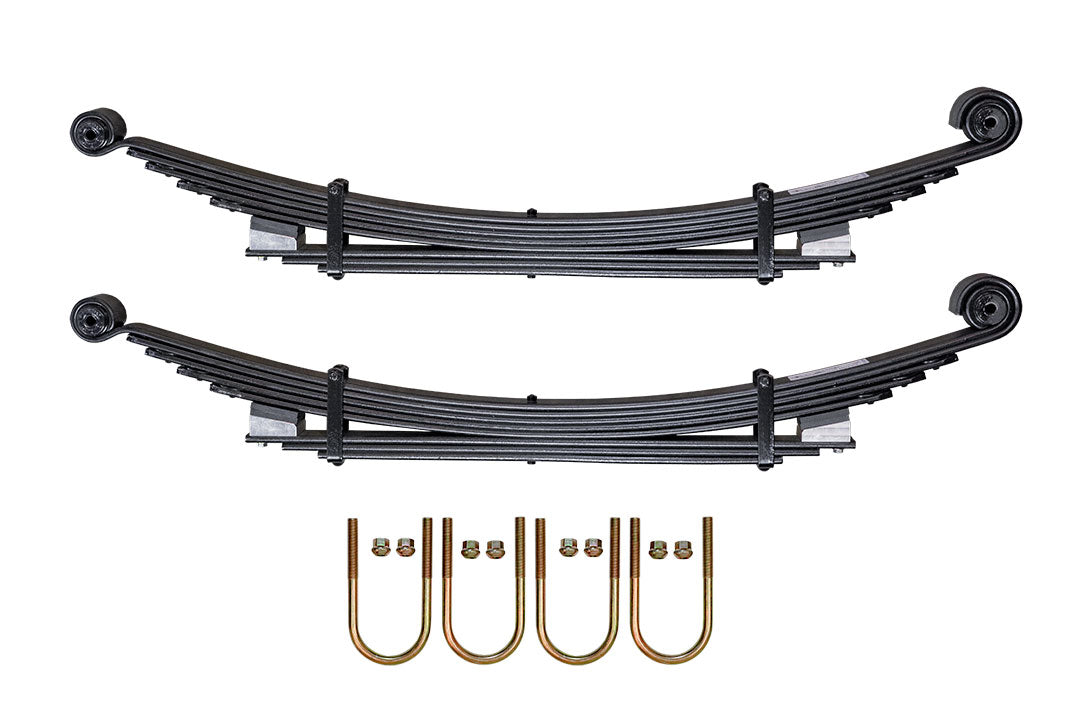

• Opti-Rate Full Replacement Leaf Springs (matched pair)

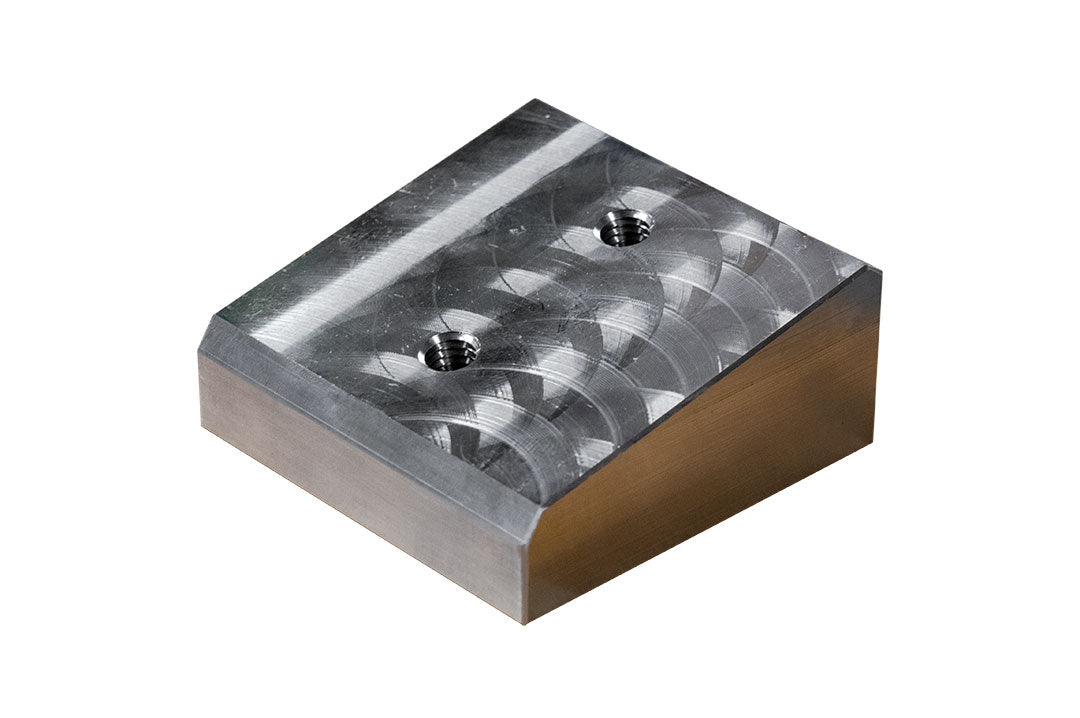

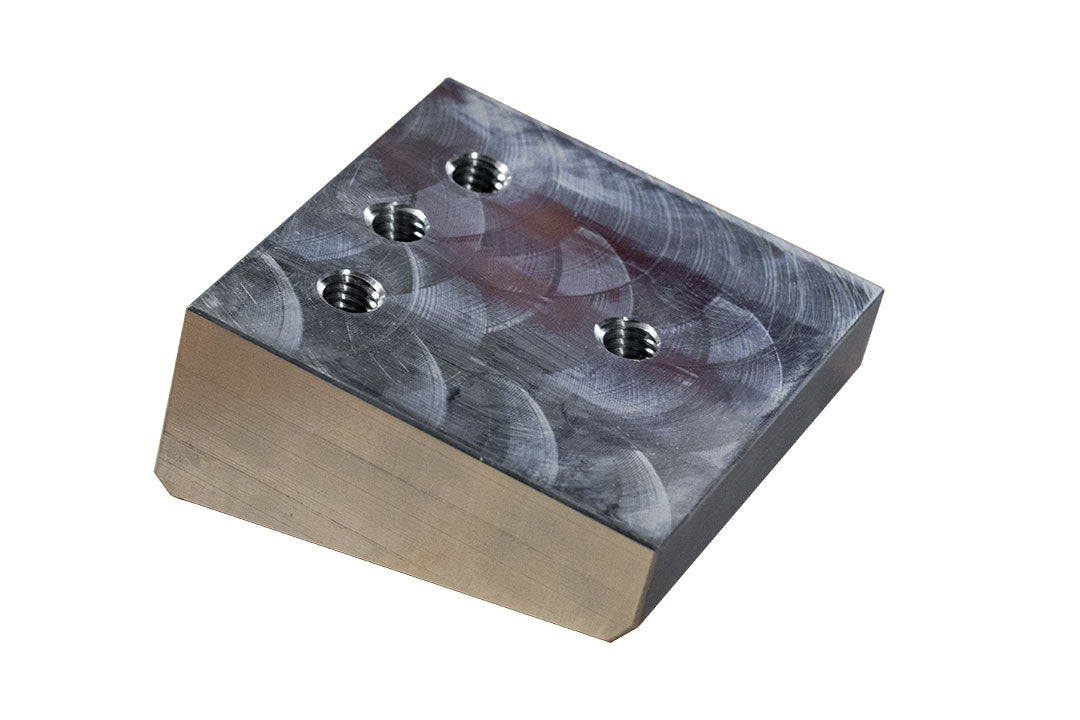

• 4 Billet Adjustable Preload Spacer Blocks
• 4 Top preload spacers glide pads
• 4 Middle preload spacers
• U-bolts and Nuts

Important Notes

• Vans equipped with a factory rear sway bar require the Van Compass extended rear sway bar links, available here (part number 3067).
• These require truck freight to ship; a commercial address helps save on shipping costs.
• Progressive rate leaf springs operate differently to factory style parabolic leaf springs. Periodic maintenance, lubrication and deep cleaning may be necessary to maintain quiet, optimum operation.

Labor Time

Recommended shop labor time: 3 hours.

Specifications

• Color: Black
• Material: Steel
• Finish: Painted
• Grade: Performance
