2015-2026 Transit Stage 1 Topo 2.0 System, Mid Tune (7211-M)

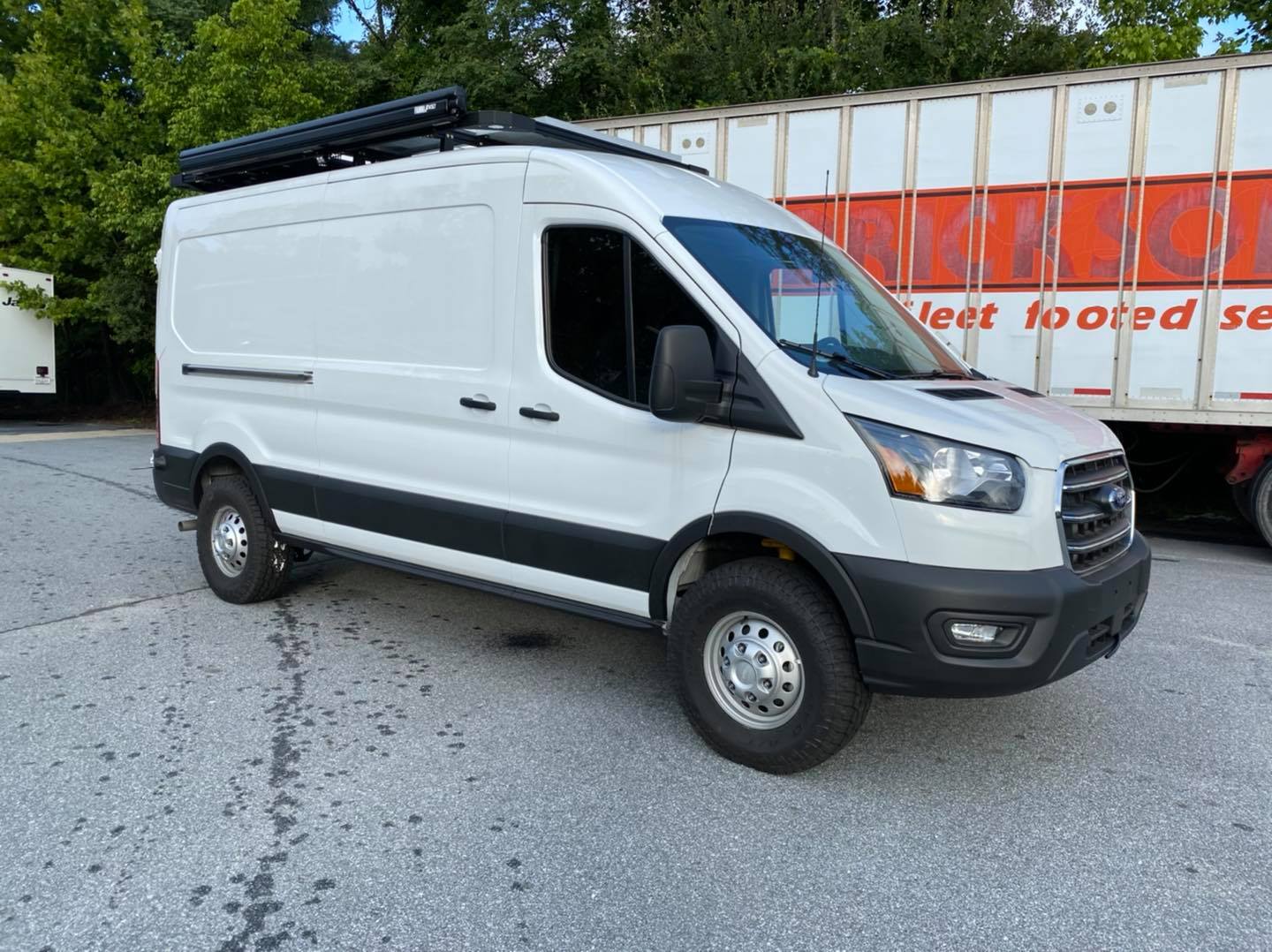

Give your 2015-2026 Transit an aggressive 2" stance and a genuinely better ride with the Van Compass Stage 1 Topo 2.0 System. This entry-level package lifts the van a true 2", clears larger tires, and upgrades to VC-tuned Falcon 2.1 Monotube shocks that crush body roll, sway, and harsh impacts. It is ideal for lighter vans without sag problems and passenger vans wanting a tougher look.

Features

• True 2" lift for larger tires and improved approach, breakover, and departure angles
• 0.75" lift camber-correction plate with a tuned coil spring (1.25" front gain plus added compression travel)
• 2" billet aluminum rear block with bump-stop spacers to preserve suspension geometry

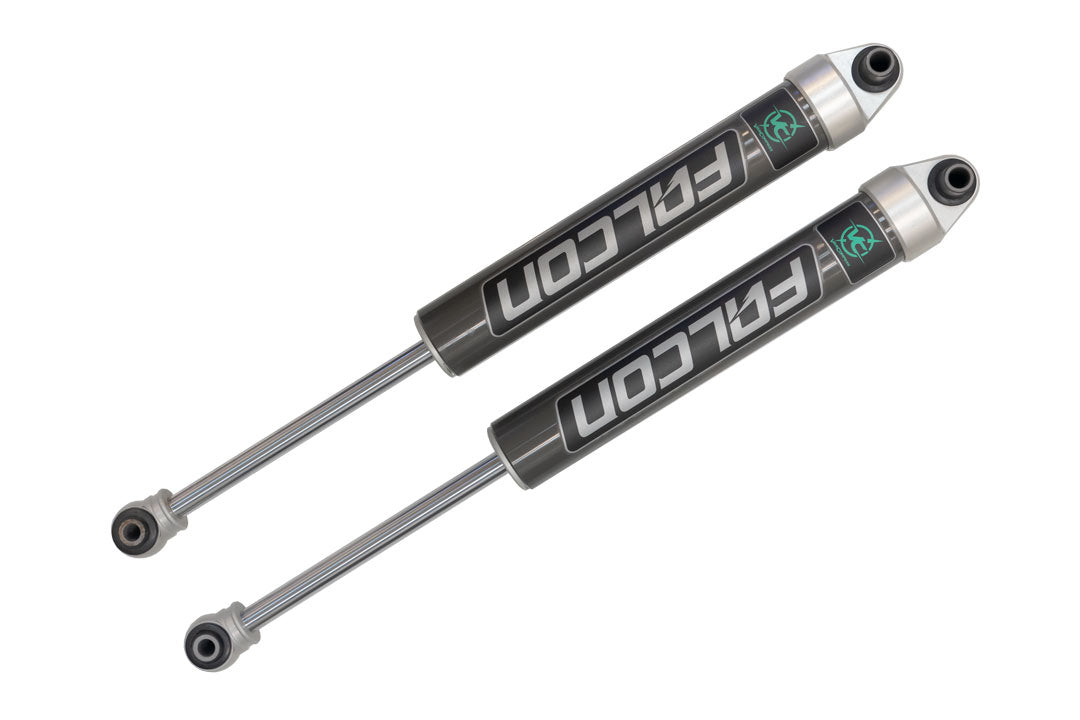

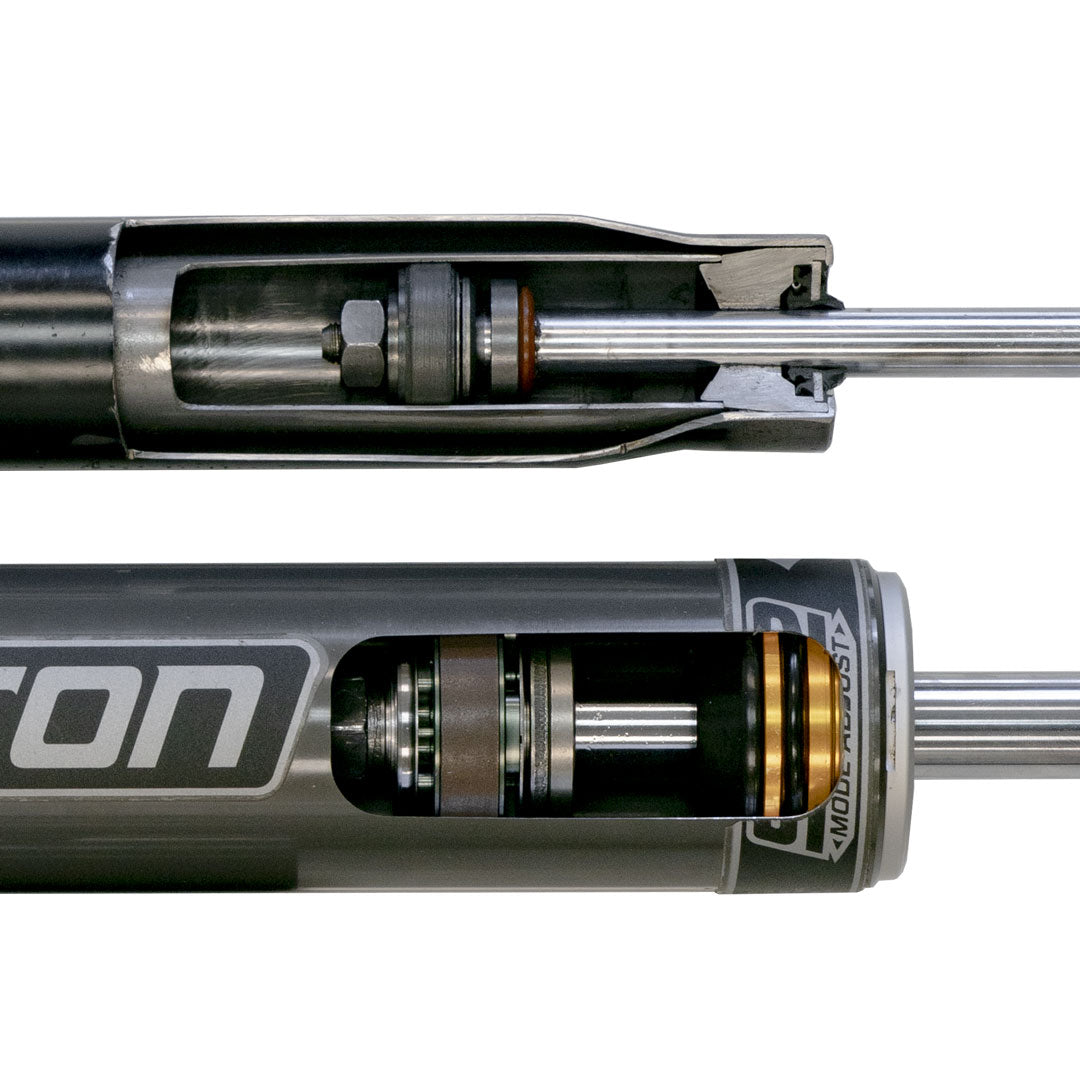

• VC-tuned Falcon 2.1 Monotube shocks with a larger, more effective damper piston
• Included rear shock relocation brackets improve ground clearance under the axle
• Reduces cornering lean, violent sway, and jarring impacts

Included Components

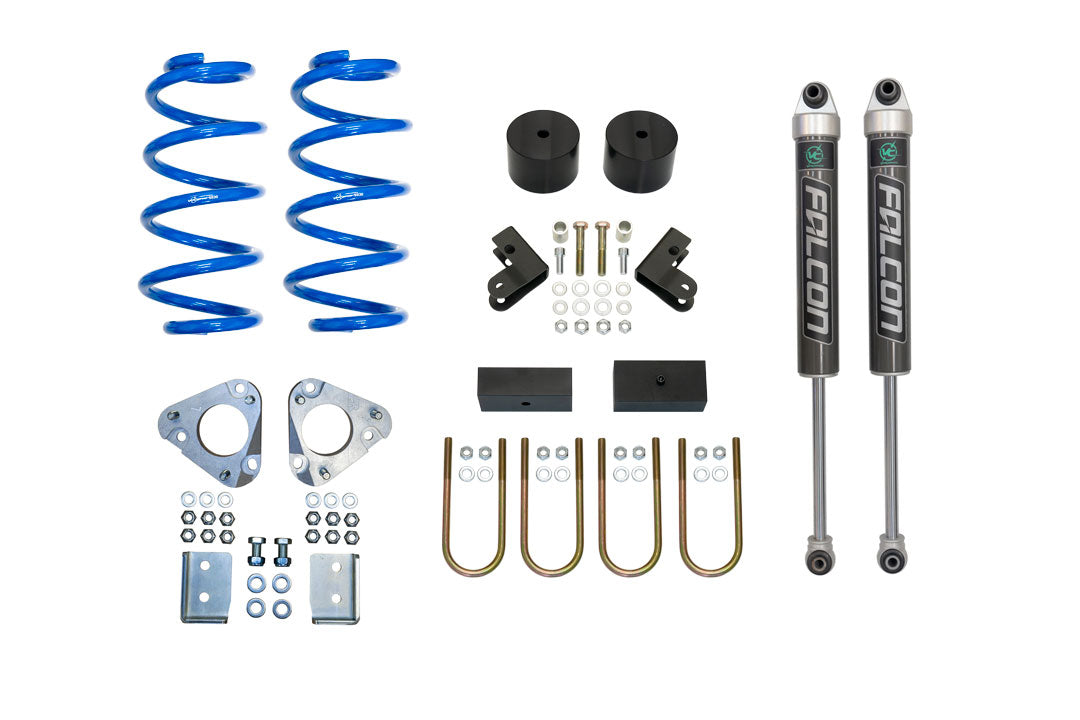

• Topo 2.0 Front and Rear Lift Kit
• Tuned Falcon 2.1 Monotube Rear Shocks (1 pair)
• High Clearance Rear Shock Brackets

Important Notes

• Raises Front 2"
• Raises Rear 2"
• 2015-17 VANS REQUIRE MOTORCRAFT AD1145 UPPER STRUT MOUNT AND DRILLING HOLES TO 10MM
• Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.
• Bilstein B6 strut not recommended for AWD models.

Installation Instructions

• 2015+ Transit Topo Front Kit Installation Instructions
• 2013+ Transit Topo Rear Kit Installation Instructions
• 2013+ Transit Rear Falcon 2.1 Installation Instructions
• 2013+ Transit High Clearance Shock Brackets Installation Instructions

Labor Time

Recommended shop labor time: 8 hours.

Specifications

• Maximum Lift: 2.0 IN
• Maximum Lift Front: 2 IN
• Maximum Lift Rear: 2 IN
