2015-2026 Transit Stage 2 Topo 2.0 System, Mid/Heavy Tune (7212-MH)

Step up to adjustable damping with the Van Compass Stage 2 Topo 2.0 System for your 2015-2026 Transit. A true 2" of lift opens up tire clearance and trail geometry, while VC-tuned Falcon 3.3 Fast Adjust rear shocks let you fine-tune ride quality on the fly with 10 firmness settings. It is the versatile choice for heavier and passenger vans that want to change ride feel at will.

Features

• True 2" lift for larger tires and improved off-road geometry
• 0.75" lift camber-correction plate with a tuned coil spring (1.25" front gain plus added compression travel)
• 2" billet aluminum rear block with bump-stop spacers to preserve suspension geometry

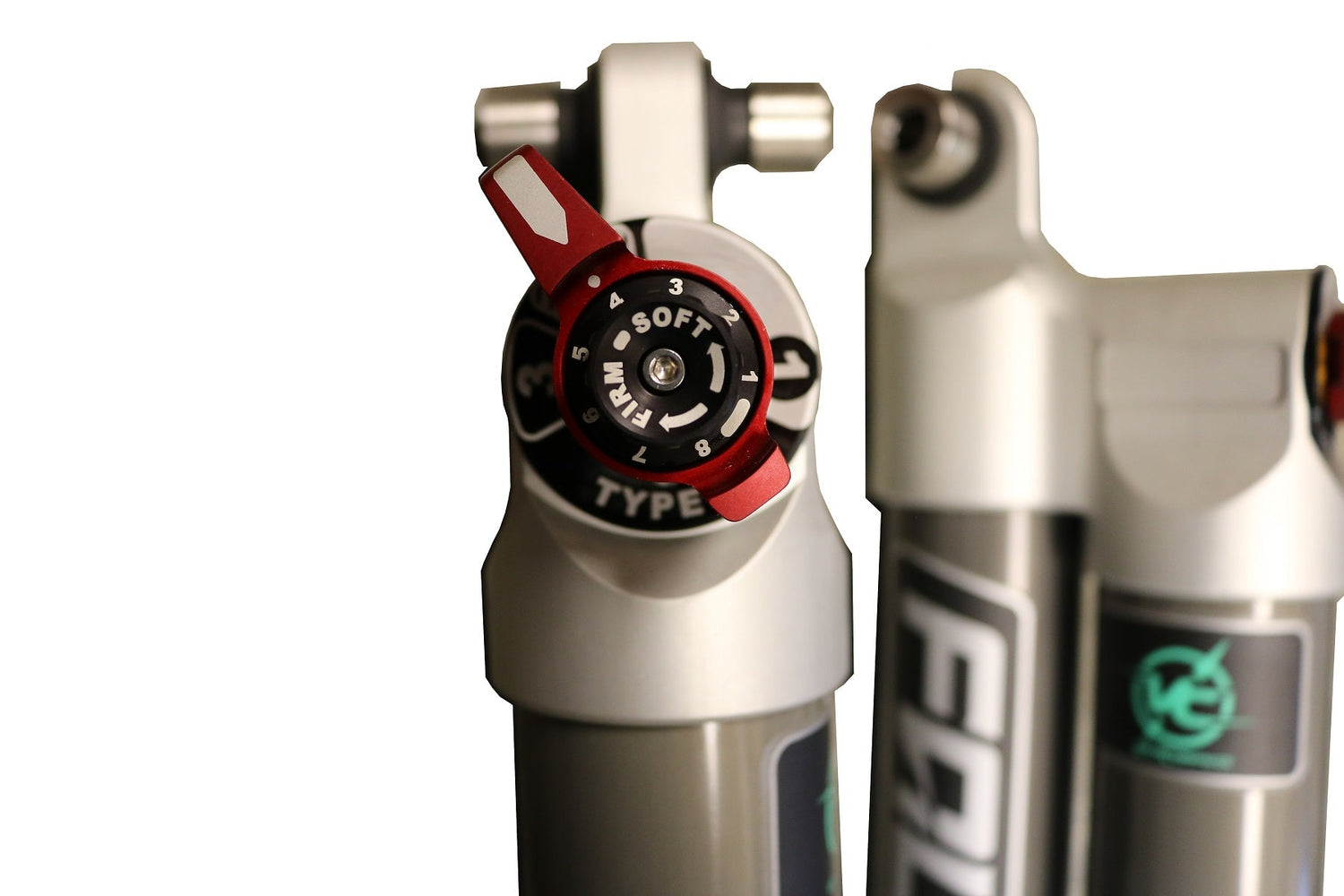

• VC-tuned Falcon 3.3 Fast Adjust rear shocks with 10 on-the-fly firmness settings
• Included rear shock relocation brackets improve ground clearance under the axle
• Wide compression range adapts to multiple modes of use

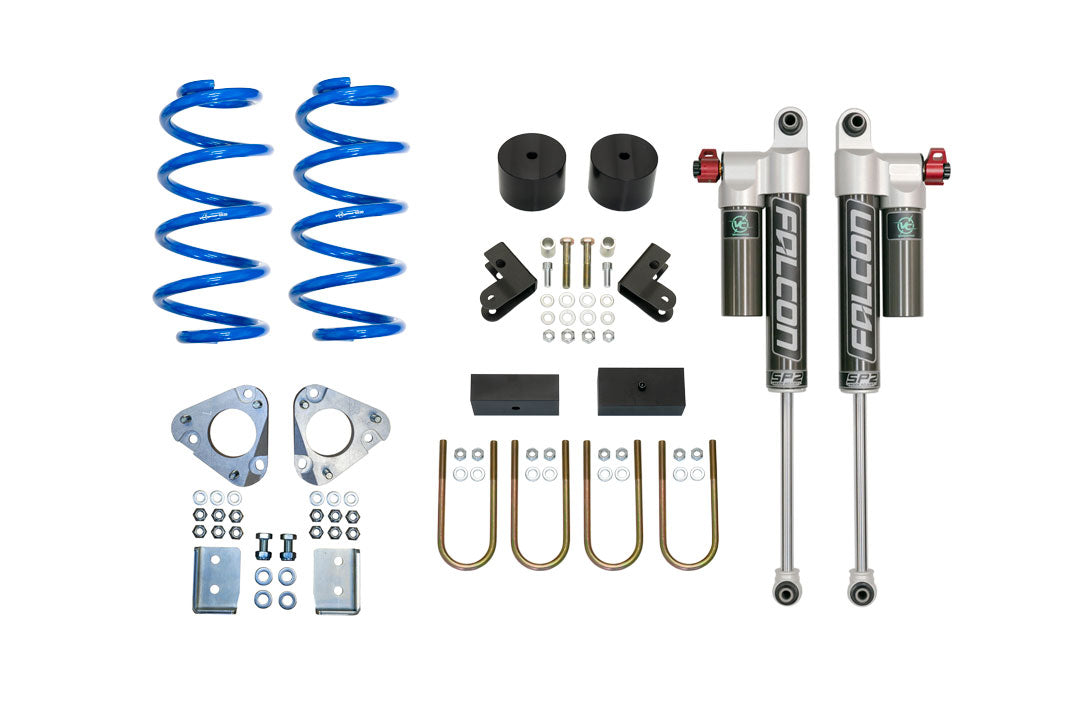

Included Components

• Topo 2.0 Front and Rear Lift Kit

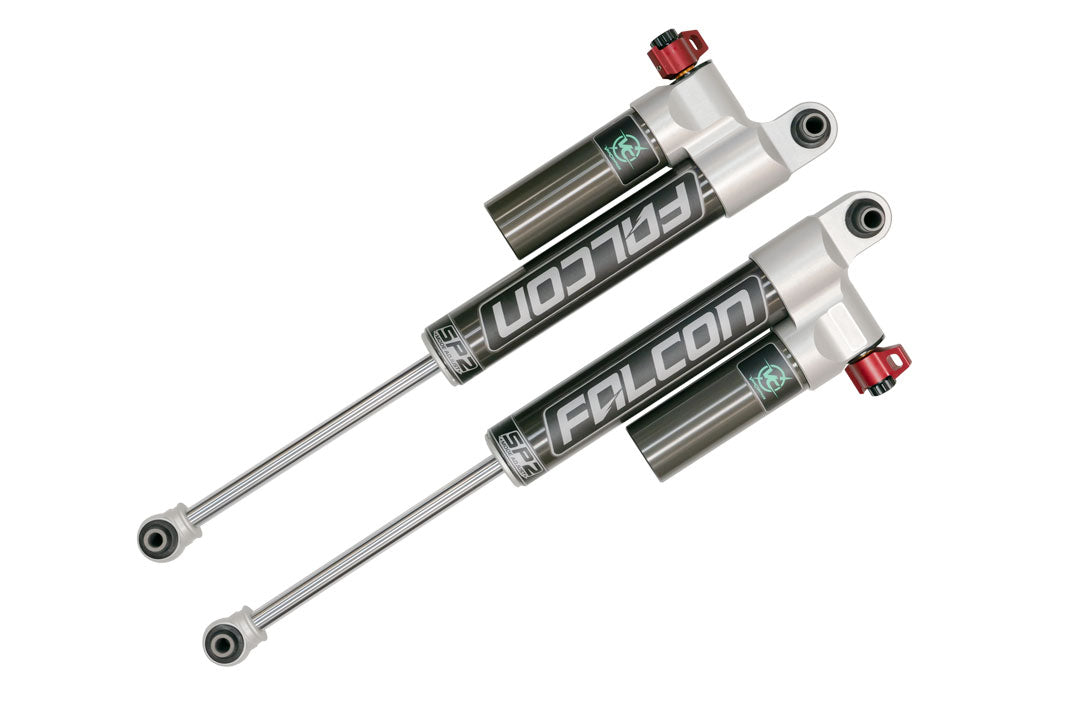

• Tuned Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks (1 pair)
• High Clearance Rear Shock Brackets

Important Notes

• Raises Front 2"
• Raises Rear 2"
• 2015-17 VANS REQUIRE MOTORCRAFT AD1145 UPPER STRUT MOUNT AND DRILLING HOLES TO 10MM
• Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.
• Bilstein B6 strut not recommended for AWD models.

Installation Instructions

• 2015+ Transit Topo Front Kit Installation Instructions
• 2013+ Transit Topo Rear Kit Installation Instructions
• 2013+ Transit Rear Falcon 3.3 Installation Instructions
• 2013+ Transit High Clearance Shock Brackets Installation Instructions
• Falcon 3.3 Shock Settings Guide

Labor Time

Recommended shop labor time: 8 hours.

Specifications

• Maximum Lift: 2.0 IN
• Maximum Lift Front: 2 IN
• Maximum Lift Rear: 2 IN
