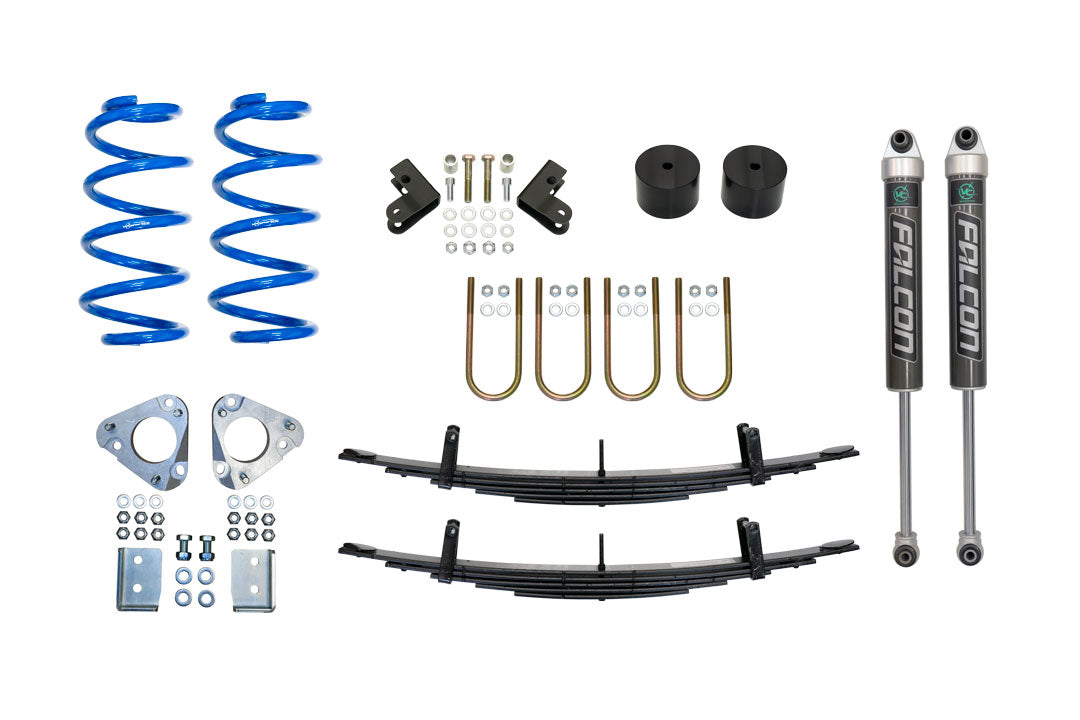

2015-2026 Transit Stage 3 Topo 2.0 Lift System, Heavy Tune (VAN7213-H)

Description

Van Compass built the Topo 2.0 system around the Transit's packaging and front CV constraints, so you get a real 2 inch lift that drives better than stock instead of a spacer that just looks taller. Stage 3 adds VC-tuned Falcon 2.1 monotube shocks that take the lean and wind sway out of a tall van, and this Heavy Tune version is valved for vans over 9,100 lb. Up front, a 0.75 inch camber correction plate and a tuned coil spring deliver the lift with more compression travel; in the rear a 5-leaf mini pack raises the van 2 to 2.5 inches and adds 10 to 15 percent spring rate to fight sag.

Features

• Aggressive 2 inch taller stance with room for larger tires

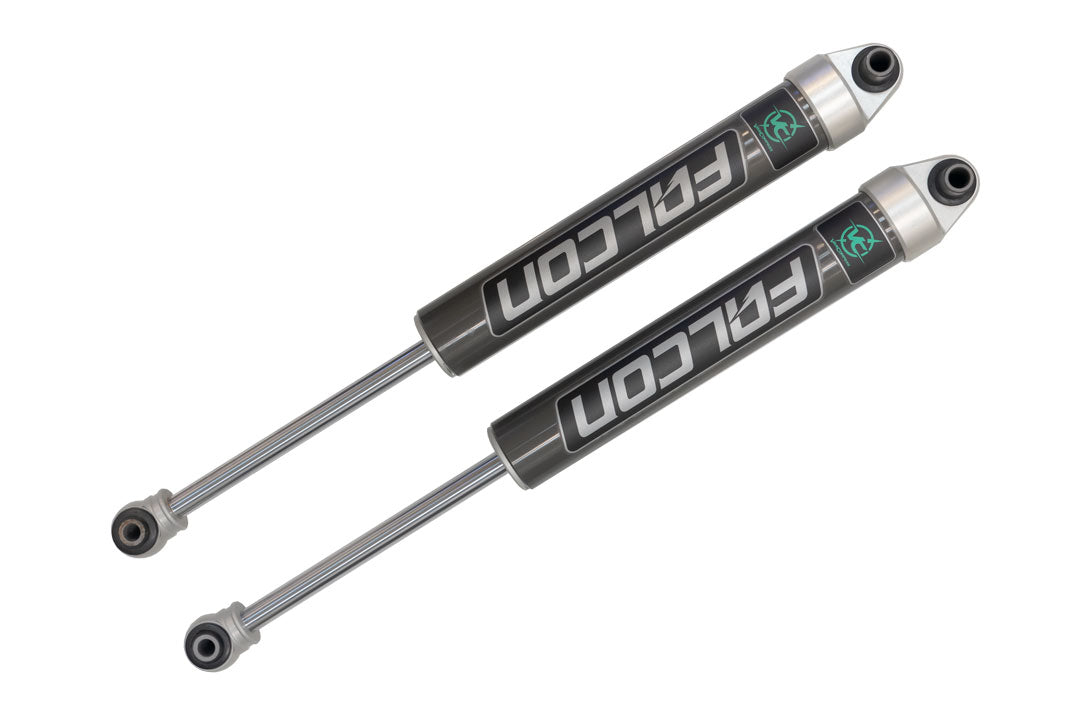

• VC-tuned Falcon 2.1 monotube shocks, heavy tune for vans over 9,100 lb

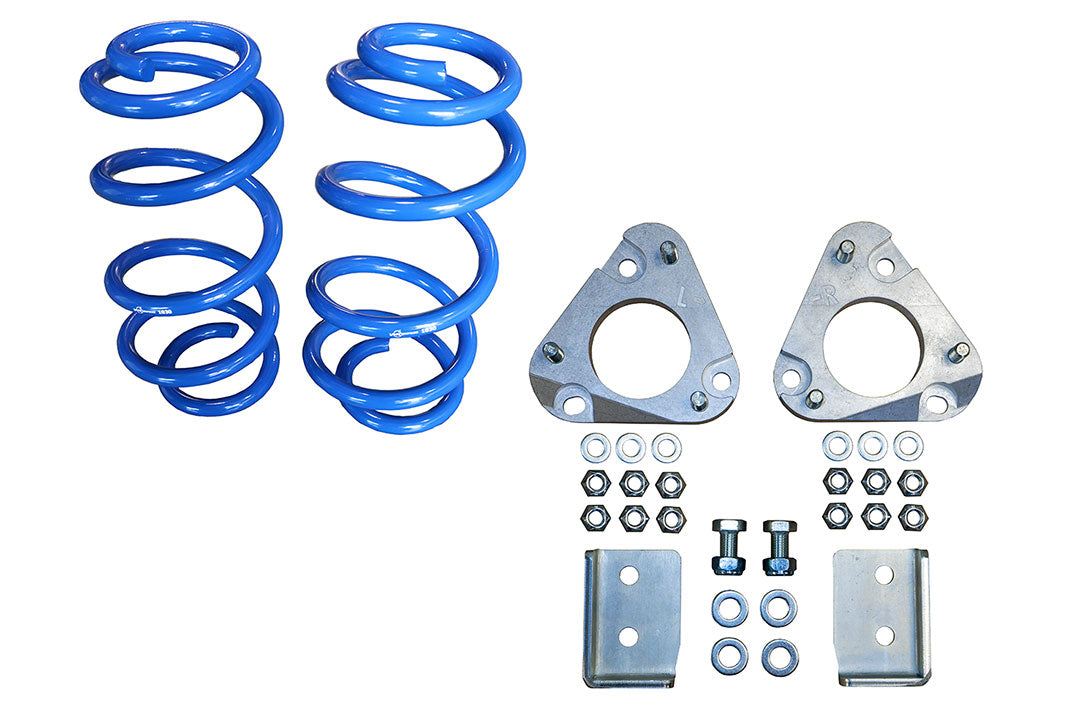

• 0.75 inch camber correction plate plus a tuned coil spring for 1.25 inch of spring lift up front

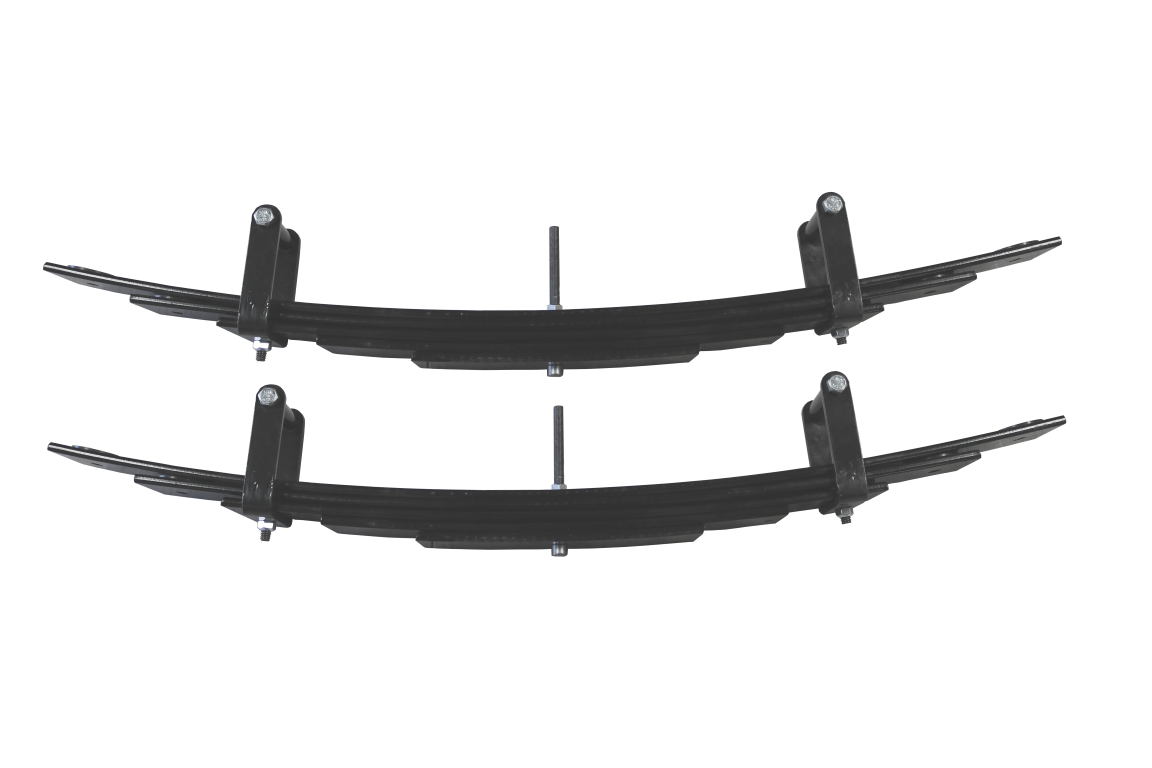

• 5-leaf rear mini pack adds 10 to 15 percent spring rate and lifts the rear 2 to 2.5 inches
• Friction-reducing leaf tips for a smooth, quiet ride
• Rear shock relocation brackets let the low factory brackets be trimmed for more ground clearance
• Increased approach, breakover and departure angles
• Enhanced cornering stability, reduced wind sway and better bottom-out resistance

Specs

• Front lift: 2 in.
• Rear lift: 2 to 2.5 in. depending on vehicle weight
• Shock tune: heavy (vans over 9,100 lb)
• Shocks included: yes (Falcon 2.1). Struts not included
• Spring material: steel, blue coils, black leaf pack
• Max tire: 265/75R16 with minor fender trimming; 90 mm offset wheels recommended
• Recommended shop labour: 8.25 hours
• Warranty: 1 year shocks, 60 days finish, limited lifetime structural
• Shipping weight: 136 lb
• Country of origin: USA
• Part number: 7213-H

Notes

• Single rear wheel vans only.
• 2015-2017 vans require the Motorcraft AD1145 upper strut mount and drilling the mount holes to 10 mm.
• Bilstein B6 struts are not included with AWD systems; their added length can cause CV boot failure.
• The van must be professionally aligned after installation.
