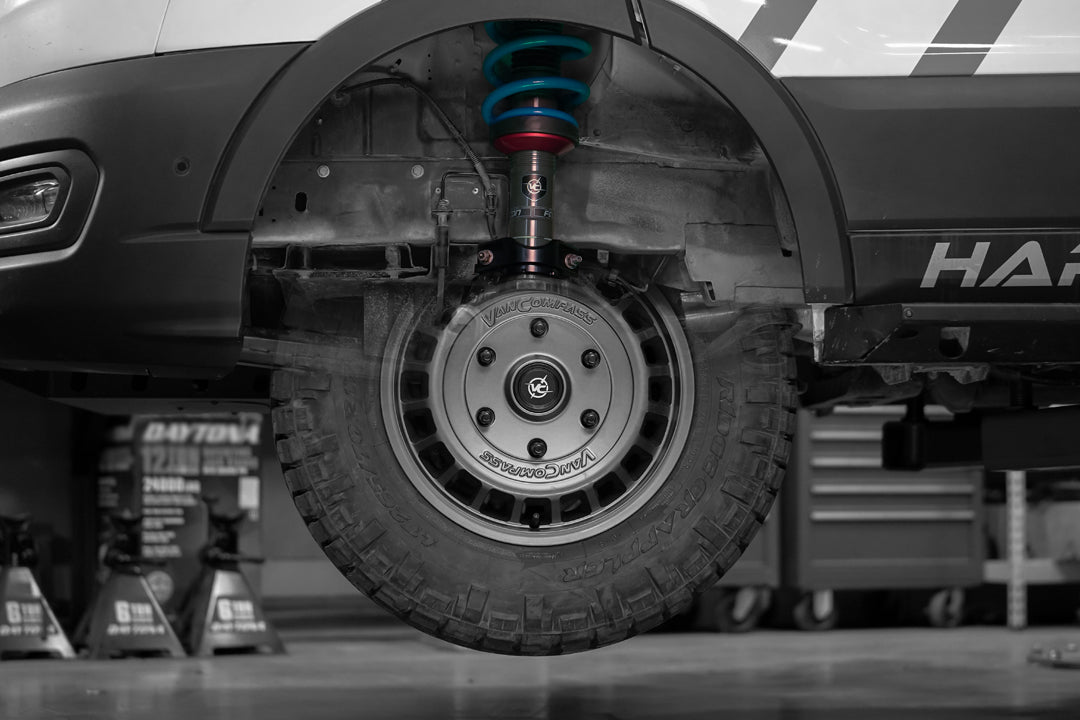

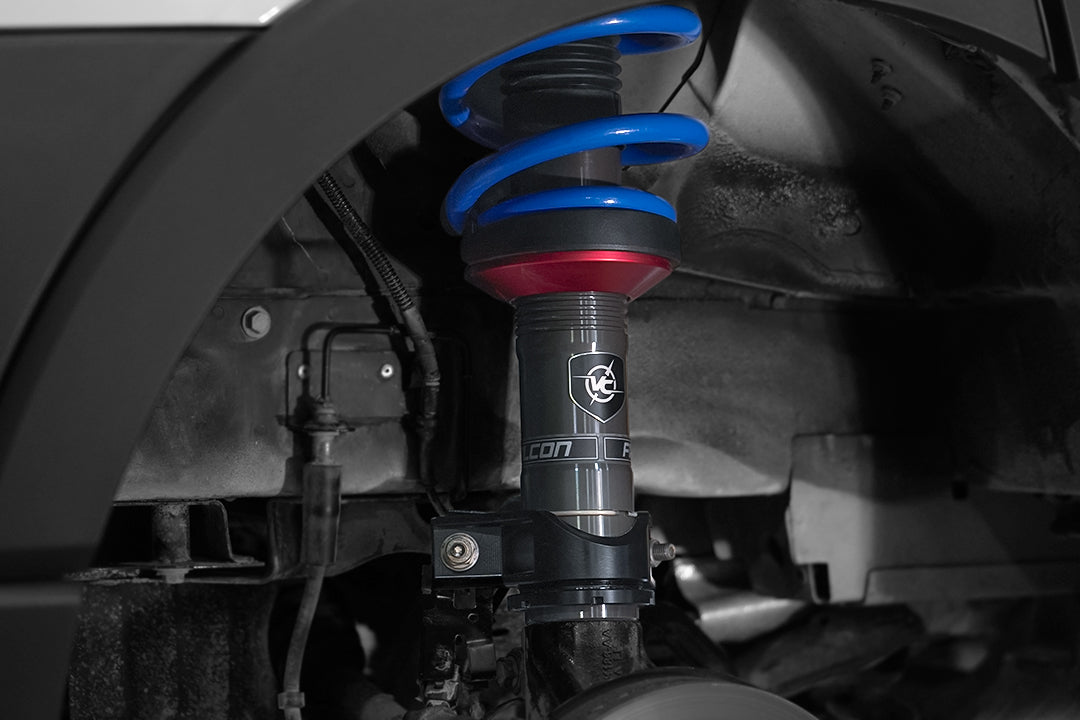

2015-2026 Transit Suspension Strut (1062)

The wait is over: this Van Compass Inverted Monotube Rally Strut brings a serious step forward in ride control, durability, and real-world performance for the Ford Transit. Developed over three years with Falcon, it uses the same proven inverted architecture brought to the Sprinter platform, now engineered specifically for the Transit. Compared to the factory strut, the inverted design increases load-bearing surface area while a larger damping piston and monotube construction tame big impacts, control top-out, and reduce on-road sway.

Features

• Inverted monotube architecture developed over three years with Falcon
• Larger damping piston manages big impacts and controls top-out
• Increased load-bearing surface area versus the factory strut
• Built around AWD-specific geometry to avoid added stress on the CV boots
• Works with the Van Compass Topo lift kit or on stock-height vans
• Adjustable preload grooves let installers fine-tune ride height during setup
• Each kit includes new sway bar links and updated anti-rotation brackets; sold as a matched pair

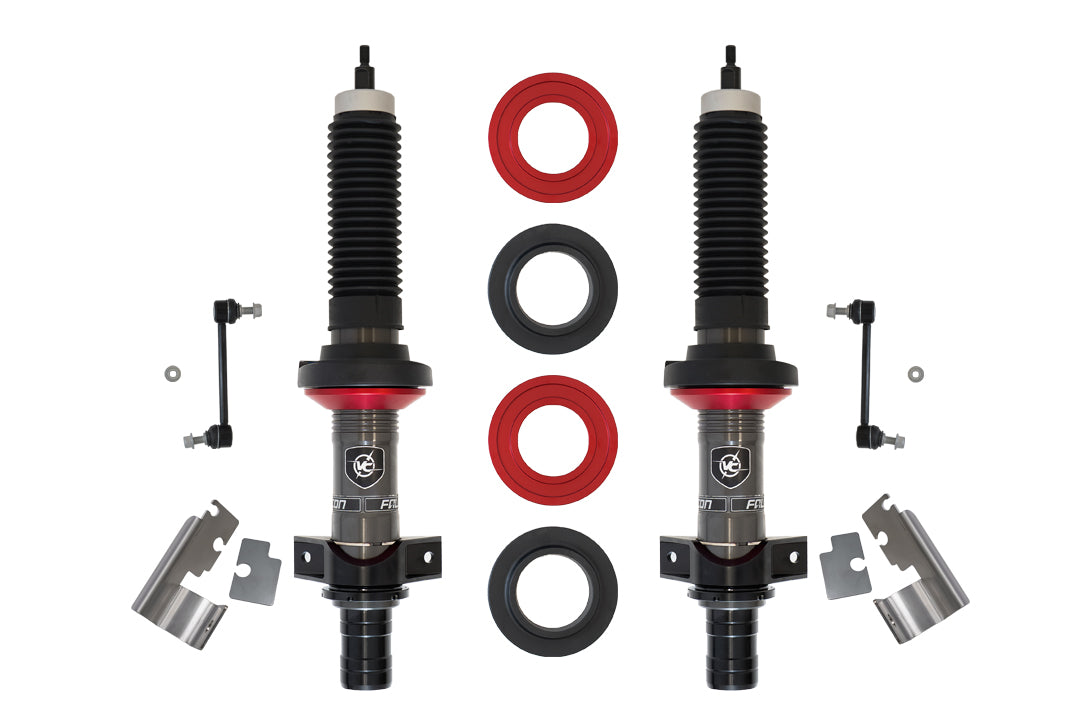

Included Components

• Inverted Monotube Rally Struts (Pair)
• Sway Bar Links (Pair)
• Coil Spring Mounting Hardware (Spring sold separately)
• Upper Strut Mount not included, re-use factory

Important Notes

• Motorcraft AD1110 strut bearing REQUIRED on 2024-newer vans.
• Upper strut mount not included, re-use OE part. Recommend using Motorcraft AD1110 if replacing worn strut mounts.
• Coil springs NOT included.

Labor Time

Recommended shop labor time: 5 hours.

Specifications

• Grade Type: Performance
