2015-2026 Transit Topo 2.0 Front and Rear Lift Kit (7097)

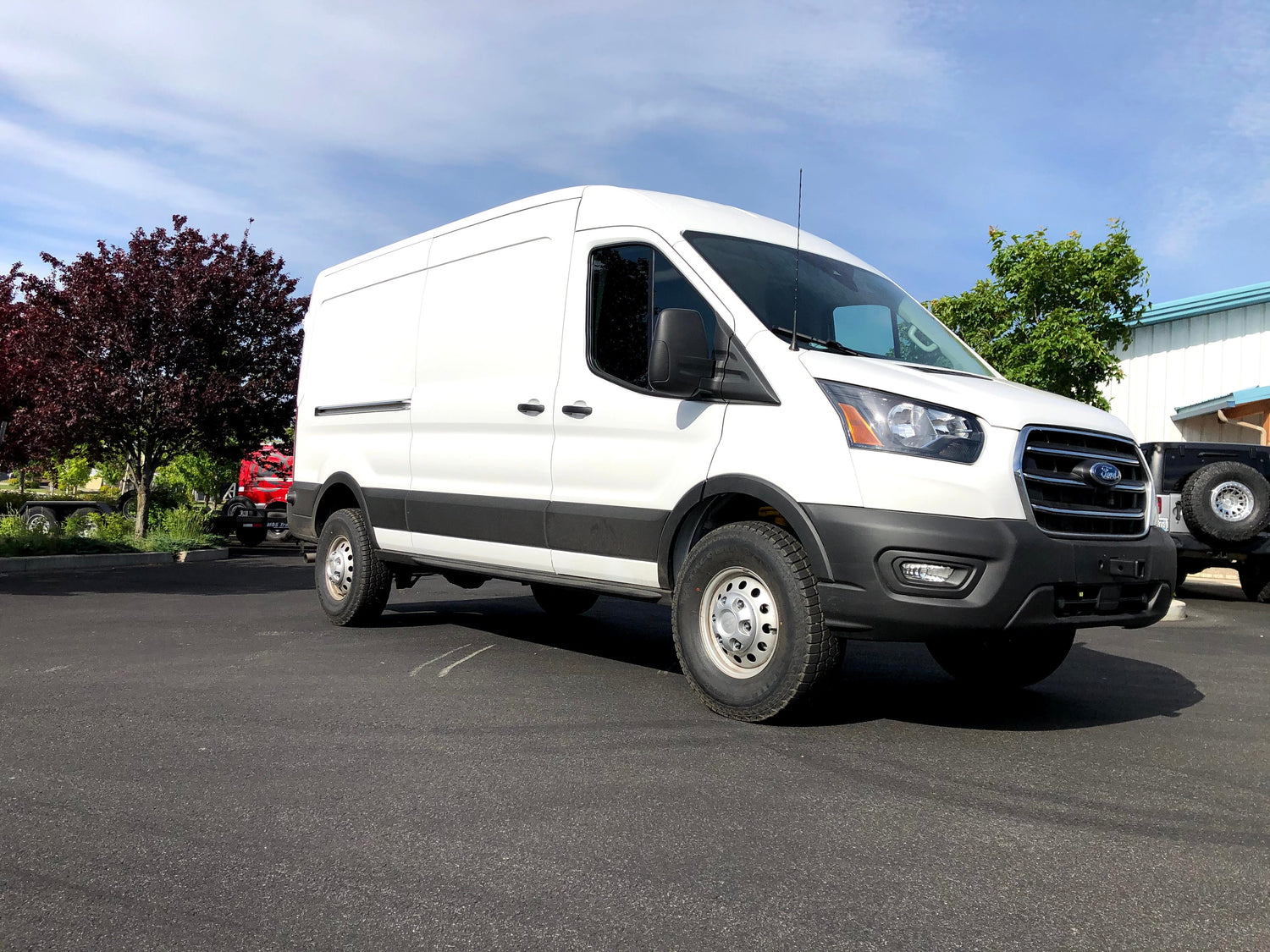

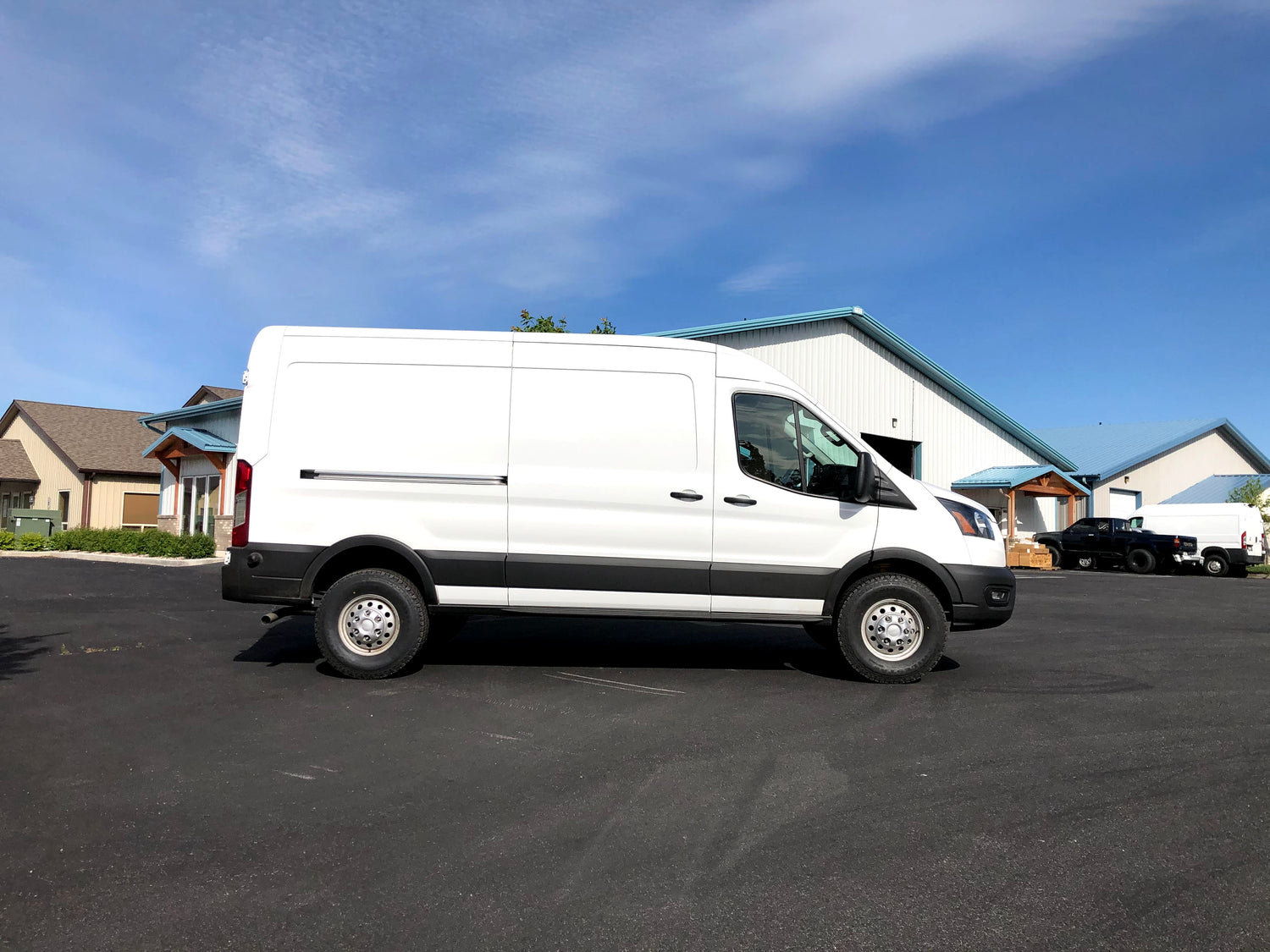

Lift your 2015-2026 Transit a true 2" while keeping the plush, factory-quality ride you rely on. The Van Compass Topo 2.0 front and rear lift kit pairs a spring-rate-preserving 1" lift coil with a 3/4" camber- and caster-correcting strut spacer, so your alignment stays in spec and critical components stay protected. It fits RWD and AWD models with single or dual rear wheels.

Features

• True 2" of lift, compatible with RWD and AWD, single or dual rear wheel
• 1" lift coil retains factory spring rate for an OE-quality ride
• 3/4" strut spacer with built-in camber and caster correction keeps alignment in spec
• Protects control arm bushings, tie rod ends, and CV shafts
• Front sway bar link extensions included
• Rear block works with any factory spring combination to match front height
• Pairs with upgraded struts (Falcon Monotube Rally or Bilstein B6) and adjustable lower control arms

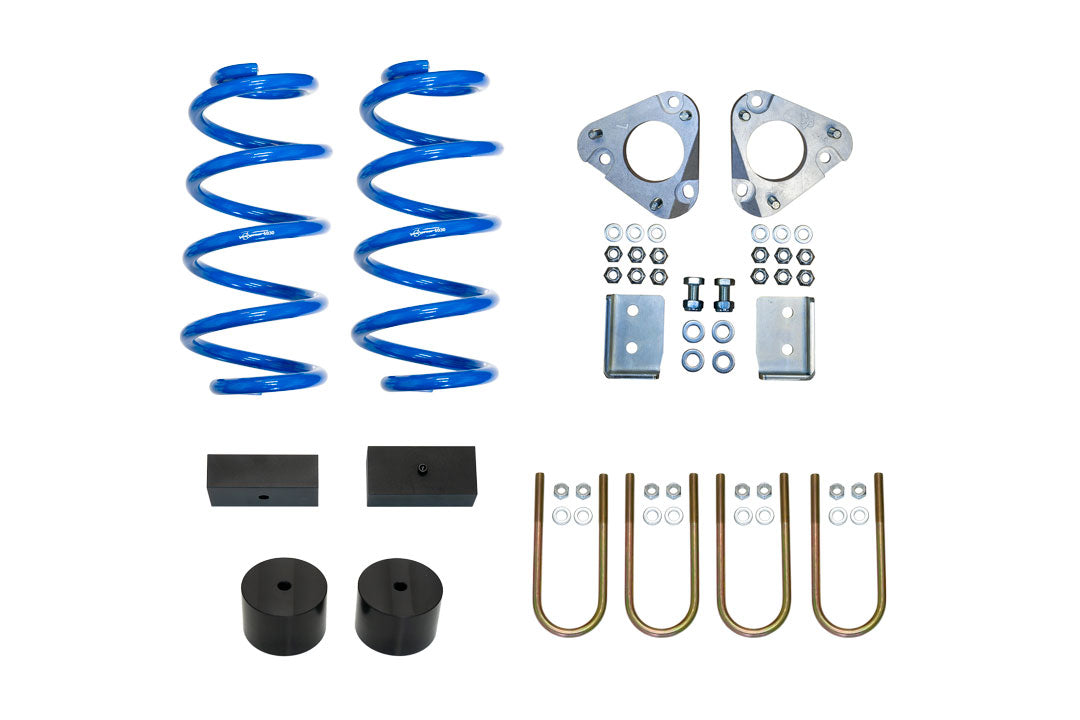

Included Components

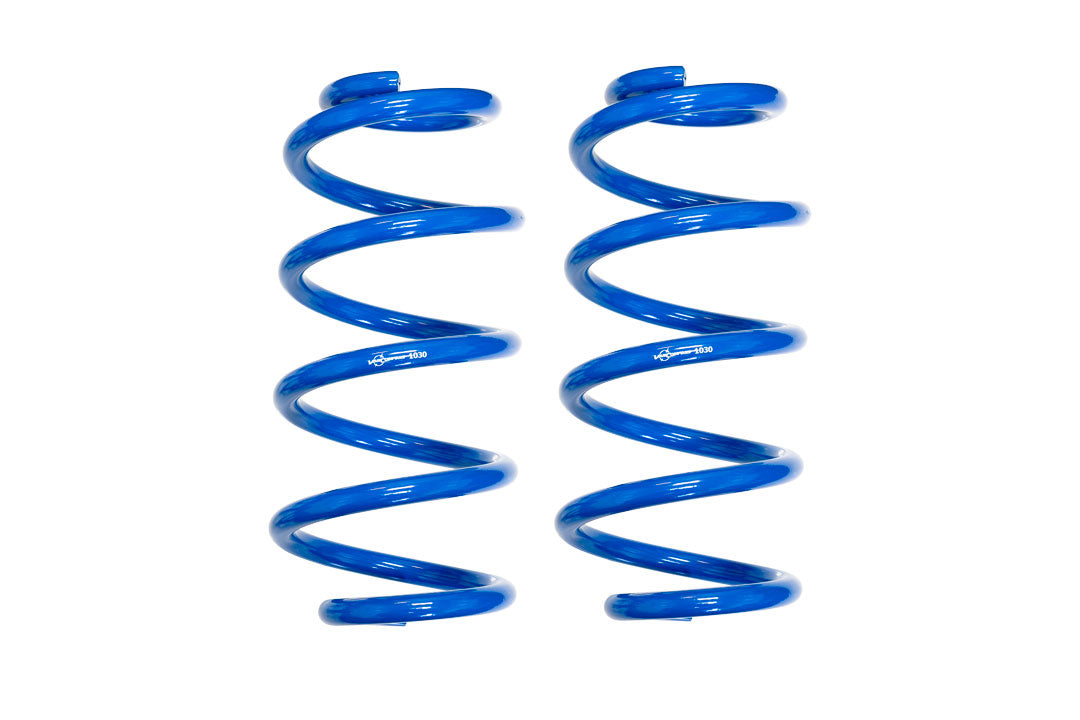

• Front 1" lift coil springs
• Front camber correction bracket
• Front sway bar relocation brackets

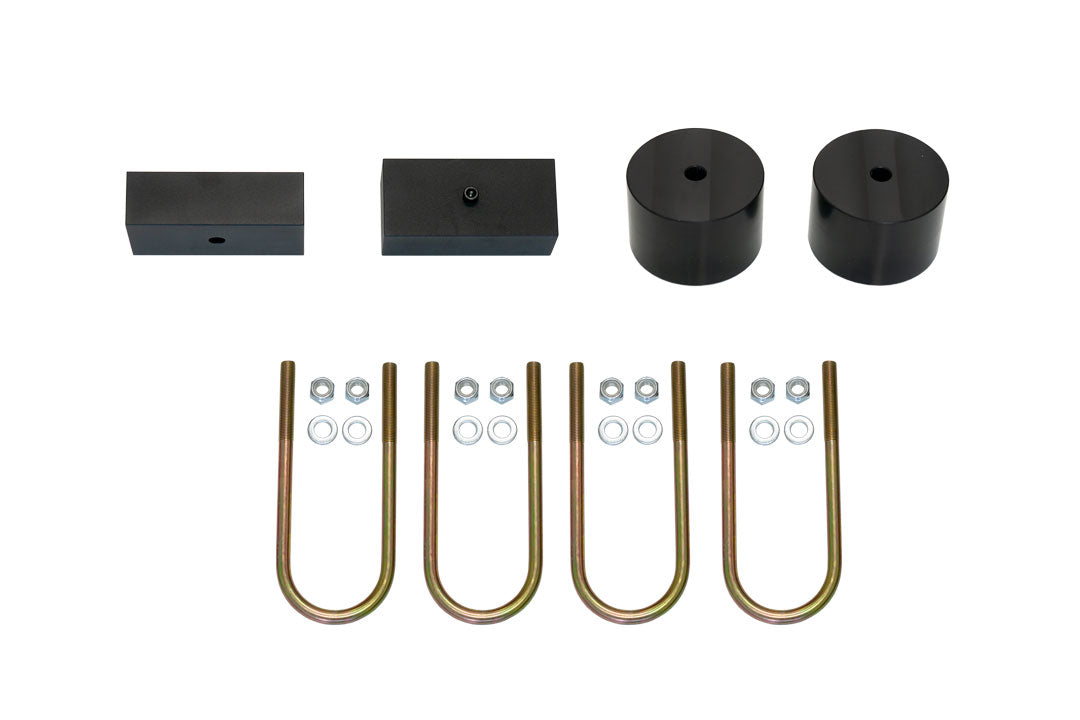

• 2" rear lift block
• 2" rear bump stop spacer
• All necessary hardware

Important Notes

• Up to 265/75R16 Tire
• 45 mm Offset Wheels Recommended
• Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.
• 2015-17 VANS REQUIRE MOTORCRAFT AD1145 UPPER STRUT MOUNT AND DRILLING HOLES TO 10MM

Installation Instructions

• 2015+ Transit Topo Front Kit Installation Instructions
• 2015+ Transit Topo Rear Kit Installation Instructions

Labor Time

Recommended shop labor time: 8 hours.

Specifications

• Maximum Lift: 2.0 IN
• Maximum Lift Front: 2 IN
• Maximum Lift Rear: 2 IN
