2015-2026 Transit Topo 2.0 Front Leveling Kit (7089)

The Van Compass Topo 2.0 front package delivers a true 2" of lift to your Ford Transit while keeping your alignment in spec and the ride plush. A 1" lift coil retains factory spring rate for OE-quality comfort, while a 3/4" strut spacer with built-in camber and caster correction protects critical components like control arm bushings, tie rod ends and CV shafts. It's compatible with RWD and AWD models in single or dual rear wheel configurations.

Features

• True 2" of front lift, compatible with RWD and AWD, single or dual rear wheel
• 1" lift coil retains factory spring rate for a plush, OE-quality ride
• 3/4" strut spacer with built-in camber and caster correction keeps alignment in spec
• Protects control arm bushings, tie rod ends and CV shafts
• Front sway bar link extensions included
• Pairs with upgraded struts such as Falcon Monotube Rally Struts or the Bilstein B6, plus adjustable lower control arms for sharper handling

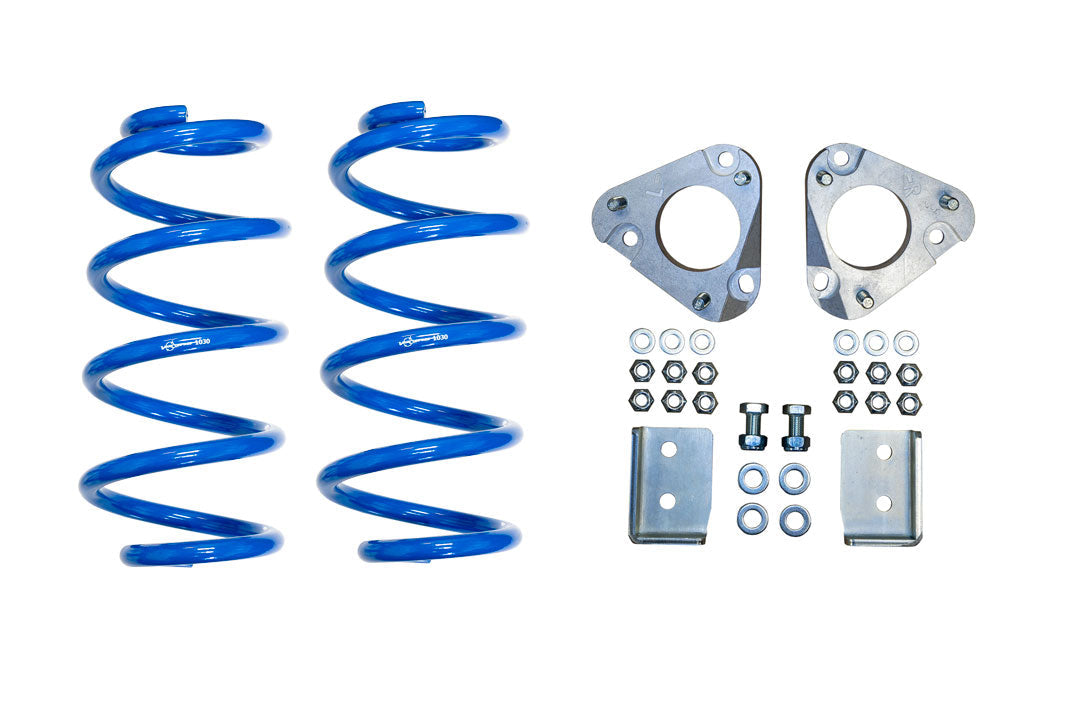

Included Components

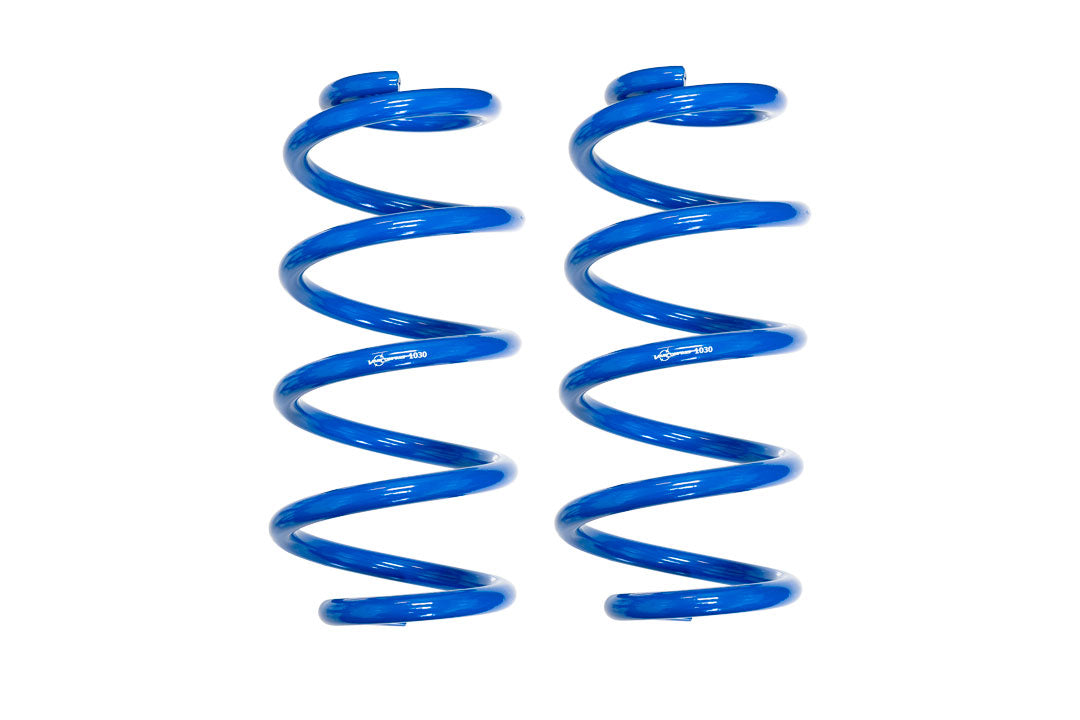

• Front 1" lift coil springs

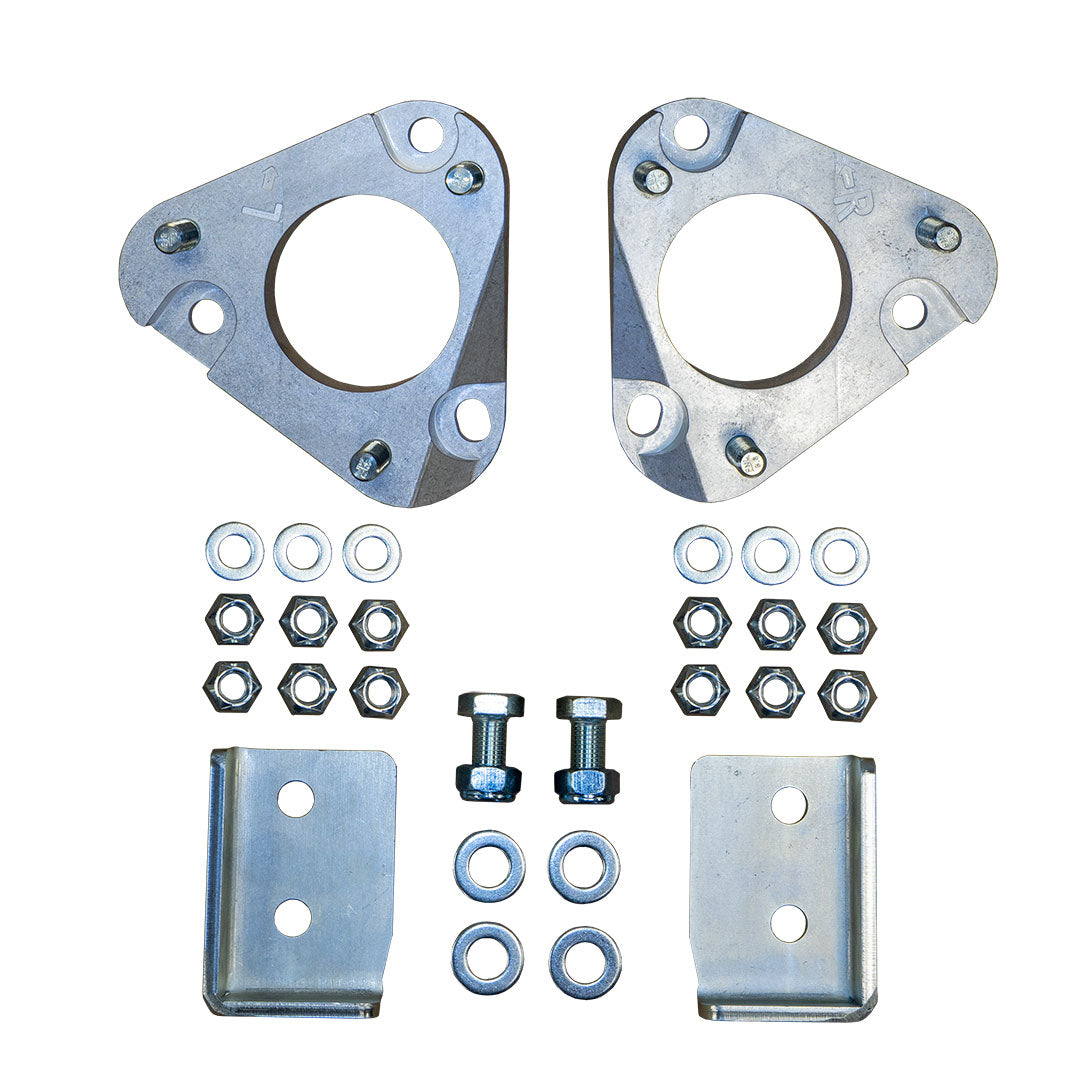

• Front camber correction bracket
• Front sway bar relocation brackets

Important Notes

• Up to 265/75R16 Tire
• 45 mm Offset Wheels Recommended
• Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.
• 2015-17 VANS REQUIRE MOTORCRAFT AD1145 UPPER STRUT MOUNT AND DRILLING HOLES TO 10MM
• Bilstein B6 struts are not recommended on AWD vans. The B6 strut is designed with a higher spring seat, and the added lift results in decreased CV boot life. The CV joints will still function fine, but the boots typically experience a shorter service life before needing repair.

Labor Time

Recommended shop labor time: 6 hours.

Specifications

• Grade Type: Performance
• Maximum Lift: 2.0 IN
• Maximum Lift Front: 2 IN
