2016-2021 Tucson Sportage 2.0" SST Lift Kit (69-7520)

The ReadyLIFT 2.0-inch SST Lift Kit for the 2016-2021 Hyundai Tucson and 2017-2021 Kia Sportage is a high-quality leveling solution designed to increase ground clearance and off-road capability for popular CUV models. This kit features heavy-duty laser-cut steel front strut extensions and CNC-machined aircraft-grade billet aluminum rear coil spring spacers, providing an equal 2-inch lift to both the front and rear. By utilizing front sway bar drop extensions, this bolt-on system allows owners to install larger tires and aggressive wheel offsets while maintaining factory-standard driving characteristics and ride quality.

Features

• Provides a balanced 2.0-inch lift for both the front and rear axles.
• Includes heavy-duty laser-cut fabricated steel front strut extensions for maximum durability.
• Features CNC-machined aircraft-grade 6061-T6 billet aluminum rear coil spring spacers.
• Includes front sway bar drop extensions to retain the use of factory end links.
• Increases ground clearance for improved performance in varied terrain and backcountry conditions.
• Maintains factory-standard ride quality and essential driving characteristics.
• Completely bolt-on installation with no cutting or welding required.
• Enables fitment of up to a 245/65-17 tire on an 8-inch wide wheel with a +38 offset without rubbing.

Notes

• A professional wheel alignment is required after installation to ensure optimal handling and safety.
• Headlamp aim must be checked and adjusted for safety following the change in ride height.
• Advanced Driver Assistance Systems (ADAS) should be recalibrated to maintain proper monitoring and function.
• Installation by a certified mechanic is recommended to ensure all components are properly secured.
• Ride quality is engineered to stay smooth, though larger 10-ply aftermarket tires may increase perceived stiffness.

Compatibility Notes

• Fits 2016–2021 Hyundai Tucson models (AWD and FWD).
• Fits 2017–2021 Kia Sportage models (AWD and FWD).
• Not compatible with models equipped with factory rear air suspension.

Specs

• Front Lift Height: 2.0 inches.
• Rear Lift Height: 2.0 inches.
• Max Tire Size: 245/65-17 (approx. 29.5 inches).
• Material: Fabricated Steel (Front) and Billet Aluminum (Rear).

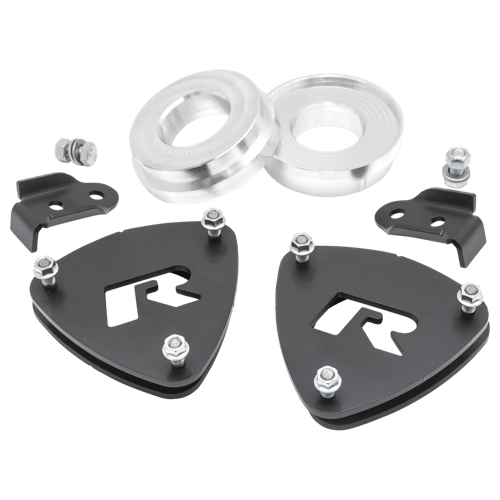

• Kit Contents: Two front strut spacers, two rear coil spring spacers, two sway bar relocation brackets, and hardware.
