2016-2021 Tundra 4.5" Lift Kit with FOX 2.0 Performance Shocks (BDS819FS)

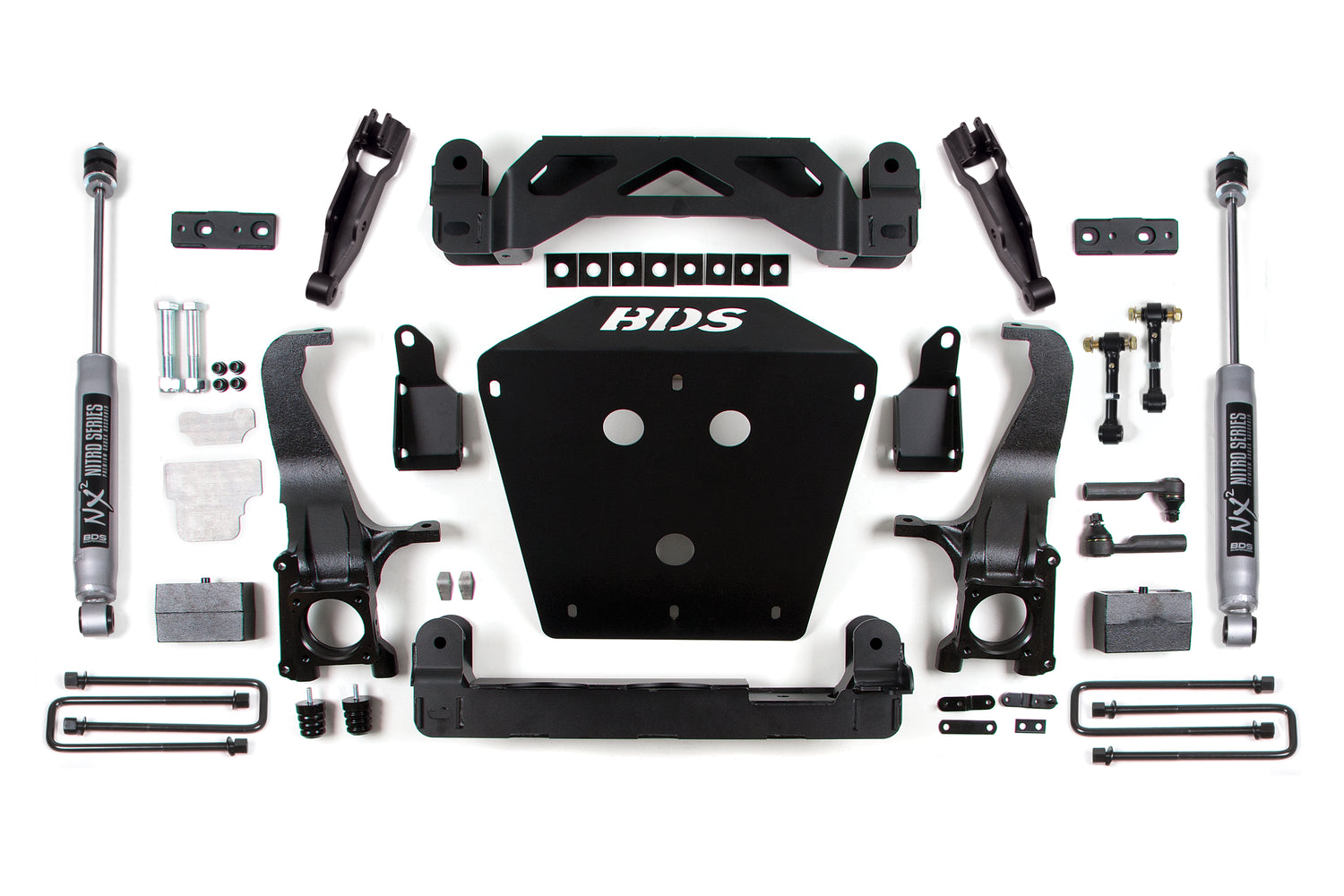

Step up the 2016-2021 Toyota Tundra 4WD with this BDS 4.5" suspension lift kit, with clearance for up to 35" tires. The high-clearance front uses a lower strut extension, 1/4" steel crossmembers, multipiece differential relocation brackets, heavy duty skid plates, and CNC-machined ductile iron steering knuckles with replacement tie rod ends for ESC compatibility, plus sway bar drops, bump stop extensions, and brake line brackets. The rear runs heavy duty cast steel lift blocks, a brake line bracket, longer u-bolts, and your choice of NX2 Nitro or FOX 2.0 IFP Performance Series shocks. No strut disassembly required.

Features

• No strut disassembly required
• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• BDS NX2 gas or FOX Performance Series IFP gas shocks for improved ride and offroad performance
• FOX 2.0 shock: 2" Impact extruded aluminum body, IFP monotube design, 6061-T6 mounting ends, 5/8" hard chrome shaft, application-specific valving, clear anodized finish
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4.5 inch
• Rear Lift Height: 3 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5.5

Notes

• Will NOT work on TRD Pro (Bilstein and Fox piggyback strut) models.
• Requires frame bracket modification and welding.
• Stock 18" wheels cannot be installed. Factory 20" wheels with more than 6.25" backspacing cannot be installed.
• Models with two-piece rear drive line require rear drive shaft modification.
• Models equipped with 6 piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface.

Includes

• BDS018319, 2007-2021 Toyota Tundra 3in Rear Block Kit (UPC 658848614462)
• BDS028454, 2007-2021 Toyota Tundra Box Kit (5of5) (UPC 658848616183)
• BDS028701, 2007-2021 Toyota Tundra Box Kit (2of5) (UPC 658848616275)
• BDS028702, 2007-2021 Toyota Tundra Box Kit (3of5) (UPC 658848616282)
• BDS028703, 2007-2021 Toyota Tundra Box Kit (4of5) (UPC 658848616299)
• BDS028710, 2016-2021 Toyota Tundra Box Kit (1of5) (UPC 658848616312)
• FOX98224952, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
