2016-2021 Tundra 5" Lift Fox 2.5 PES Coilover (BDS819FPE)

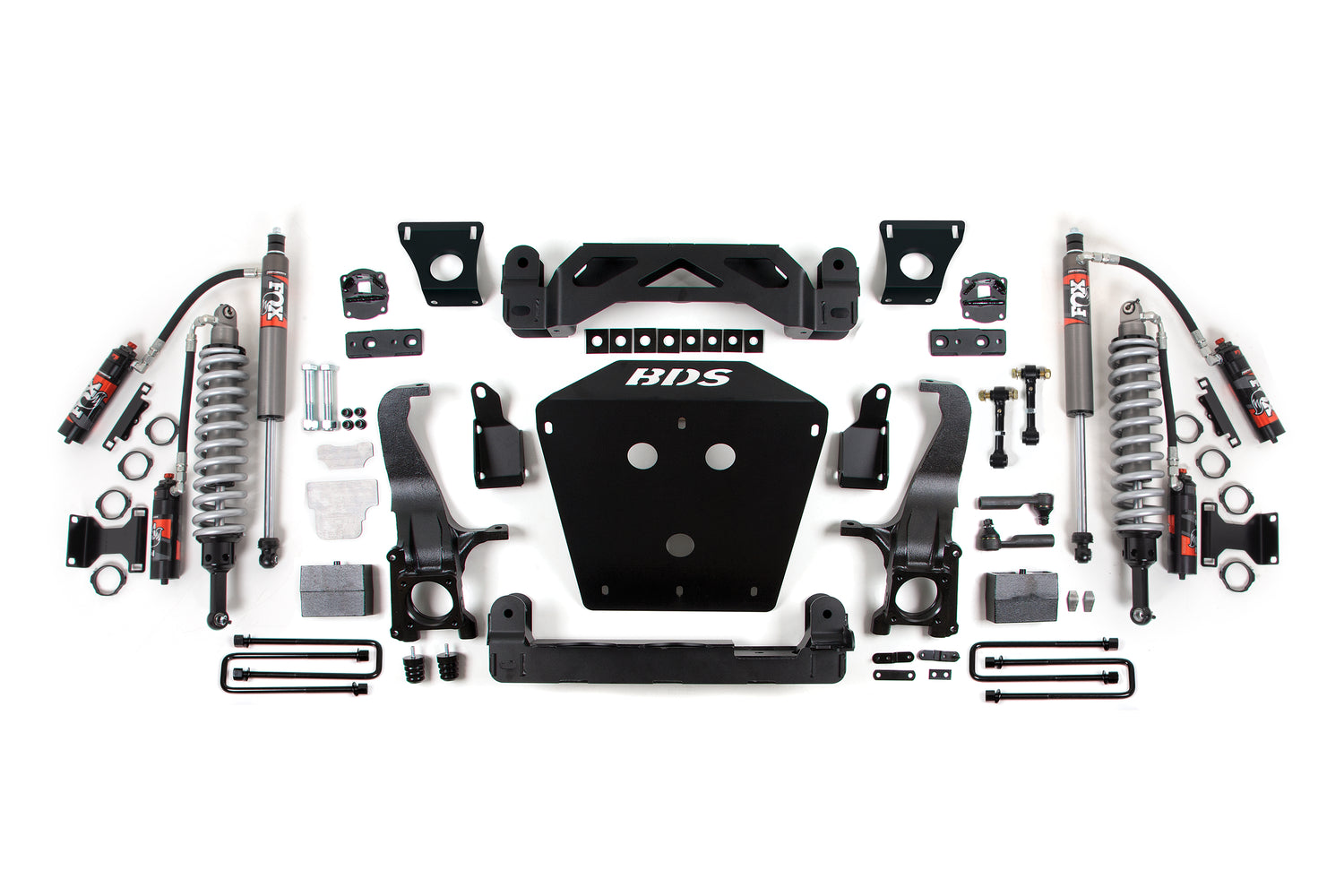

Elevate your Tundra with this comprehensive 5" suspension lift system from BDS Suspension. Featuring Fox Performance Elite Coil Overs and rear shocks paired with precision-engineered upper control arms and steering knuckles, this kit optimizes suspension geometry for enhanced articulation and stability. The combination delivers increased ride height for better ground clearance while maintaining responsive handling both on pavement and challenging terrain. Built for trucks that demand serious capability without compromise.

Features

• Includes BDS Upper Control Arms with 1.5" tubular steel construction and indexed ball joints for maximum travel with factory style rubber bushings
• Steering knuckles maintain factory steering geometry and increase ground clearance
• Fox Performance Elite Coil Overs and Rear Shocks provide advanced damping technology for superior ride comfort and control
• Transforms the Toyota Tundra with a commanding stance and aggressive off-road capability
• Durable and engineered for both off-road performance and on-road comfort
• heavy duty 1/4-inch thick laser cut perfect fit crossmembers

Shock Features

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Specifications

• Front Lift Method : Coil-Over
• Front Lift Height : 5"
• Rear Lift Method : Block
• Rear Lift Height : 3"
• Shocks Included : Yes
• Lift Height : 4-5.5"

Tire Fitment

• 35 x 12.5 with 17 x 9 and 5.5 in. Backspace
• 35 x 12.5 with 18 x 9 and 5.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5.5 in. Backspace
