2016-2021 Tundra 5" Lift Fox 2.0 Performance Series Coilover (BDS819FPS)

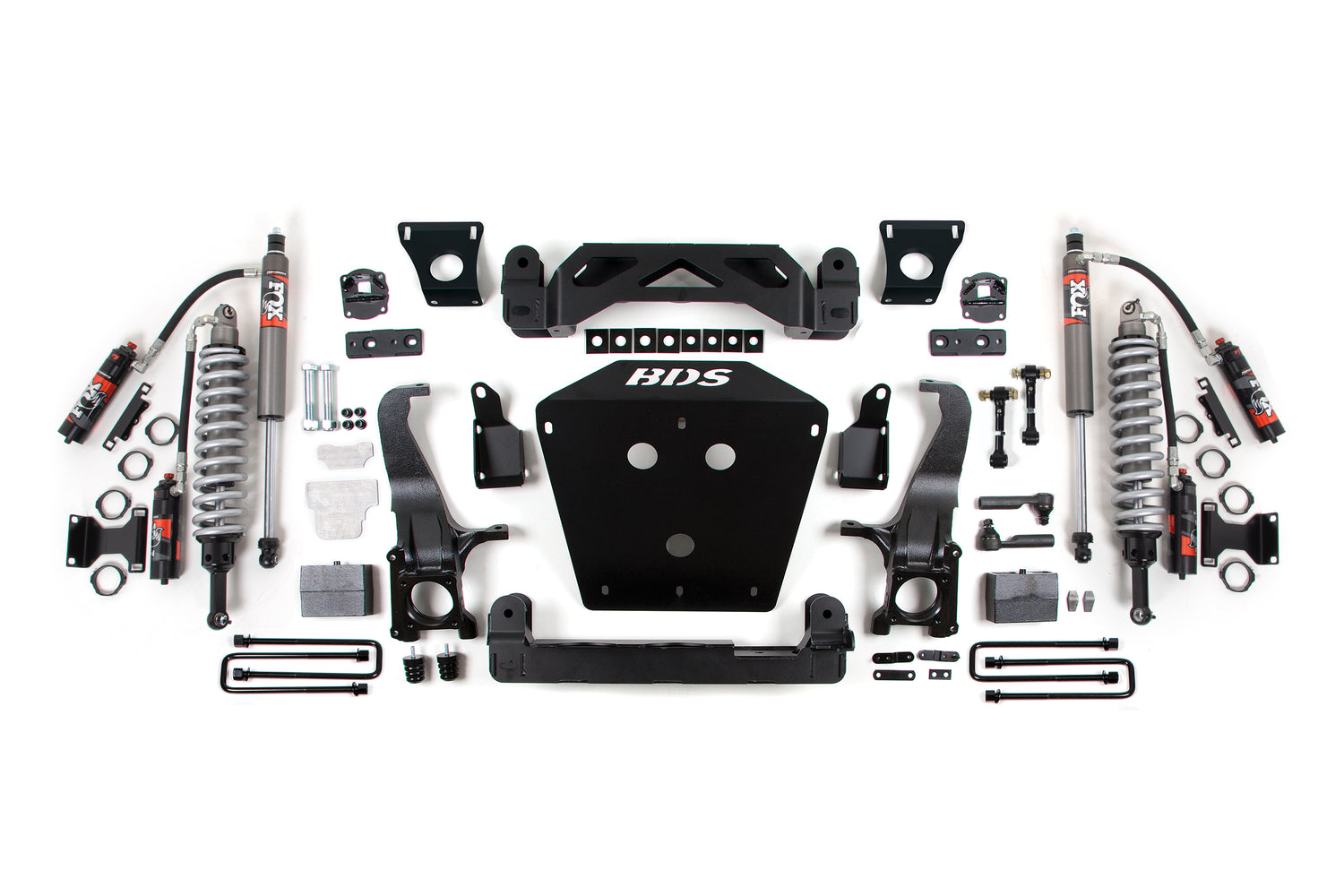

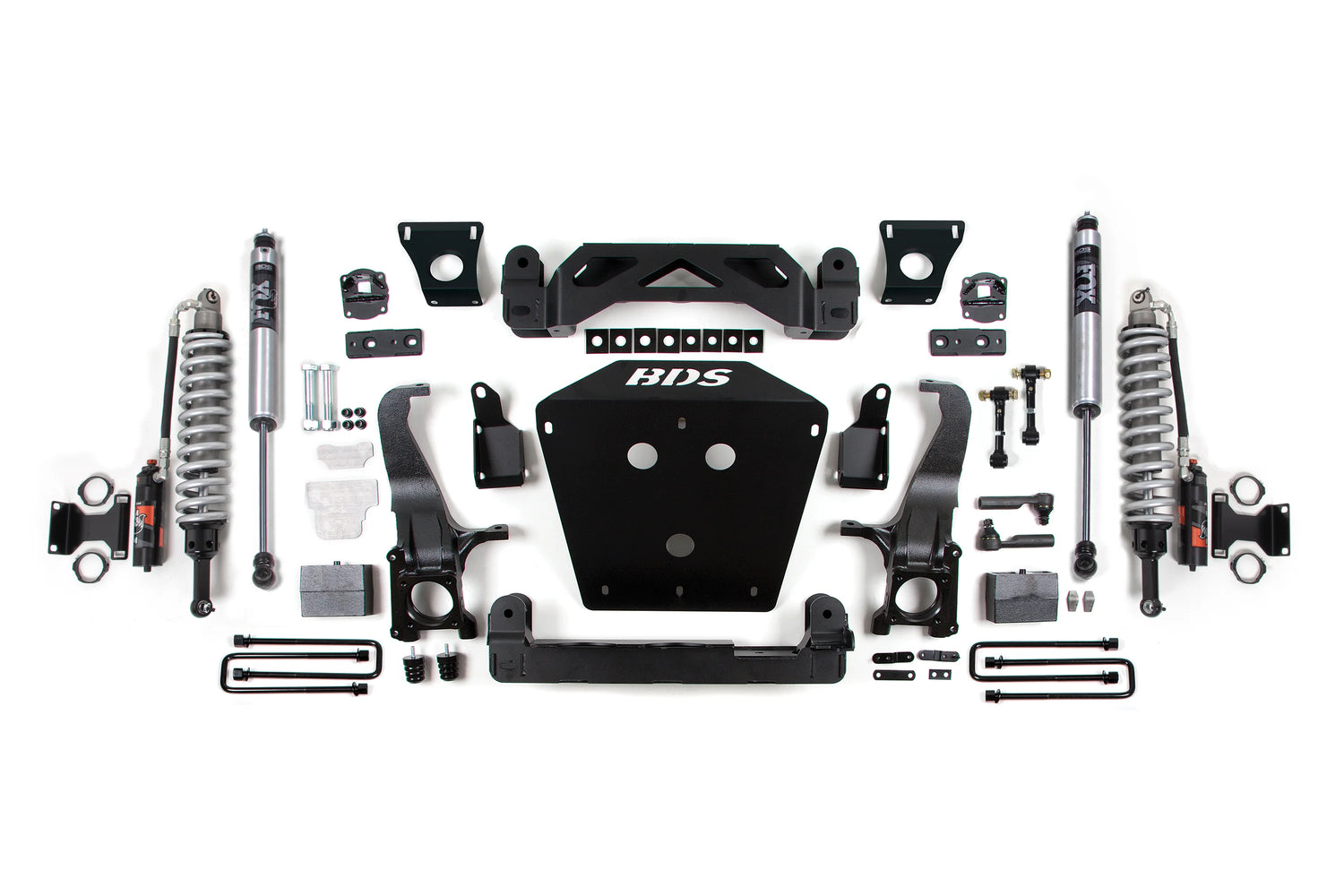

Unleash the full potential of your Toyota Tundra with the 5-inch Lift Kit, meticulously engineered to deliver uncompromising performance on and off the road. This kit combines BDS Upper Control Arms, Steering Knuckles, and Fox Performance Elite Coil Overs and Rear Shocks, setting a new standard for durability, handling, and style. BDS Upper Control Arms ensure optimal suspension geometry, enhancing wheel travel and articulation for seamless off-road navigation. Constructed from robust materials, they offer unmatched strength to tackle rugged terrain with confidence. Steering Knuckles are precision-engineered to maintain factory steering geometry, ensuring precise handling and reducing stress on components. This upgrade allows for increased ground clearance and accommodates larger tires, perfect for conquering any obstacle in your path.

Features

• Highly engineered upper control arms featuring 1.5" tubular steel construction with indexed ball joint to provide maximum travel with factory style rubber bushings which provide long lasting maintenance free operation.

• High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance HD skid plate system improved offroad protection.
• Multipoint differential relocation brackets to secure the front axle and improve CV angles.
• FOX performance series IFP gas rear shocks to improved ride and offroad performance.
• Factory Protection Plus drivetrain warranty included

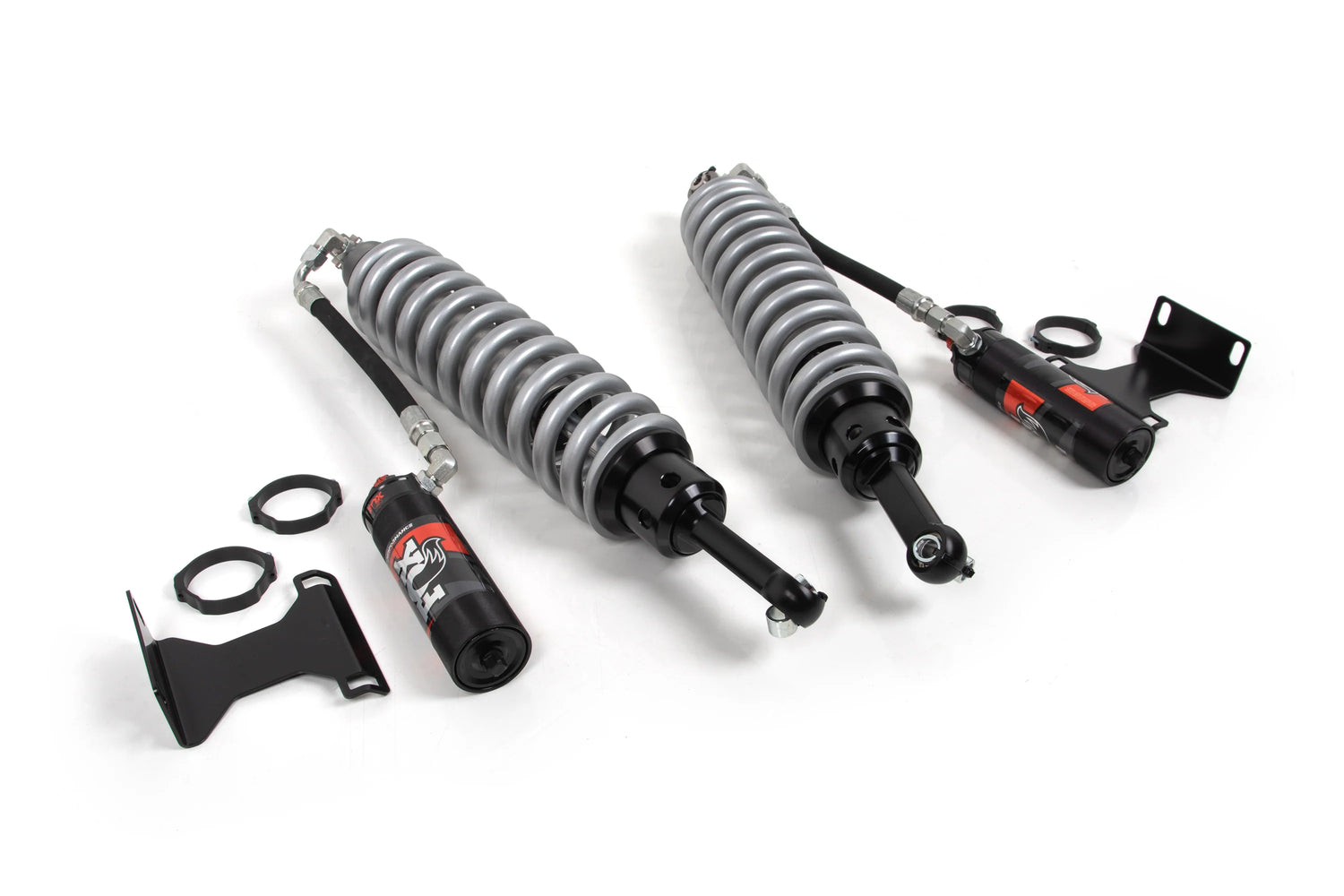

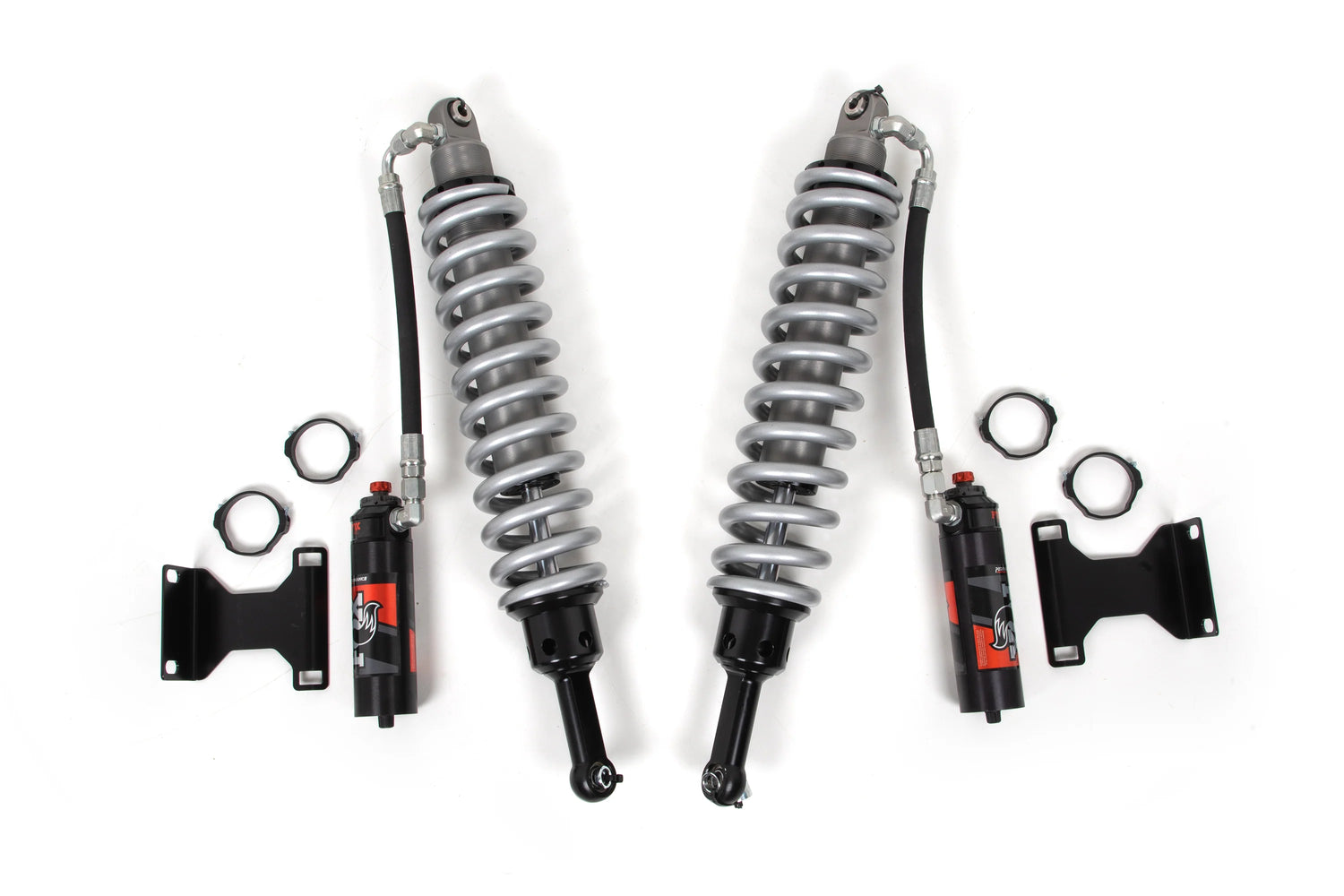

Shock Features

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specifications

• Front Lift Method : Coil-Over
• Front Lift Height : 5"
• Rear Lift Method : Block
• Rear Lift Height : 3"
• Shocks Included : Yes
• Lift Height : 4-5.5"

Tire Fitment

• 35 x 12.5 with 17 x 9 and 5.5 in. Backspace
• 35 x 12.5 with 18 x 9 and 5.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5.5 in. Backspace
