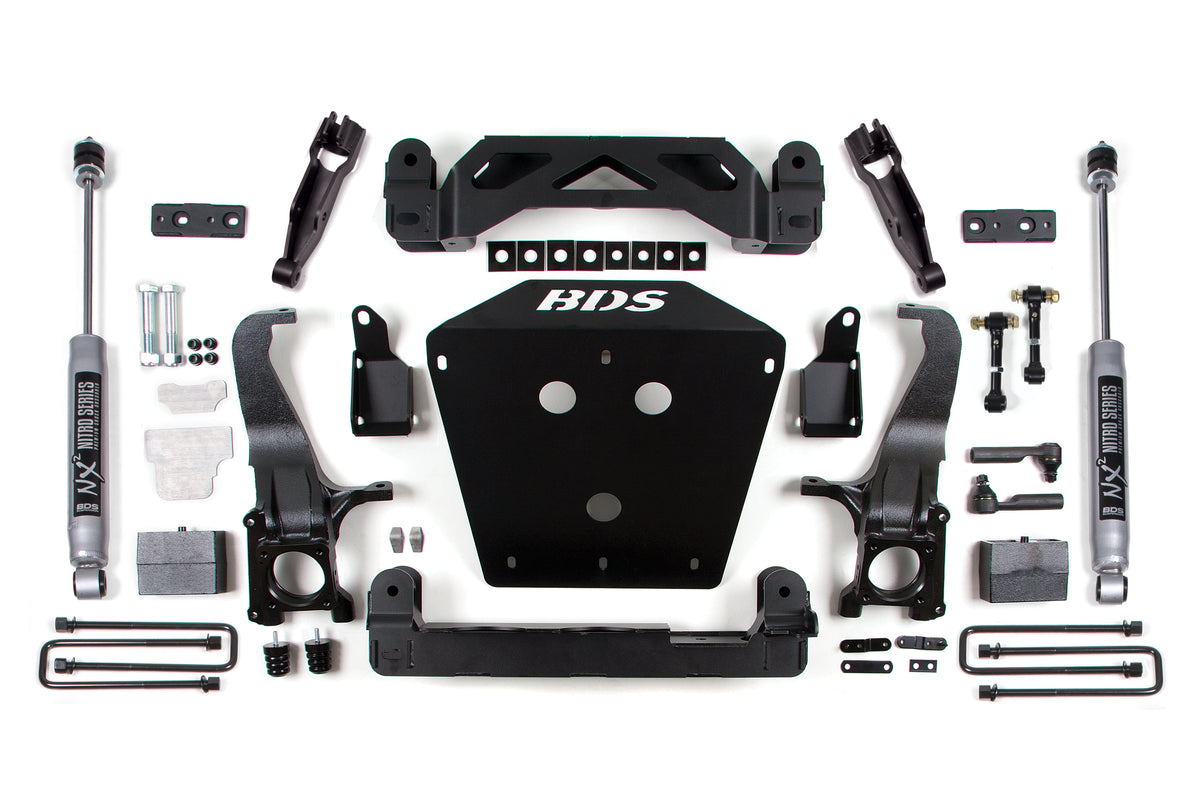

2016-2021 Tundra 7" Lift Kit with FOX 2.0 Performance Shocks (BDS818FS)

BDS steps up the performance and capability of the 2016-2021 Toyota Tundra trucks with 7 Inch lift kit suspension system. Get the Tire clearance and attitude you Inch're looking for with the 7 Inch Lift Kit Suspension System for your Toyota Tundra.

Features

• High clearance design maximizes ground clearance.
• Robust steering knuckles maintain ESC system compliance.
• Full width belly skidplate for added protection.
• Allows fitment of up to 37 Inch Tires with 7 Inch systems.
• Choice of FOX 2.0 Performance or NX2 Nitro shocks for improved capability.
• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Blocks
• Shocks Included: Yes
• Front Lift Height: 7 Inch
• Rear Lift Height: 4 Inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5, 37x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5.5/6.25

Notes

• Requires frame bracket modification and welding.
• No strut dissassembly required.
• Stock 18 Inch wheels can not be installed. factory 20 Inch wheels with more than 6.25 Inch backspacing can not be installed.
• Models with two piece rear drive line would require rear drive shaft modification.
• Models equipped with 6 piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface.
• Will NOT work on TRD Pro (Bilstein anf Fox Piggback Strut) models.

Includes

• BDS018409, 2007-2021 Toyota Tundra 4 Inch Rear Block Kit (UPC 658848614486)
• BDS028701, 2007-2021 Toyota Tundra Box Kit (2of5) (UPC 658848616275)
• BDS028702, 2007-2021 Toyota Tundra Box Kit (3of5) (UPC 658848616282)
• BDS028703, 2007-2021 Toyota Tundra Box Kit (4of5) (UPC 658848616299)
• BDS028704, 2007-2021 Toyota Tundra Box Kit (5of5) (UPC 658848616305)
• BDS028710, 2016-2021 Toyota Tundra Box Kit (1of5) (UPC 658848616312)
• FOX98224952, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
