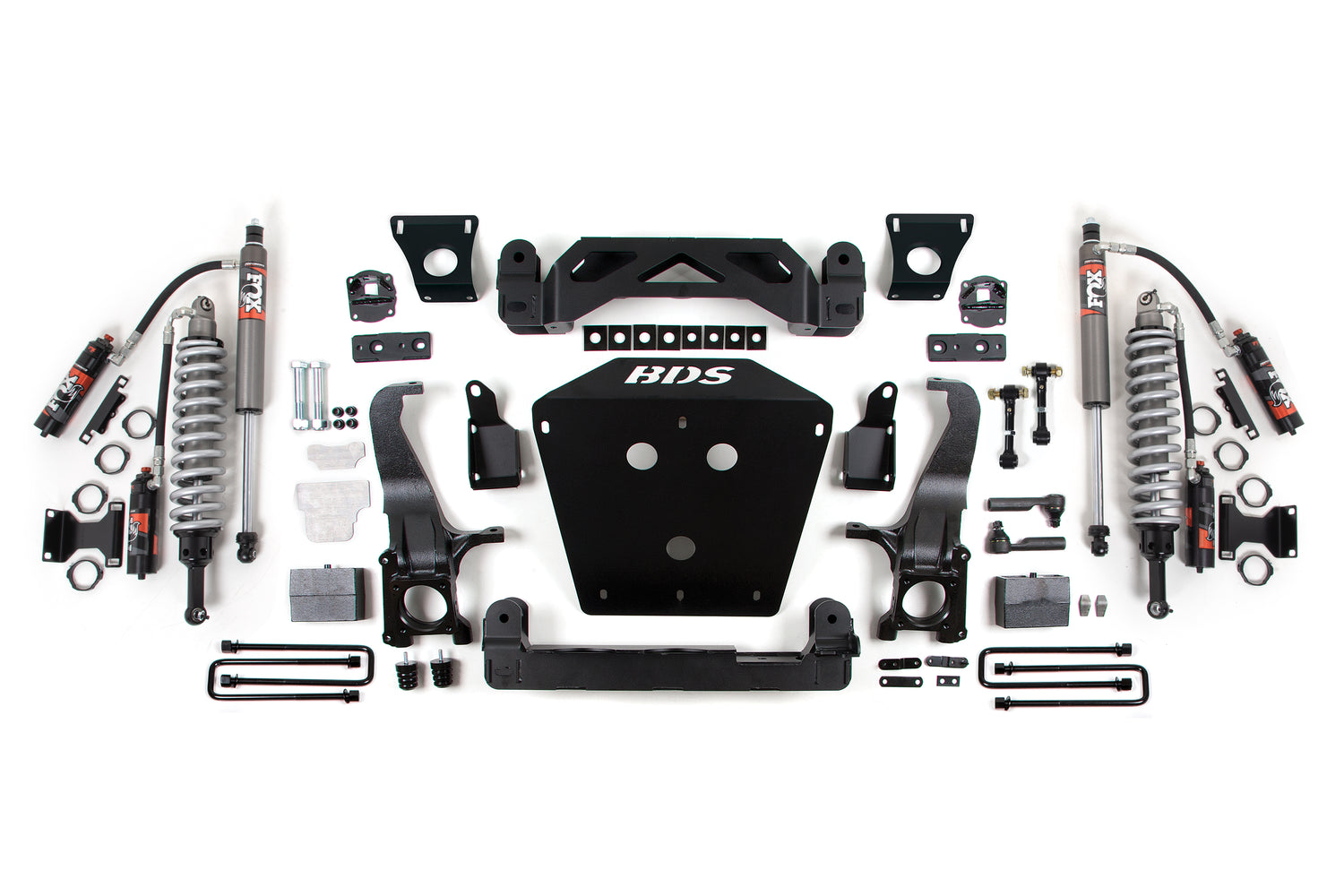

2016-2021 Tundra 7" Lift Fox 2.5 PE Coilovers & Rear Shocks (BDS818FPE)

Engineered for serious Tundra owners, this 7" lift system combines Fox 2.5 Performance Elite coilovers and matching rear shocks with precision-tuned BDS steering knuckles. The result is a suspension platform that delivers improved articulation over rough terrain, refined on-road manners, and the extra clearance needed for aggressive tires and obstacles. Built for trucks that work hard and play harder.

Features

• FOX 2.5 Performance Elite series adjustable coil overs for improved ride quality, performance, and capability.
• High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance.
• HD skid plate system improved offroad protection.
• Multipoint differential relocation brackets to secure the front axle and improve CV angles.
• FOX performance series IFP gas rear shocks to improved ride and offroad performance.
• Factory Protection Plus drivetrain warranty included


Shock Features

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Notes

• Requires frame bracket modification and welding.
• No strut disassembly required.
• Models with two piece rear drive line would require rear drive shaft modification
• Models equipped with 6 piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface.
• Will NOT work on TRD Pro (Bilstein and Fox Piggyback Strut) models.

Specifications

• Front Lift Method : Coil-Over
• Front Lift Height : 7"
• Rear Lift Method : Block
• Rear Lift Height : 4"
• Shocks Included : No
• Lift Height : 6-7.5"

Tire Fitment

• 35 x 12.5 with 17 x 9 and 5.5 in. Backspace
• 37 x 12.5 with 18 x 9 and 6.25 in. Backspace
• 37 x 12.5 with 20 x 9 and 6.25 in. Backspace
